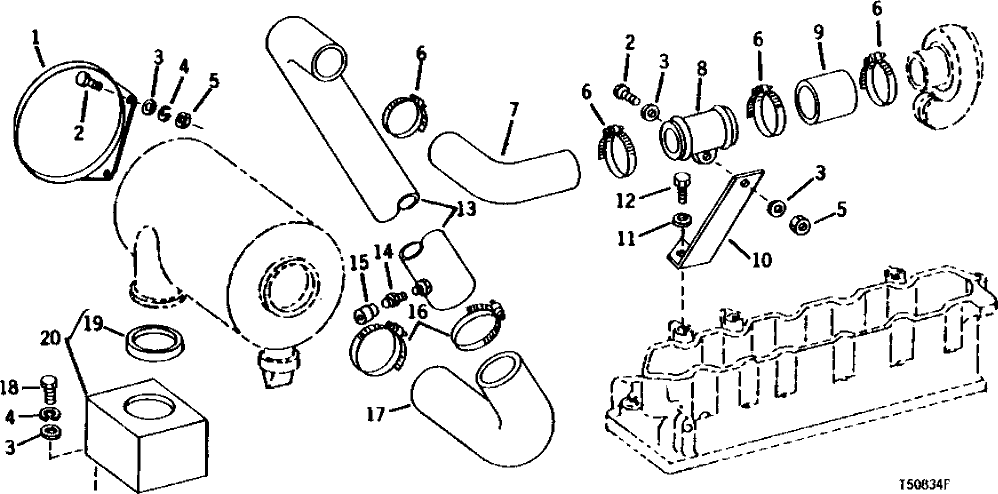

Запчасти John Deere 90 1 - AIR CLEANER PIPING 520 - ENGINE AUXILIARY SYSTEMS 5

1

AR29254

BAND

2шт.

2

19H3239

CAP SCREW

3/8" X 1-1/4"

5шт.

3

24H1304

WASHER

13/32" X 23/32" X 0.120"

9шт.

4

12H304

LOCK WASHER

3/8"

7шт.

5

14H812

NUT

3/8"

5шт.

6

AT37477

HOSE CLAMP

4шт.

7

T68425

HOSE

(SUB FOR T35917, THIS APPLICATION)

1шт.

8

T59728

TUBE

1шт.

9

R55582

HOSE

1шт.

10

BRACKET

( T59729 NO LONGER AVAILABLE)

1шт.

11

24H1368

WASHER

21/32" X 1-5/16" X 0.090"

1шт.

12

19H1916

CAP SCREW

5/8" X 1"

1шт.

13

AT57463

TUBE

1шт.

14

AR44361

FITTING

1шт.

15

AT25983

AIR RESTRICTION INDICATOR

1шт.

16

AT53438

HOSE CLAMP

2шт.

17

HOSE

( T57543 USE IF AVAILABLE)

1шт.

18

19H2676

CAP SCREW

3/8" X 1"

3шт.

19

T57541

ISOLATOR

1шт.

20

AIR DUCT

WITH ISOLATOR ( AT55446 USE IF AVAILABLE)

1шт.
