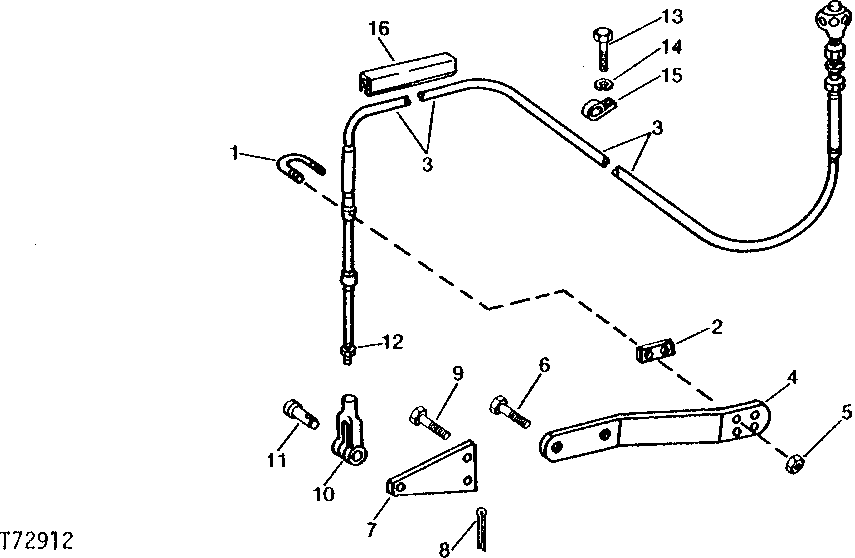

Запчасти John Deere 90 1 - THROTTLE CABLE AND BRACKET 515 - ENGINE AUXILIARY SYSTEMS 5

1

T13988

U-BOLT

1шт.

2

T15021

STRAP

1шт.

3

AT48991

PUSH PULL CABLE

1шт.

4

T57748

BRACKET

1шт.

5

14H786

NUT

1/4"

2шт.

6

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

7

T57747

LEVER

1шт.

8

11M7077

COTTER PIN

1.600 X 25 MM, (USE WITH L4667T)

1шт.

11M7082

COTTER PIN

2.500 X 25 MM, (USE WITH R662R)

1шт.

9

19M7077

CAP SCREW

M6 X 20

2шт.

10

M3742T

YOKE

1шт.

11

L4667T

PIN FASTENER

(SUB R662R AND 11H234)

1шт.

R662R

PIN FASTENER

1шт.

12

14H649

NUT

1/4"

1шт.

13

19H2676

CAP SCREW

3/8" X 1"

1шт.

14

24H1305

WASHER

13/32" X 13/16" X 0.065"

1шт.

15

R35668

CLAMP

1шт.

16

MOLDING

15 MM (6") LONG (MAKE FROM T61861, 15M (50 FT.) BULK)

1шт.
