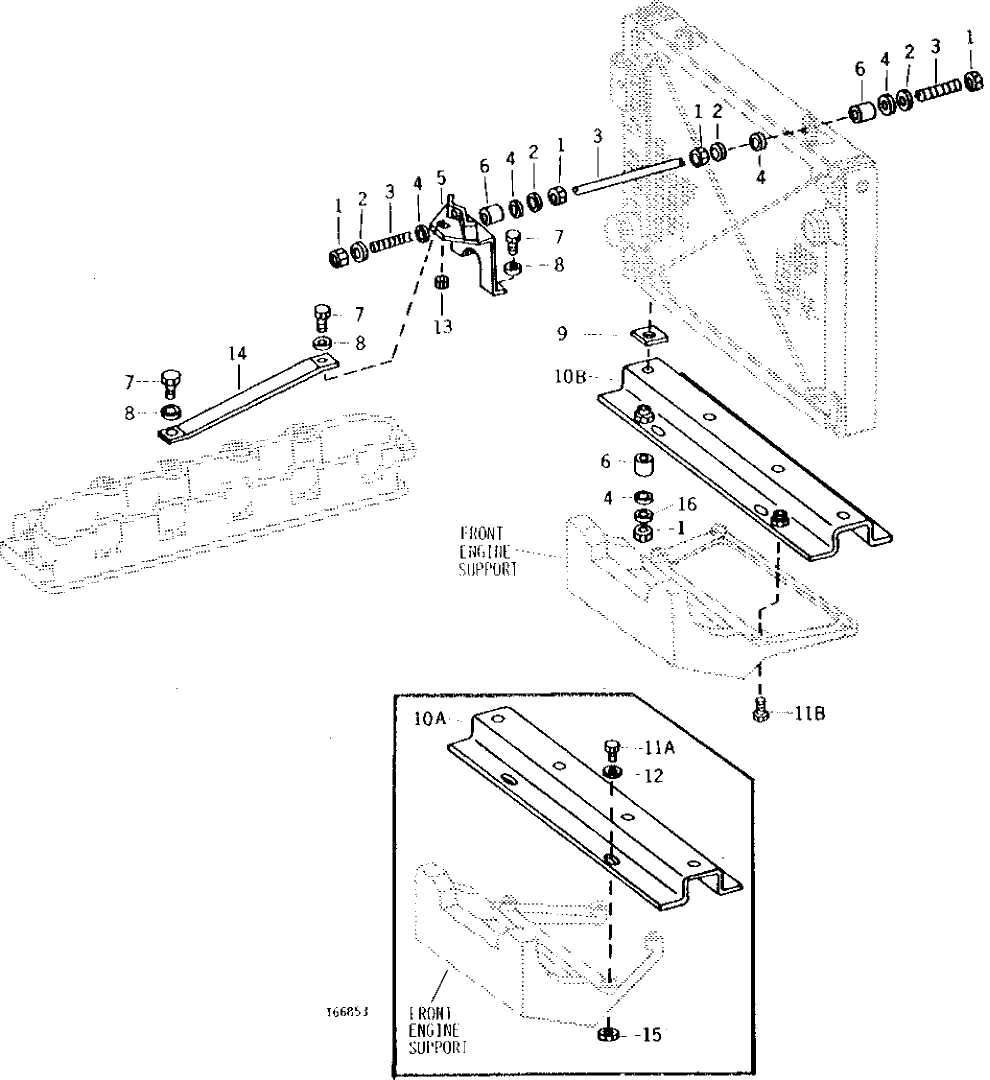

Запчасти John Deere 90 6 - RADIATOR SUPPORT 510 - ENGINE AUXILIARY SYSTEMS 5

1

14H1040

NUT

1/2"

12шт.

2

24H1204

WASHER

9/16" X 1-15/32" X 0.075"

8шт.

3

T57821

STUD

2шт.

4

U45315

WASHER

12шт.

5

AT55709

BRACKET

1шт.

6

T47250

SPACER

8шт.

7

19H2994

CAP SCREW

HS, SAE 8, 5/8" X 1-1/2"

4шт.

8

24H1368

WASHER

21/32" X 1-5/16" X 0.090"

4шт.

9

U45318

STRAP

4шт.

10A

T48047

SUPPORT

(SUB AT61767)

1шт.

10B

AT61767

SUPPORT

1шт.

11A

19H3550

CAP SCREW

1/2" X 4"

4шт.

11B

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

12

24H1211

WASHER

9/16" X 1-3/8" X 0.105"

4шт.

13

14H821

NUT

5/8"

1шт.

14

STRAP

( T60376 USE IF AVAILABLE)

1шт.

15

K40014

LOCK NUT

(SUB FOR BP12214, THIS APPLICATION)

4шт.

16

R63024

WASHER

4шт.
