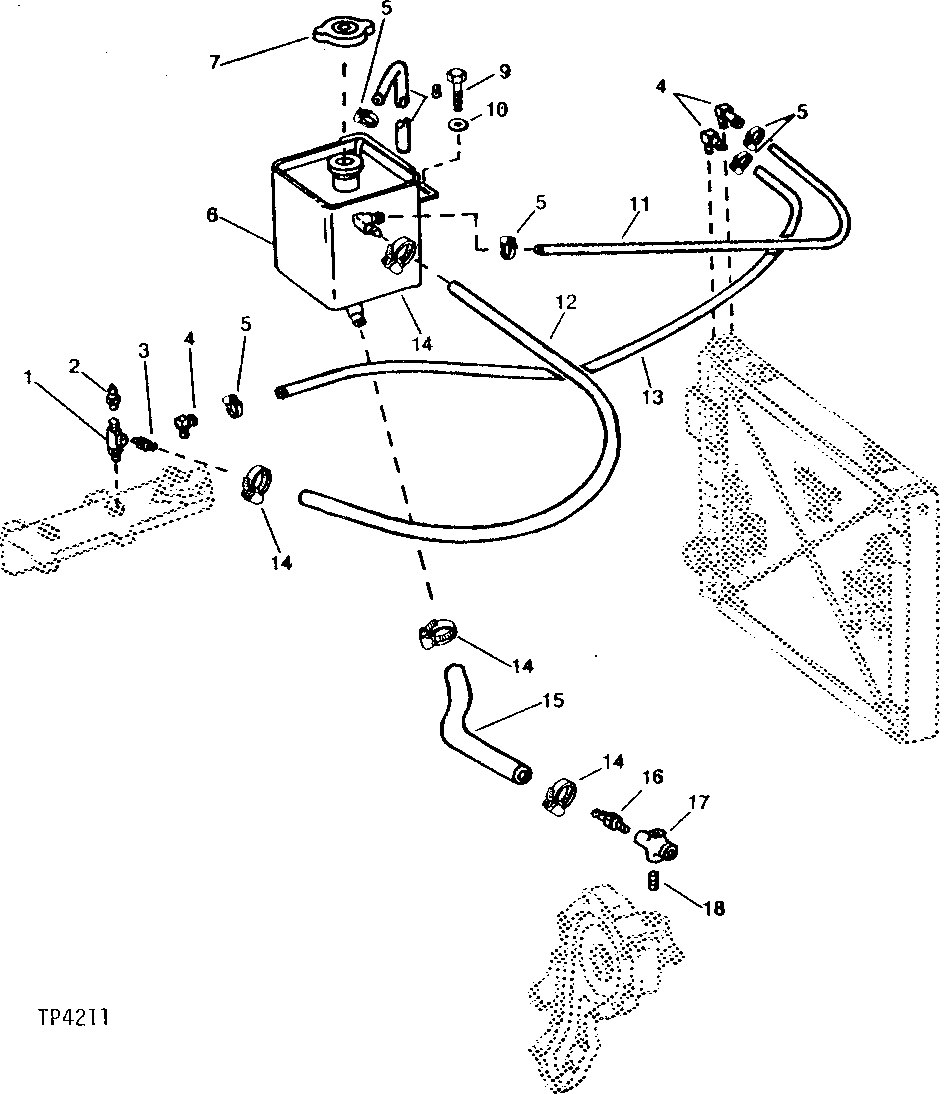

Запчасти John Deere 90 4 - SURGE TANK AND COOLANT LINES 510 - ENGINE AUXILIARY SYSTEMS 5

1

U10255

TEE FITTING

1шт.

2

AT39624

SWITCH

ETHER / START

1шт.

3

R39503

FITTING

1шт.

4

T12269

FITTING

90°

3шт.

5

TY22464

CLAMP

(SUB FOR AR21836)

5шт.

6

AT69533

TANK

1шт.

7

AN110020

CAP

1шт.

8

T59085

HOSE

966 MM (19/32" X 38") LONG

1шт.

9

19H1648

CAP SCREW

3/8" X 3/4"

4шт.

10

24H1884

WASHER

13/32" X 13/16" X 0.12"

4шт.

11

T57822

BULK HOSE

(SUB FOR T57823) 508 MM (11/16" X 20") LONG (CUT TO 17.32")

1шт.

12

H84623

HOSE

1шт.

13

T57822

BULK HOSE

1 066 MM (11/16" X 42") LONG

1шт.

14

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

4шт.

15

T57824

HOSE

432 MM (1-1/4" X 17") LONG

1шт.

16

T58388

FITTING

1шт.

17

15H656

FITTING

1/2"

1шт.

18

29H486

THREADED NIPPLE

1/2" X 1-1/8"

1шт.
