Запчасти John Deere 90 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEMS 5

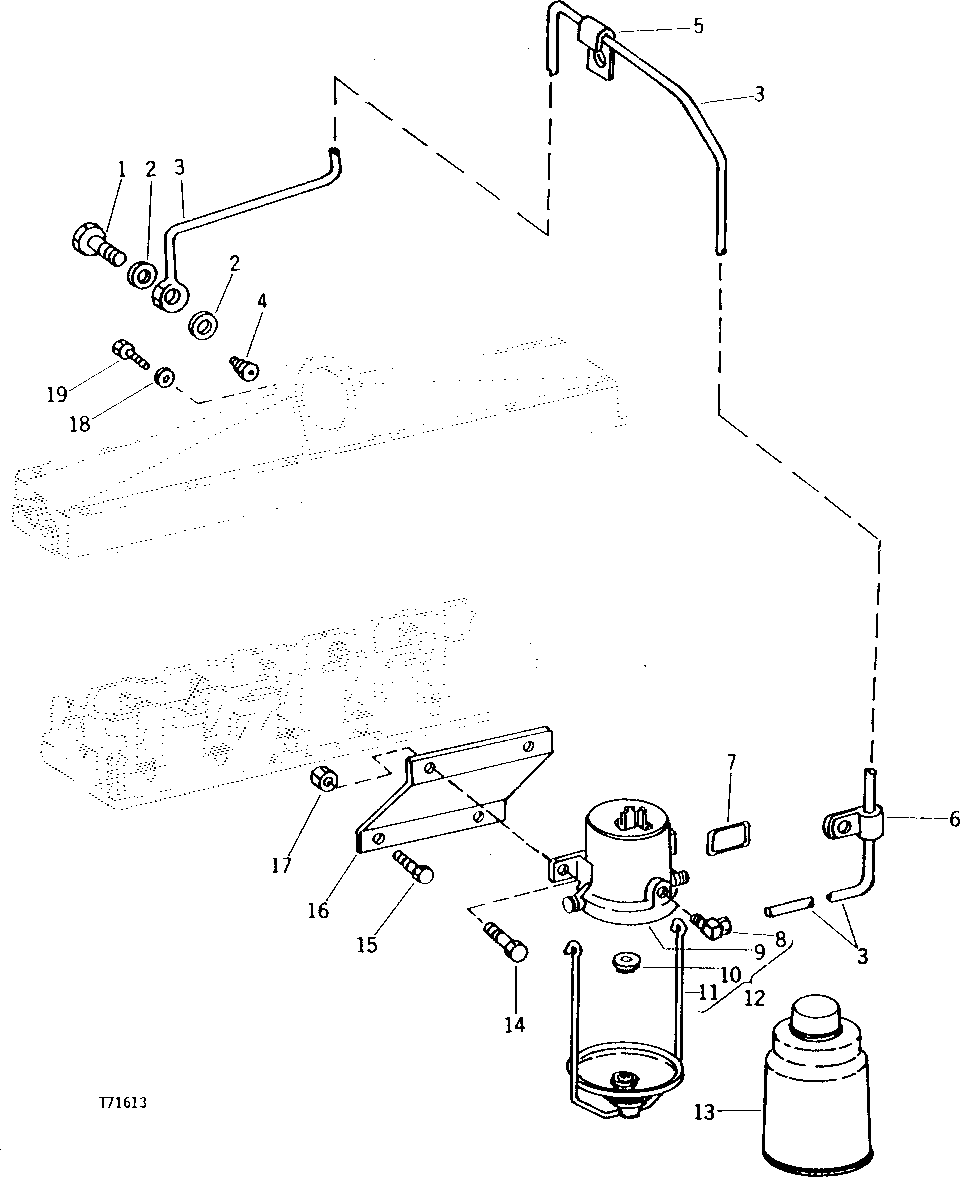

Схема запчастей John Deere 90 - 2 - COLD WEATHER STARTING AID 505 - ENGINE AUXILIARY SYSTEMS 5

Артикул

Название

Примечание

Количество

1

R51152

SCREW

1шт.

2

T20055

WASHER

2шт.

3

AR71860

LINE

1шт.

4

T155858

NOZZLE

(SUB FOR R28583)

1шт.

5

B1986R

CLIP

1шт.

6

T14264

CLAMP

1шт.

7

T42170

LABEL

NAшт.

8

RE21790

ELBOW FITTING

(SUB FOR AT25266)

1шт.

9

HOUSING

(SUB AT41998)

1шт.

10

T46726

GASKET

(SUB FOR AT55809)

1шт.

11

AT57288

BAIL

1шт.

12

AT41998

STARTING AID

1шт.

13

RE33636

STARTING FLUID

(SUB FOR AR27814, RE24561 AND RE30174)

1шт.

14

19H1813

CAP SCREW

5/16" X 5/8"

2шт.

15

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

16

R67615

BRACKET

(SUB FOR R64392, THIS APPLICATION)

1шт.

17

14H785

NUT

5/16"

2шт.

18

T11292

WASHER

(WITHOUT STARTING AID)

1шт.

19

19H2021

CAP SCREW

3/8" X 5/8", (WITHOUT STARTING AID)

1шт.

Выбрано товаров: 19
