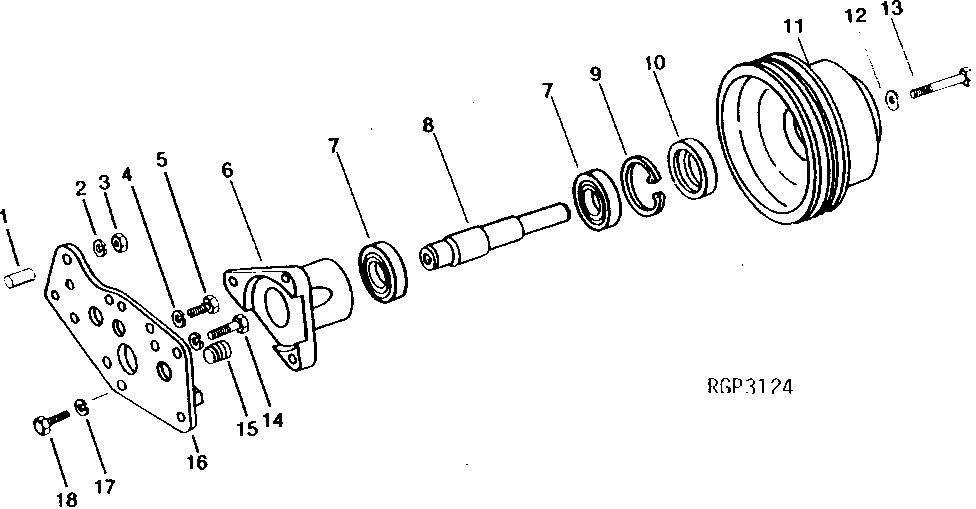

Запчасти John Deere 90 5 - FAN DRIVE AND SUPPORT 429 - ENGINE 4

1

M41645

BUSHING

2шт.

2

12H304

LOCK WASHER

3/8"

2шт.

3

E55662

FLANGE NUT

2шт.

4

12H301

LOCK WASHER

1/2"

3шт.

5

19H1912

CAP SCREW

3/8" X 3-1/2"

2шт.

6

R64157

SUPPORT

1шт.

7

JD10329

BALL BEARING

(SUB FOR JD7686)

2шт.

8

R63987

SHAFT

1шт.

9

R62191

SNAP RING

(1.7 MM) (RED)

ARшт.

R62192

SNAP RING

(1.9 MM) (GREEN)

ARшт.

R62193

SNAP RING

(2.2 MM) (BLUE)

ARшт.

R62194

SNAP RING

(2.5 MM) (WHITE)

ARшт.

10

RE20768

SEAL

(SUB FOR AR55966 OR AR90861)

1шт.

11

R66044

PULLEY

(SUB FOR R64158)

1шт.

12

T20217

WASHER

1шт.

13

19H1815

CAP SCREW

1/2" X 1-1/4"

1шт.

14

19H2023

CAP SCREW

3/8" X 3-1/4"

1шт.

15

15H686

PIPE PLUG

1"

1шт.

16

AR79846

PLATE

1шт.

17

12H301

LOCK WASHER

1/2"

3шт.

18

19H2508

CAP SCREW

1/2" X 1-3/8"

3шт.
