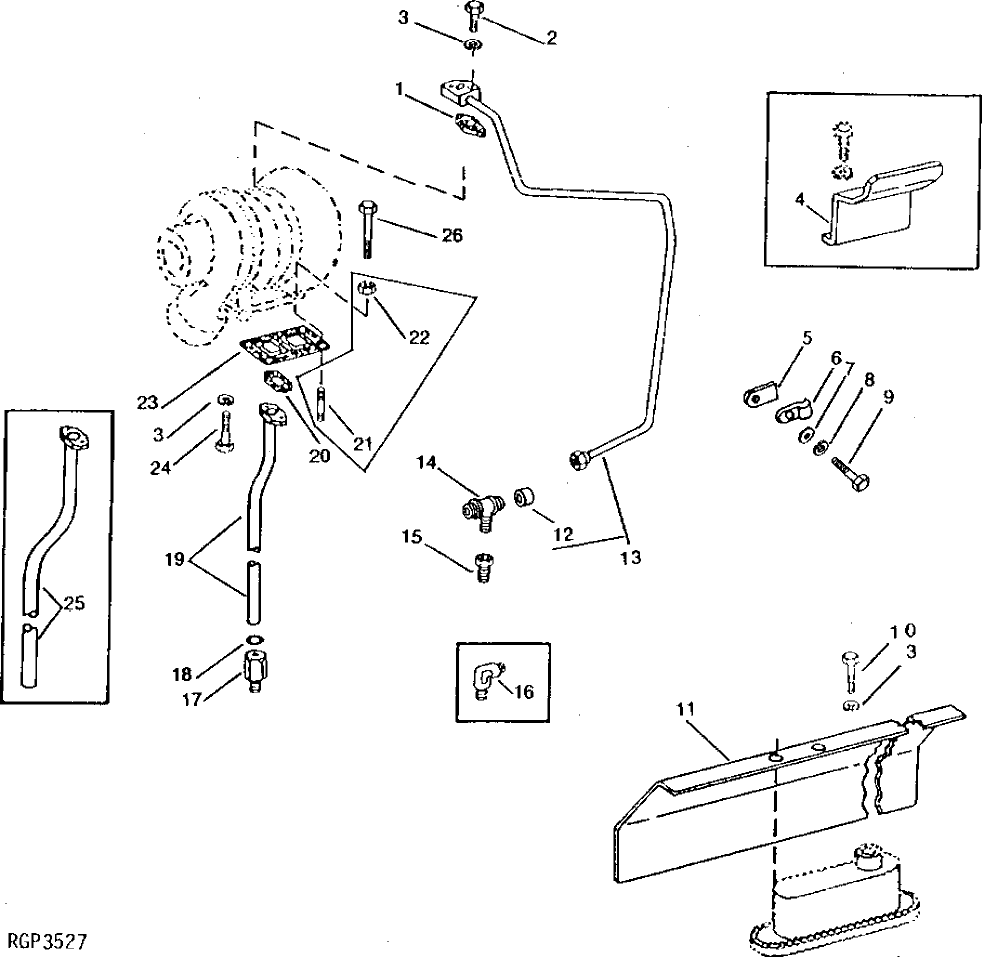

Запчасти John Deere 90 4 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

R58222

GASKET

1шт.

2

19H3239

CAP SCREW

3/8" X 1-1/4"

2шт.

3

12H304

LOCK WASHER

3/8"

6шт.

4

R51134

HEAT SHIELD

1шт.

5

CLAMP

NAшт.

6

CLAMP

NAшт.

7

WASHER

NAшт.

8

LOCK WASHER

NAшт.

9

CAP SCREW

NAшт.

10

19H2038

CAP SCREW

3/8" X 1/2", (SUB FOR R58221)

2шт.

11

AR102382

HEAT SHIELD

1шт.

12

R49671

WASHER

1шт.

13

AR69212

OIL LINE

(NOT AS SHOWN)

1шт.

14

R74742

TEE FITTING

1шт.

15

15H607

PIPE BUSHING

1/4"

1шт.

16

R125498

ELBOW FITTING

(SUB FOR R49673) (SUB R74742)

1шт.

17

R41285

ADAPTER FITTING

1шт.

18

R72328

O-RING

(SUB FOR R43780)

1шт.

19

AR103796

OIL LINE

(SUB FOR RE11044)

1шт.

20

R75691

GASKET

(SUB FOR R58221)

1шт.

21

R55078

STUD

4шт.

22

E55662

FLANGE NUT

4шт.

23

R49697

GASKET

1шт.

24

19H1731

CAP SCREW

3/8" X 1"

2шт.

25

AR94304

OIL LINE

(SUB AR103796) (SUB FOR AR69050)

1шт.

26

R54500

SCREW

4шт.

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.
