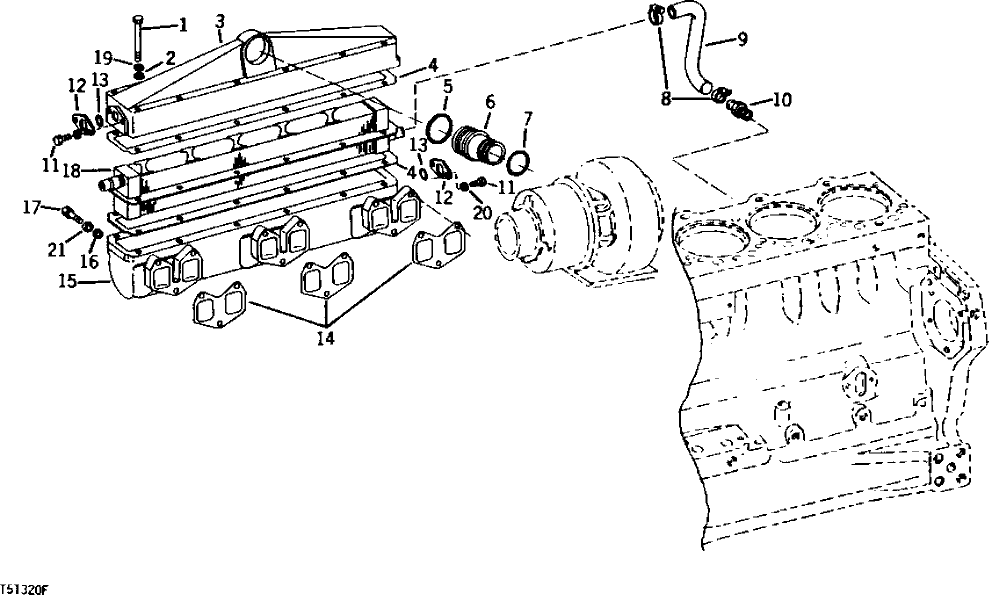

Запчасти John Deere 90 1 - INTAKE MANIFOLD AND INTERCOOLER 414 - ENGINE 4

1

19H3404

CAP SCREW

3/8" X 4"

12шт.

2

24H1305

WASHER

13/32" X 13/16" X 0.065"

12шт.

3

R57516

COVER

(SUB R76266, RE21790, T155858, R47160, 15H666 AND R104592)

1шт.

4

R53081

GASKET

2шт.

5

R57517

O-RING

1шт.

6

R57518

COUPLING

1шт.

7

R49424

O-RING

1шт.

8

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

9

R49473

HOSE

1шт.

10

R49518

FITTING

1шт.

11

19H2705

CAP SCREW

5/16" X 1"

4шт.

12

R49517

COVER

2шт.

13

R47153

O-RING

(SUB FOR R50420)

2шт.

14

R40088

GASKET

3шт.

15

R59071

INTAKE MANIFOLD

1шт.

16

24H1325

WASHER

15/32" X 59/64" X 0.065"

9шт.

17

19H2719

CAP SCREW

7/16" X 1-7/8"

9шт.

18

RE46441

INTERCOOLER

(SUB FOR AR73030 OR AR70420)

1шт.

19

12H304

LOCK WASHER

3/8"

12шт.

20

12H303

LOCK WASHER

5/16"

4шт.

21

12H293

LOCK WASHER

7/16"

9шт.
