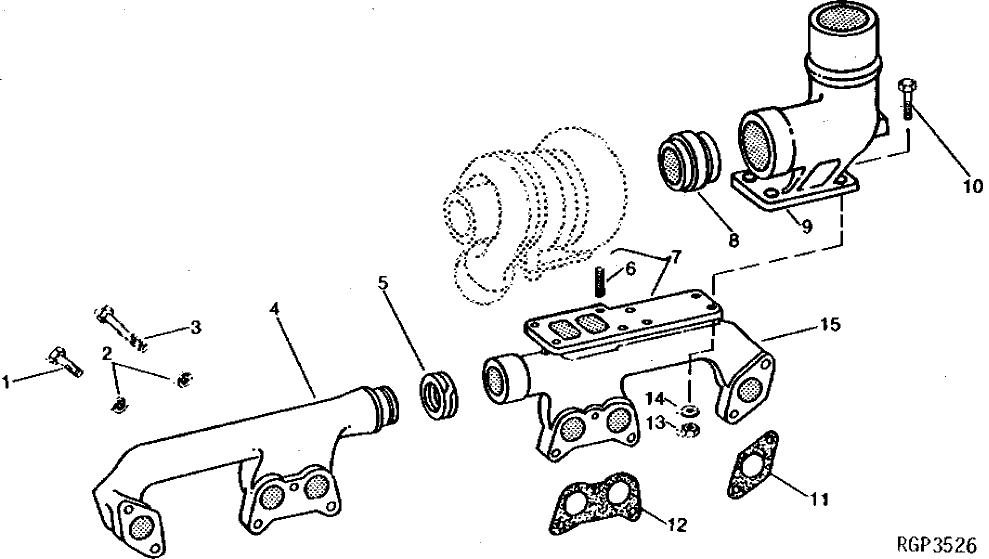

Запчасти John Deere 90 1 - EXHAUST ELBOW AND MANIFOLDS 410 - ENGINE 4

1

R502353

SCREW

(SUB FOR R53082) (USE WITH R120571)

3шт.

2

R63489

WASHER

10шт.

3

R124214

SCREW

(SUB FOR R53083) (USE WITH R71678 OR R57508)

5шт.

R502354

SCREW

(USE WITH R120571)

2шт.

4

R120571

EXHAUST MANIFOLD

(SUB FOR R57632)

1шт.

5

R57703

RING

1шт.

6

R55078

STUD

4шт.

7

AR94306

EXHAUST MANIFOLD

(MARKED R57508 OR R71678) (SUB FOR AR71315) (SUB (4) R54500 AND R71678)

1шт.

8

R59733

LOCKING COLLAR

1шт.

9

R78514

ELBOW FITTING

(SUB FOR R63510)

1шт.

10

19H1800

CAP SCREW

3/8" X 1-1/2"

4шт.

11

R80970

GASKET

(SUB FOR R66001 AND R78423) (SUB R86454 AND R86455)

2шт.

R86454

GASKET

2шт.

12

R80969

GASKET

(SUB FOR R66000 AND R78422) (SUB R86454 AND R86455)

2шт.

R86455

GASKET

2шт.

13

E55662

FLANGE NUT

4шт.

14

24H1303

WASHER

13/32" X 11/16" X 0.065", (NO LONGER REQUIRED)

4шт.

15

R71678

EXHAUST MANIFOLD

1шт.
