8 - REPLACEMENT ENGINE OIL PUMP

Запчасти John Deere 90 8 - REPLACEMENT ENGINE OIL PUMP 407 - ENGINE 4

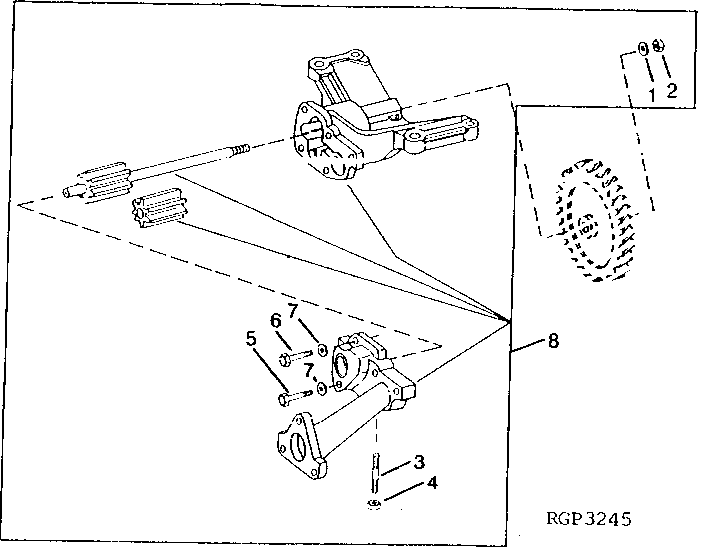

Схема запчастей John Deere 90 - 8 - REPLACEMENT ENGINE OIL PUMP 407 - ENGINE 4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T21242

WASHER

1шт.

2

14H826

NUT

1/2"

1шт.

3

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

4

14H785

NUT

5/16"

1шт.

5

19H2733

CAP SCREW

3/8" X 2-3/8"

2шт.

6

19H1765

CAP SCREW

3/8" X 1-3/4"

3шт.

7

R42729

WASHER

(SUB FOR R70234)

5шт.

8

AR99344

OIL PUMP

(SUB FOR AR96193) (SUB RE507076)

1шт.
