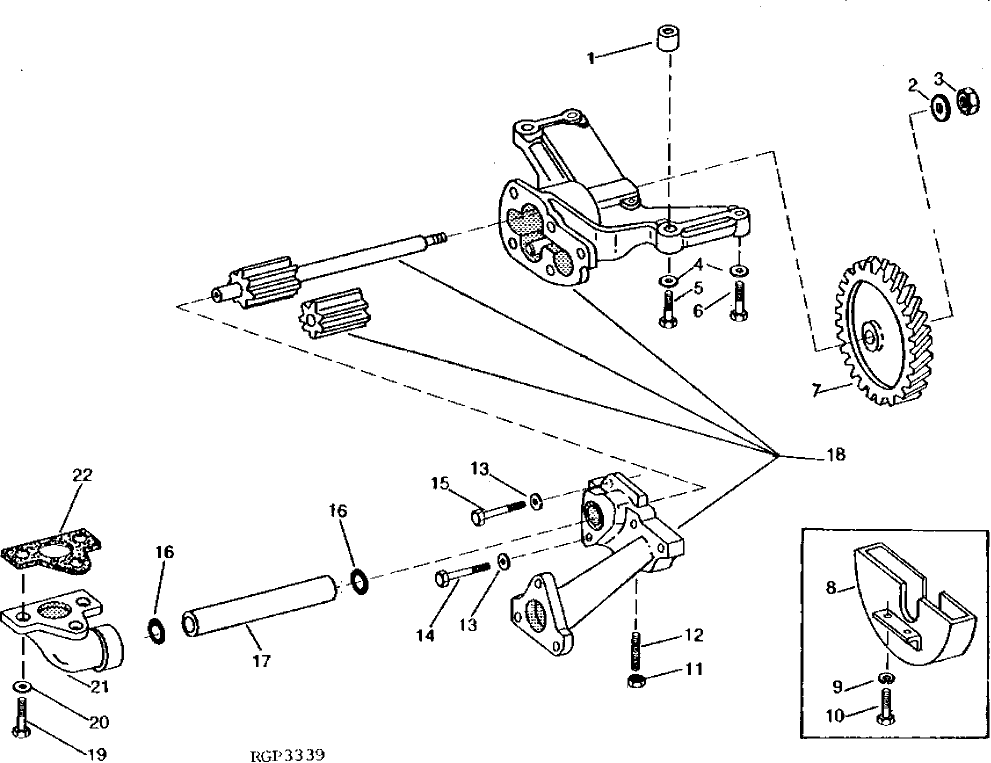

Запчасти John Deere 90 6 - ENGINE OIL PUMP (CRANKSHAFT DRIVEN) 407 - ENGINE 4

1

R500642

BUSHING

(SUB FOR R62930, THIS APPLICATION)

2шт.

2

T21242

WASHER

1шт.

3

14H826

NUT

1/2"

1шт.

4

R57696

WASHER

4шт.

5

19H2549

CAP SCREW

3/8" X 1-7/8"

2шт.

6

19H3219

CAP SCREW

3/8" X 1-3/8"

2шт.

7

R62938

GEAR

1шт.

8

SHIELD

(NLA)

1шт.

9

LOCK WASHER

(NOT REQUIRED)

2шт.

10

CAP SCREW

(NOT REQUIRED)

2шт.

11

14H785

NUT

5/16"

1шт.

12

22H1040

SET SCREW

5/16" X 1-1/4"

1шт.

13

M72490

WASHER

(SUB FOR R70234 OR R42729)

5шт.

14

19H2733

CAP SCREW

3/8" X 2-3/8"

2шт.

15

19H3217

CAP SCREW

3/8" X 1-3/4"

3шт.

16

R71732

O-RING

2шт.

17

R62947

TUBE

1шт.

18

SE500877

OIL PUMP REMAN

(SUB FOR RE507076, AR99344 OR AR94479) (REMANUFACTURED)

1шт.

19

19H3483

CAP SCREW

3/8" X 1-1/8"

3шт.

20

M72490

WASHER

(SUB FOR R70234 OR R42729)

3шт.

21

R62948

ELBOW FITTING

1шт.

22

R69418

GASKET

1шт.
