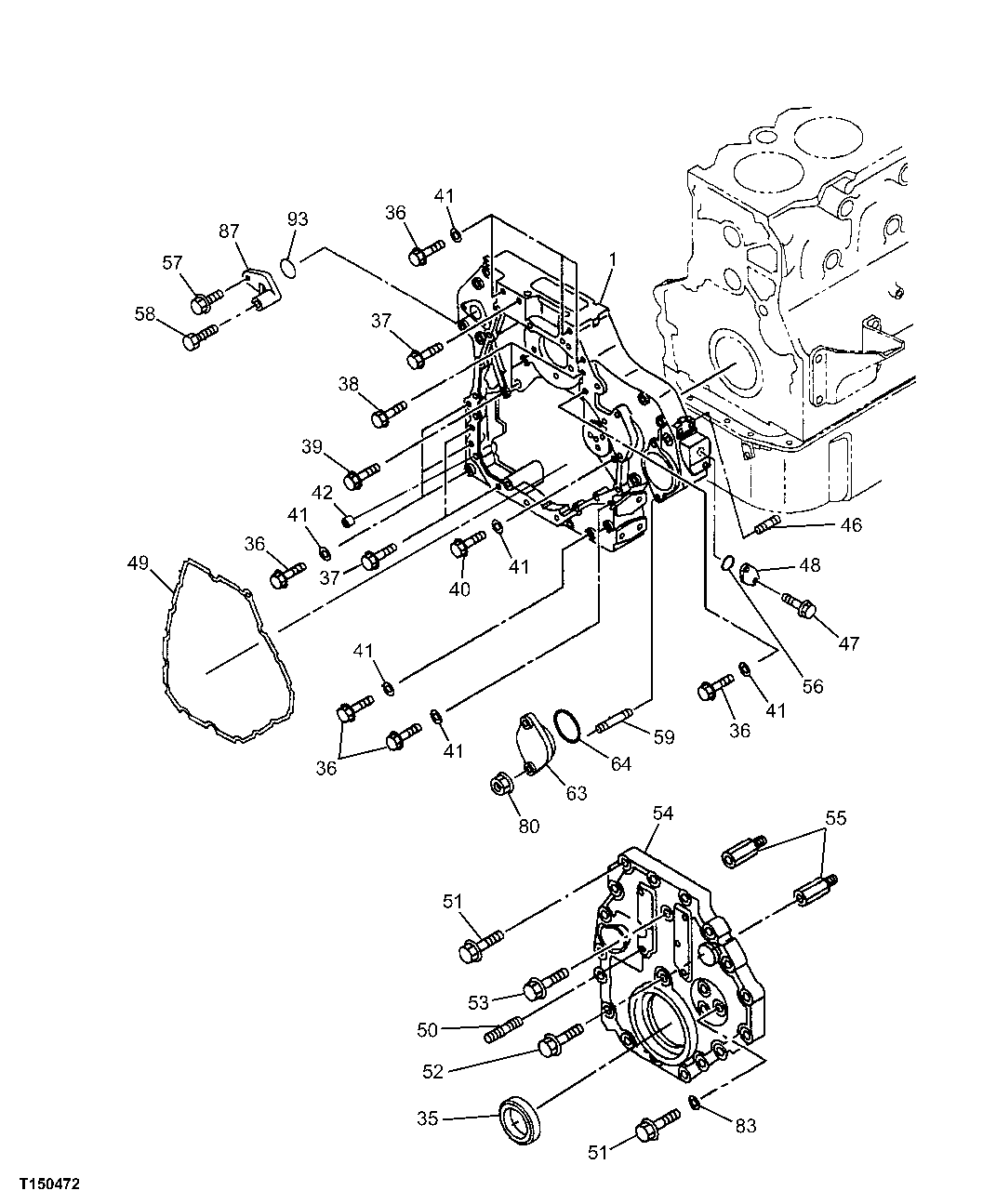

Запчасти John Deere 00C 52 - TIMING GEAR CASE 0433 FLYWHEEL, HOUSING AND FASTENINGS

1

8980322865

Gear Case

SUB FOR 1113100535, 1113100534, 8980322865

1шт.

35

8976173080

Seal

(A) SUB FOR AT263808 AND 1096255562

1шт.

36

1090200070

Bolt

M14 X 110, SUB FOR AT263895

10шт.

37

0281510000

Bolt

M10 X 100 FLANGE, SUB FO R AT263860 OR 0281810000

3шт.

38

0281810250

Bolt

M10 X 25 FLANGE, SUB FOR AT259936

4шт.

39

0281510350

Bolt

M10 X 35 FLANGE, SUB FO R AT263705 OR 0281210350

1шт.

40

1090201460

Bolt

M14 X 60, SUB FOR AT263897

1шт.

41

9091645140

Washer

ID = 14, SUB FOR AT264145

11шт.

42

1131190040

Dowel Pin

SUB FOR AT264018

1шт.

46

9044114450

Stud

SUB FOR AT264132 OR 9044114450

1шт.

47

0280508160

Bolt

M8 X 16 FLANGE, SUB FOR AT259924 OR 0280808160

2шт.

48

1113190120

Cover

SUB FOR AT263967

1шт.

49

1113220610

Gasket

(A) SUB FOR AT263772

1шт.

50

9044110400

Stud

M10 X 40, LGTH = 55, SUB FOR AT264130

3шт.

51

0287510400

Bolt

M10 X 40 FLANGE, SUB FO R AT263881 OR 0287810400

ARшт.

52

9010658400

Bolt

M8 X 40, SUB FOR AT264127

3шт.

53

0281810450

Bolt

M10 X 45 FLANGE, SUB FOR AT263864

1шт.

54

1113211682

Cover

SUB FOR AT263968 AND 1113211681

1шт.

55

8976034820

Bolt

M10 X 90, SUB FOR AT263971 OR 1113290241

2шт.

56

1096232990

Packing

(A) ID = 38.7, SUB FOR AT263925

1шт.

57

0280808600

Bolt

M8 X 20 FLANGE, SUB FOR AT263858

1шт.

58

0280808600

Bolt

M8 X 60 FLANGE, SUB FOR AT263858

1шт.

59

0440110300

Stud

M10 X 30, LGTH = 45, SUB FOR AT264129 OR 9044110300

2шт.

63

1117491860

Cover

SUB FOR AT263983

1шт.

64

1096234210

Gasket

SUB FOR AT263773

1шт.

80

0911802100

Nut

SUB FOR TH4447336, 4447336

2шт.

83

5095031110

Washer

ID = 8.5, OD = 20, SUB FOR AT264109

1шт.

87

1113491512

Cover

SUB FOR AT263974

1шт.

93

1096234160

Gasket

SUB FOR AT263927

1шт.
