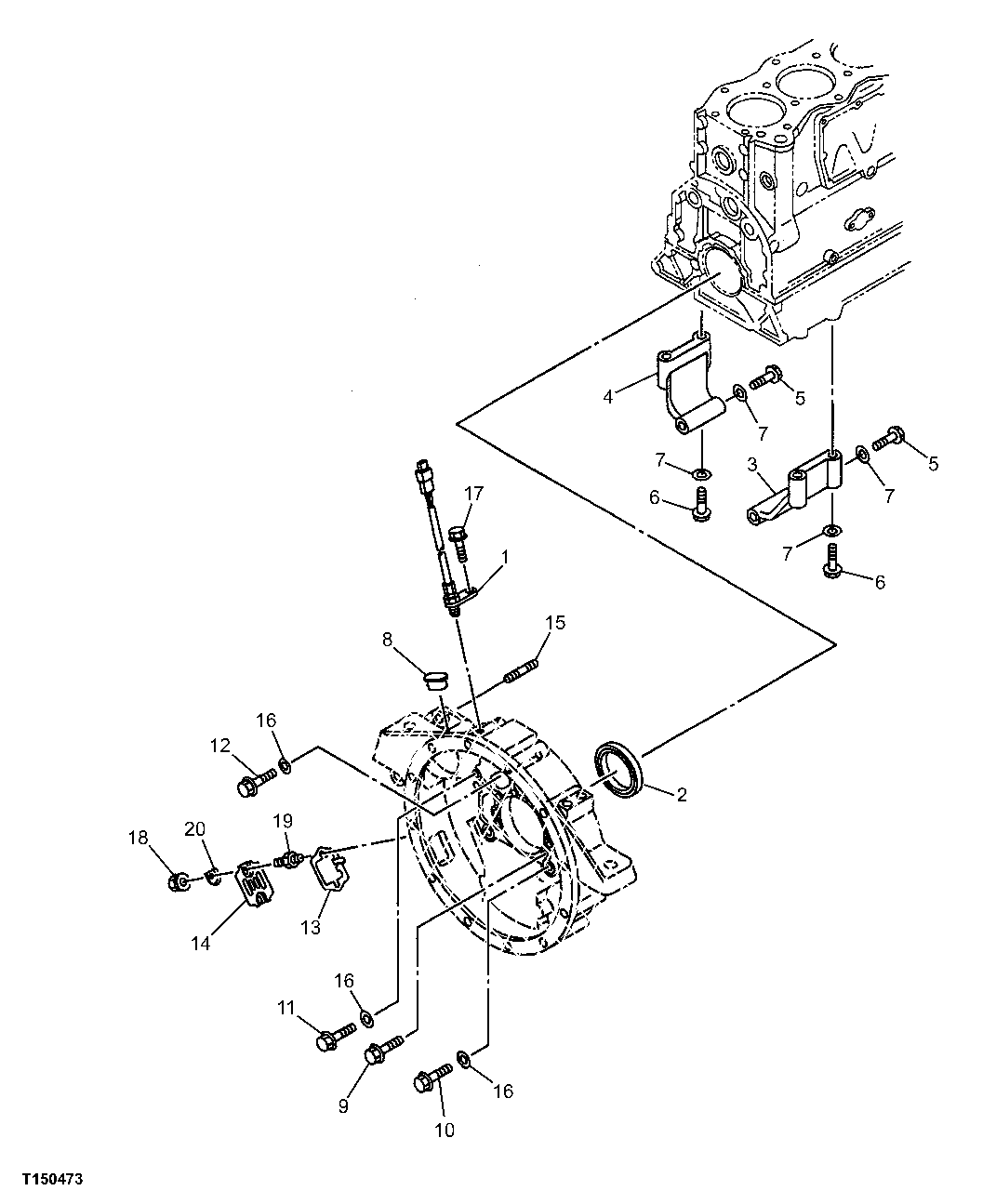

Запчасти John Deere 00C 51 - FLYWHEEL HOUSING 0433 FLYWHEEL, HOUSING AND FASTENINGS

1

1815107131

Sensor

SUB FOR AT263810 OR 1815107130

1шт.

2

8976173090

Seal

(A) SUB FOR AT263809, SUB FOR 1096255571

1шт.

3

1113492400

Support

SUB FOR AT263975

1шт.

4

1113492410

Support

SUB FOR AT263976

1шт.

5

1090200081

Bolt

SUB FOR (1) AT263896, M14 X 155

2шт.

6

0169564000

Bolt

SUB FOR 9916664000 OR (1) AT264161, M14 X 100

4шт.

7

9091645140

Washer

SUB FOR (1) AT264145, ID = 14

6шт.

8

9113490490

Cover

SUB FOR AT264156

1шт.

9

0280808350

Bolt

SUB FOR (1) AT263857, M8 X 35 FLANGE

8шт.

10

Bolt

9916664500 NLA SUB FOR AT264162

2шт.

0169564500

Bolt

SUB FOR 9916664500

2шт.

11

9923614450

Bolt

SUB FOR (1) AT264165, M14 X 45

10шт.

12

0287914400

Bolt

SUB FOR (1) AT263884, M14 X 40

1шт.

13

1113270451

Pointer

SUB FOR AT263970 OR 1113270450

1шт.

14

1113491310

Cover

SUB FOR AT263973

2шт.

15

9044114350

Stud

SUB FOR (1) AT264131, M14 X 35, LGTH = 56

3шт.

16

9091645140

Washer

SUB FOR (1) AT264145, ID = 14

12шт.

17

0280508160

Bolt

SUB FOR (1) AT259924 OR (1) 0280808160, M8 X 16 FLANGE

1шт.

18

14M7298

Flange Nut

M8 SUB FOR (1) AT259945 OR (1) 4447338, M8 FLANGE

4шт.

19

1093000581

Stud

SUB FOR (1) AT263904, M8 X 14, LGTH = 33

4шт.

20

1113491270

Washer

SUB FOR AT263972

2шт.
