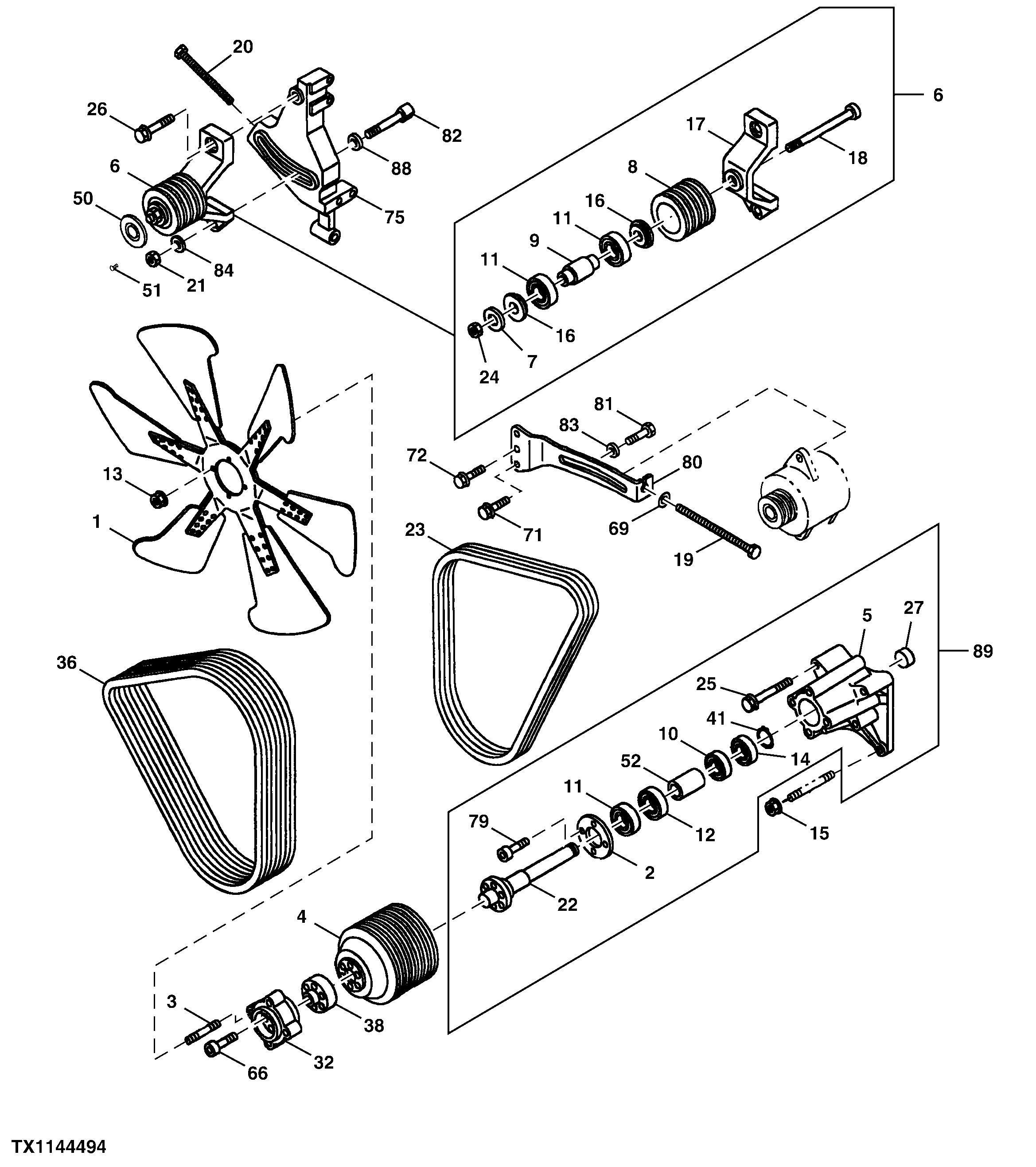

Запчасти John Deere 00C 50 - FAN AND FAN BELT 0429 FAN DRIVE

1

1136603311

Fan

4 Mounting Holes SUB FOR AT263725 AND 1136603310

1шт.

8980622920

Fan

6 Mounting Holes

1шт.

2

8980303470

Plate

SUB FOR AT264056 OR 1136640240

1шт.

3

9098311240

Stud

(SUB FOR AT264128)M10 X 25, LGTH = 45 SUB FOR AT264128

4шт.

9098311240

Stud

(SUB FOR AT264128)M10 X 25, LGTH = 45 SUB FOR AT264128

6шт.

4

1136412020

Pulley

SUB FOR AT263820

1шт.

5

Housing

1136610530 NLA, SUB FOR AT264055

1шт.

6

1136603390

Pulley

1шт.

7

9091647240

Washer

1шт.

8

1136631220

Pulley

SUB FOR AT263821

1шт.

9

1136660500

Spacer

SUB FOR AT264062

1шт.

10

1098002920

Bearing

SUB FOR AT263699

2шт.

11

1098002930

Bearing

SUB FOR AT263700

1шт.

12

1098002940

Bearing

SUB FOR AT263701

1шт.

13

14M7209

Nut

M18 (SUB FOR AT264167 AND 9991115180)M1 0 FLANGE SUB FOR AT264167 AND 9991115180

4шт.

14M7209

Nut

M18 (SUB FOR AT264167 AND 9991115180)M1 0 FLANGE SUB FOR AT264167 AND 9991115180

6шт.

14

1098002950

Bearing

SUB FOR AT263702

1шт.

15

0911802100

Nut

SUB FOR TH4447336 AND 4447336

2шт.

16

1136640270

Cover

SUB FOR AT264057

1шт.

17

1136680480

Bracket

SUB FOR AT264063

1шт.

18

1136650540

Spindle

SUB FOR AT264059

1шт.

19

1090091131

Bolt

(SUB FOR AT263893)M10 X 135 SUB FOR AT263893

1шт.

20

1090091830

Bolt

SUB FOR AT263894

1шт.

21

14M7209

Nut

M18 (SUB FOR AT264167 AND 9991115180 )M18 SUB FOR AT264167 AND 9991115180

4шт.

22

Shaft

8980303460 NLA, SUB FO R AT264051 OR 1136310920

1шт.

23

1136714890

V-Belt

SUB FOR AT263704

2шт.

24

0911115240

Nut

(SUB FOR AT264168)M24 SUB FOR AT264168 OR 9991115240

1шт.

25

0281560120

Bolt

M10 x 120, Flange SUB FOR AT263870

6шт.

26

1090004800

Bolt

M16 X 65

2шт.

27

1096000122

Plug

SUB FOR 1096000121, AT263792 AND 1096000 160 (SUB FOR 1096000121 ) (SUB FOR AT2637 92, AND 1096000160THIS APPLICATION)OD = 3 2

1шт.

32

1136420770

Adapter Fitting

SUB FOR AT264053 4 Mounting Holes

1шт.

8980302231

Adapter

SUB FOR 8980302230 6 Mounting Holes

1шт.

36

4640542

Flat Belt

SUB FOR 4474619

1шт.

38

8980352350

Spacer

SUB FOR AT264054, 11364207 91, 1136420792, 1136420793

1шт.

41

9091800320

Snap Ring

(SUB FOR AT264149)ID = 29.6 SUB FOR AT264149

1шт.

50

Isolator

1112911030 NLA

1шт.

51

4488765

Clip

4шт.

52

1136660490

Spacer

SUB FOR AT264061

4шт.

66

Bolt

M10 X 110 FLANGE

6шт.

69

0916105100

Washer

(SUB FOR AT264142)ID = 10.5 S UB FOR AT264142 AND 9091605100

1шт.

9091607120

Washer

(SUB FOR AT264144)ID = 12 SUB FOR AT264144

1шт.

71

0281810250

Bolt

SUB FOR AT259936

1шт.

72

0281560110

Bolt

SUB FOR AT263869 OR 0281860110

1шт.

75

8980027990

Bracket

SUB FOR AT264066 OR 11 36743010 OR 1136743011

1шт.

79

0583306140

Bolt

SUB FOR AT263890 AND 0583106140

1шт.

80

1136742950

Bracket

SUB FOR AT264065

1шт.

81

1136741600

Adjuster

(SUB FOR AT264064)M12 X 45 SUB FOR AT264064

1шт.

82

1136650262

Bolt

SUB FOR AT264058

1шт.

83

9091646160

Washer

(SUB FOR AT264146)ID = 17 , OD = 32 SUB FOR AT264146

4шт.

84

0916146200

Washer

(SUB FOR AT264147 OR 9091646200)ID = 18 SUB FOR AT264147 OR 9091646200

1шт.

88

1136660211

Washer

SUB FOR AT264060

1шт.

89

8980303450

Shaft

SUB FOR 1136603400

1шт.
