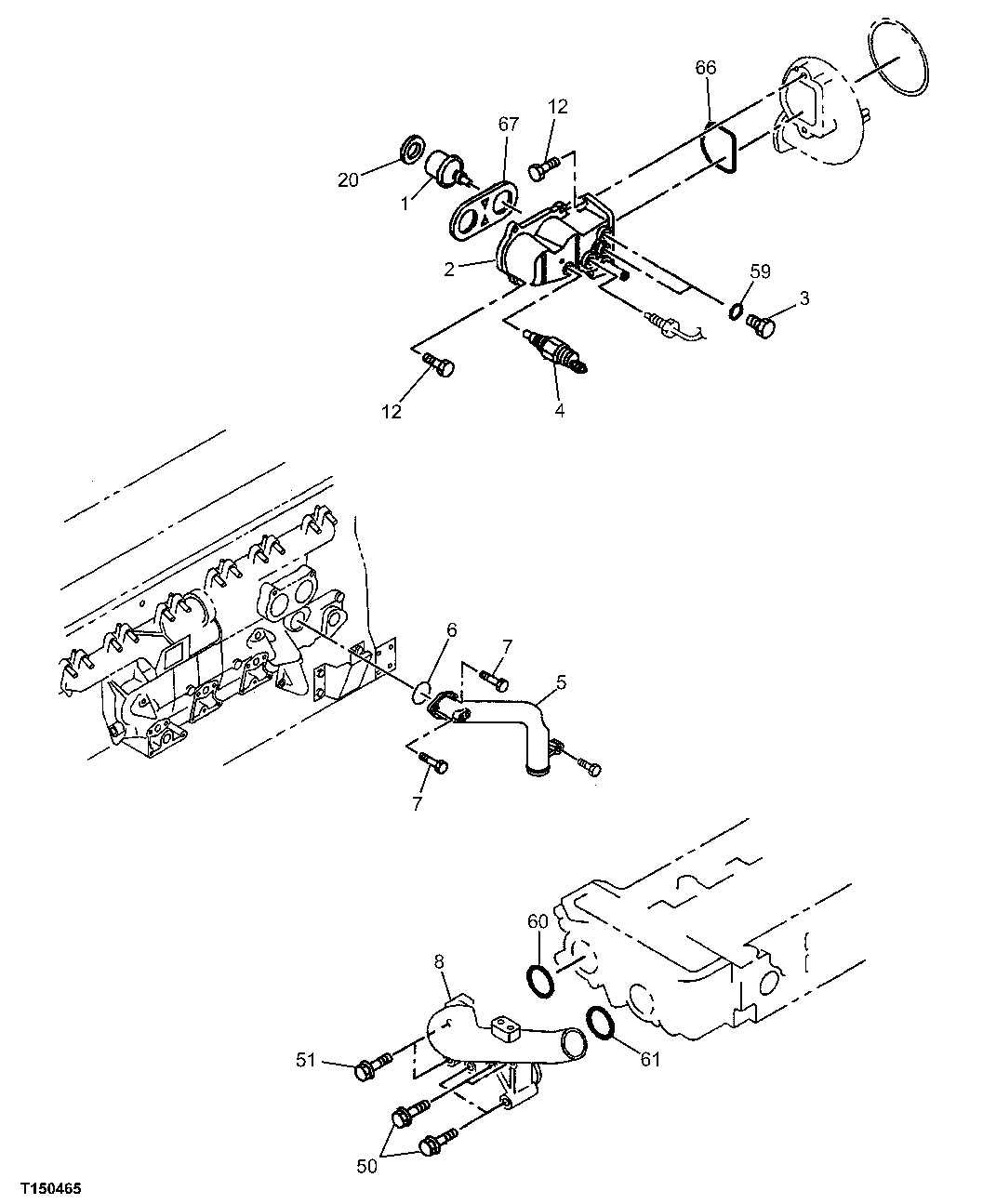

Запчасти John Deere 00C 43 - THERMOSTAT, HOUSING AND WATER LINES 0418 THERMOSTAT, HOUSING AND WATER PIPING

1

1137700891

Thermostat

82° C, SUB FOR (1) AT2 63685 OR (1) 1137700890

2шт.

2

8981660110

Housing

SUB FOR AT264067, 1137 105691, AND 1137105690

1шт.

3

9992023160

Plug

M16 X 12, SUB FOR (1) AT264169

2шт.

4

4371318

Switch

SUB FOR AT263830 AND 8971256011

1шт.

5

1137118100

Line

SUB FOR AT264068

1шт.

6

1096234060

Gasket

(A) SUB FOR AT263926

1шт.

7

0281810300

Bolt

M10 X 30 FLANGE, SUB FOR (1) AT263863

1шт.

8

1137130611

Line

SUB FOR AT264069

2шт.

12

0281810250

Bolt

M10 X 25 FLANGE, SUB FOR (1) AT259936

5шт.

20

1137790110

Seal

SUB FOR AT264071

2шт.

50

8943973591

Bolt

M10 X 85 FLANGE, SUB FOR (1) AT264122

4шт.

51

0281810500

Bolt

M10 X 50 FLANGE, SUB FOR (1) AT263865

2шт.

59

1096300860

Gasket

ID = 16.2, SUB FOR (1) AT263941

2шт.

60

1096235420

Gasket

ID = 55.6, SUB FOR (1) AT 263929, AND (1) 1096234520

1шт.

61

1096235050

Gasket

ID = 62.6, SUB FOR (1) AT263933

1шт.

66

1096234230

Gasket

(A) (B) ID = 105.6, SUB FOR (1) AT263781

1шт.

67

1137430361

Gasket

(A) (B) SUB FOR AT263662

1шт.
