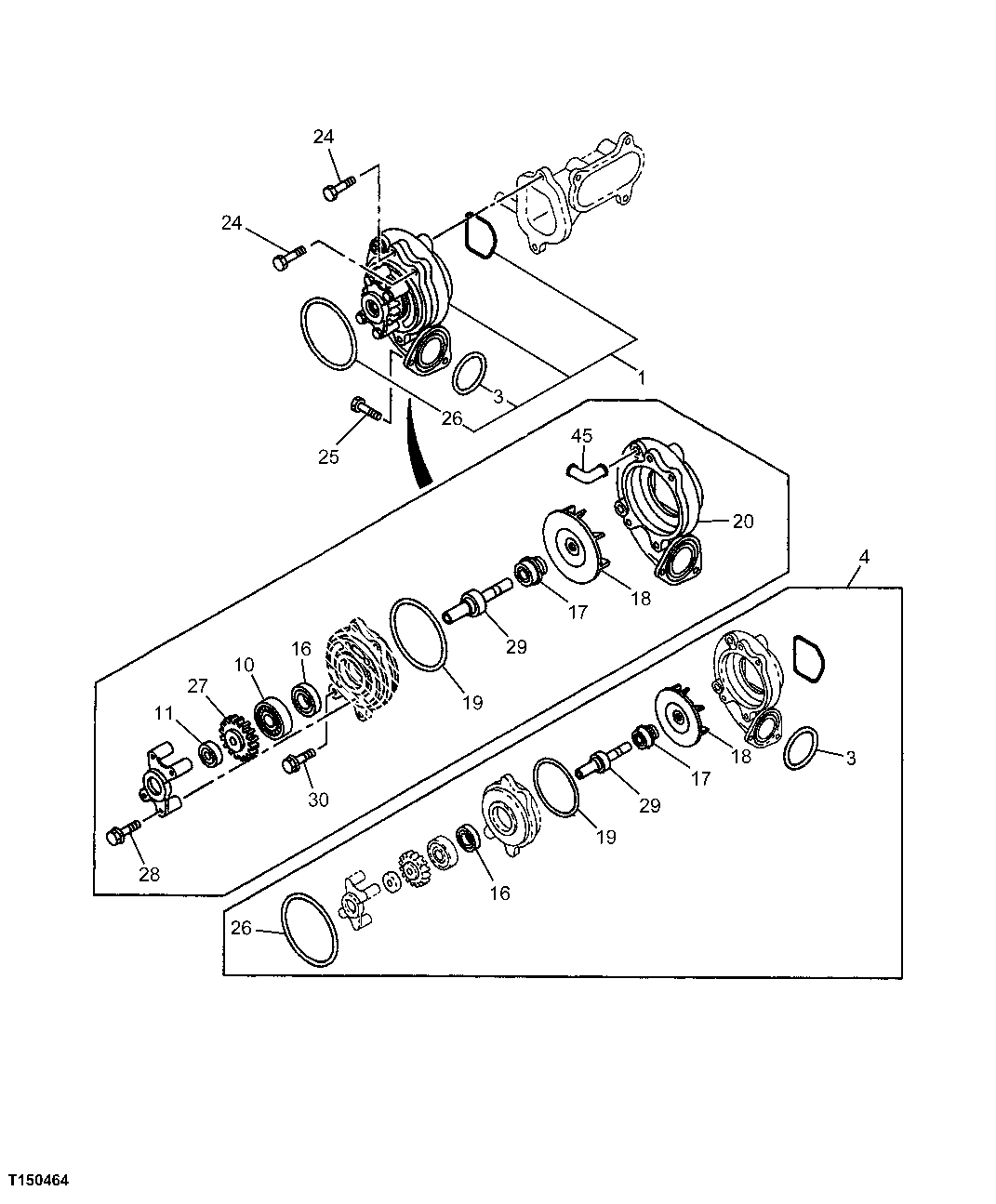

Запчасти John Deere 00C 42 - Water Pump 0417 WATER PUMP

1

1873110010

Water Pump

SUB FOR 1873109620, 1873108740, 113650112 6, 1136501125, AT263676, 1136501120, 11365 01121, 1136501122, 1136501123 OR 113650112 4

1шт.

3

1096235861

O-Ring

SUB FOR AT263779

1шт.

4

1878144370

Gasket

SUB FOR 1878134280, 1878118 430, AT263748 OR 1878139320

1шт.

10

AT263959

Bearing

1шт.

11

AT263960

Bearing

1шт.

16

AT263938

Seal

1шт.

17

AT264116

Seal

4шт.

18

AT264049

Impeller

1шт.

19

AT263935

Gasket

1шт.

20

AT264048

Cover

1шт.

24

0281810900

Bolt

SUB FOR AT263868

4шт.

25

0281810250

Bolt

SUB FOR AT259936

2шт.

26

1096234940

O-Ring

SUB FOR AT263780

2шт.

27

AT264052

Gear

4шт.

28

AT259927

Bolt

4шт.

29

AT264050

Shaft

2шт.

30

0281810250

Bolt

SUB FOR AT259936

1шт.

45

8944788692

Pipe Elbow

SUB FOR AT264126 OR 8944788691

1шт.
