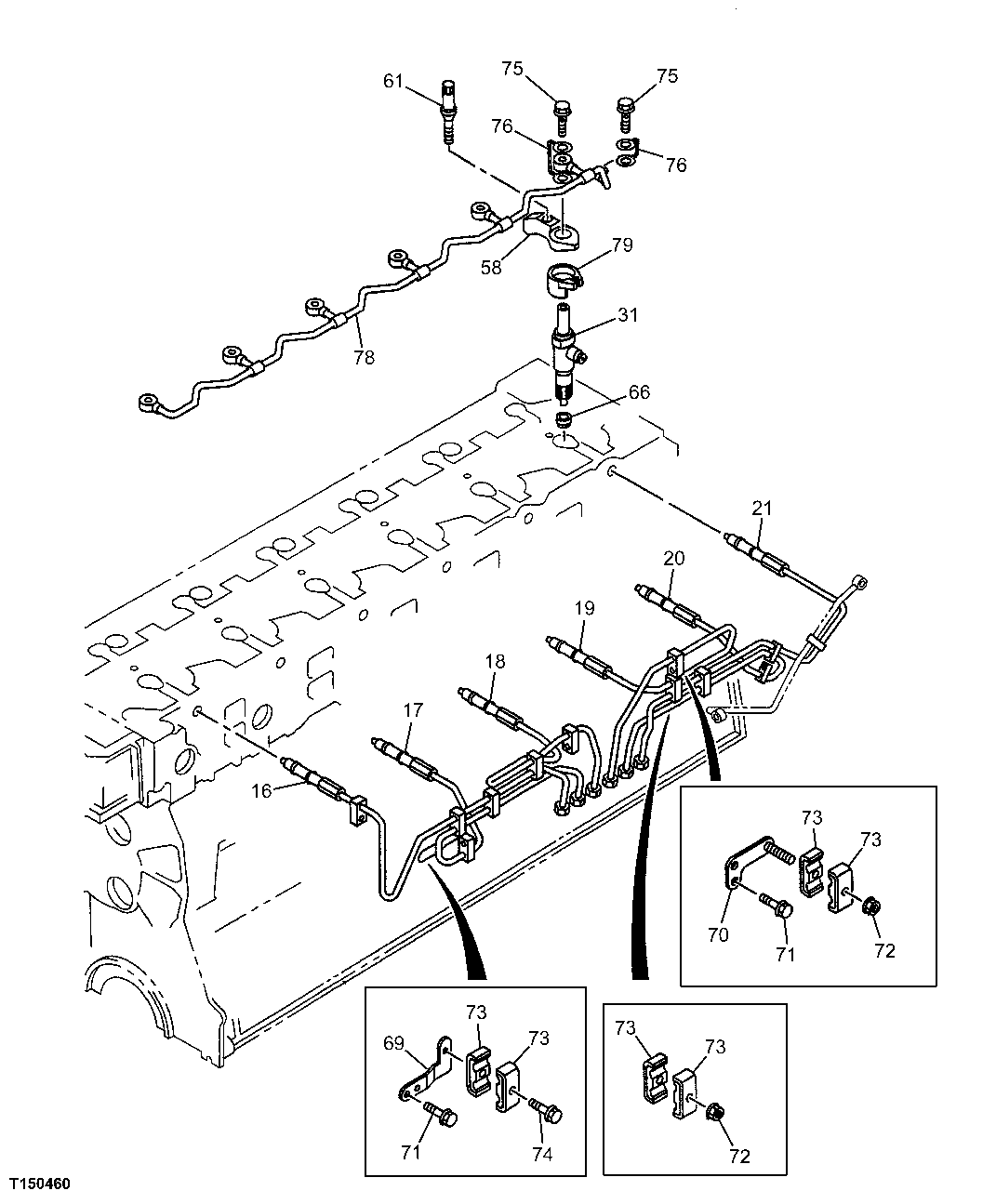

Запчасти John Deere 00C 35 - Fuel Injection System 0413 FUEL INJECTION SYSTEM

16

1154164870

Fuel Line

SUB FOR AT263832

1шт.

17

1154164880

Fuel Line

SUB FOR AT263833

1шт.

18

1154164890

Fuel Line

SUB FOR AT263834

1шт.

19

1154164900

Fuel Line

SUB FOR AT263835

1шт.

20

1154164910

Fuel Line

SUB FOR AT263836

1шт.

21

1154164920

Fuel Line

SUB FOR AT263837

1шт.

31

1153003922

Injection Nozzle

SUB FOR AT263673

6шт.

Injection Nozzle Reman

SE502084 NLA, REMAN FOR 1153003922

1шт.

58

1153370290

Flange

SUB FOR AT264086 OR 1153370220

6шт.

61

1090701210

Bolt

SUB FOR AT263902

6шт.

66

1153150110

Gasket

OD = 15.0 SUB FOR AT263661

6шт.

69

1154193340

Bracket

SUB FOR AT264090

1шт.

70

1154195840

Bracket

SUB FOR AT264091

1шт.

71

0280508160

Bolt

M8 X 16 FLANGE SUB FOR AT259924 OR 0280808160

4шт.

72

14M7303

Flange Nut

M6 M6 FLANGE SUB FOR AT263891

6шт.

73

1097011321

Clip

ID = 15, LGTH = 30 SUB F OR AT263953 OR 1097011320

14шт.

74

0280806400

Bolt

M6 X 40 FLANGE SUB FOR AT263854

1шт.

75

1096750371

Bolt

M8 X 18 Flange SUB FOR AT263948

9шт.

76

8980659920

Gasket

ID = 8.6 SUB FOR 8976009250 OR AT263665

9шт.

78

1154161390

Fuel Line

SUB FOR AT264087

1шт.

79

1153190020

Cap

SUB FOR AT264083

6шт.
