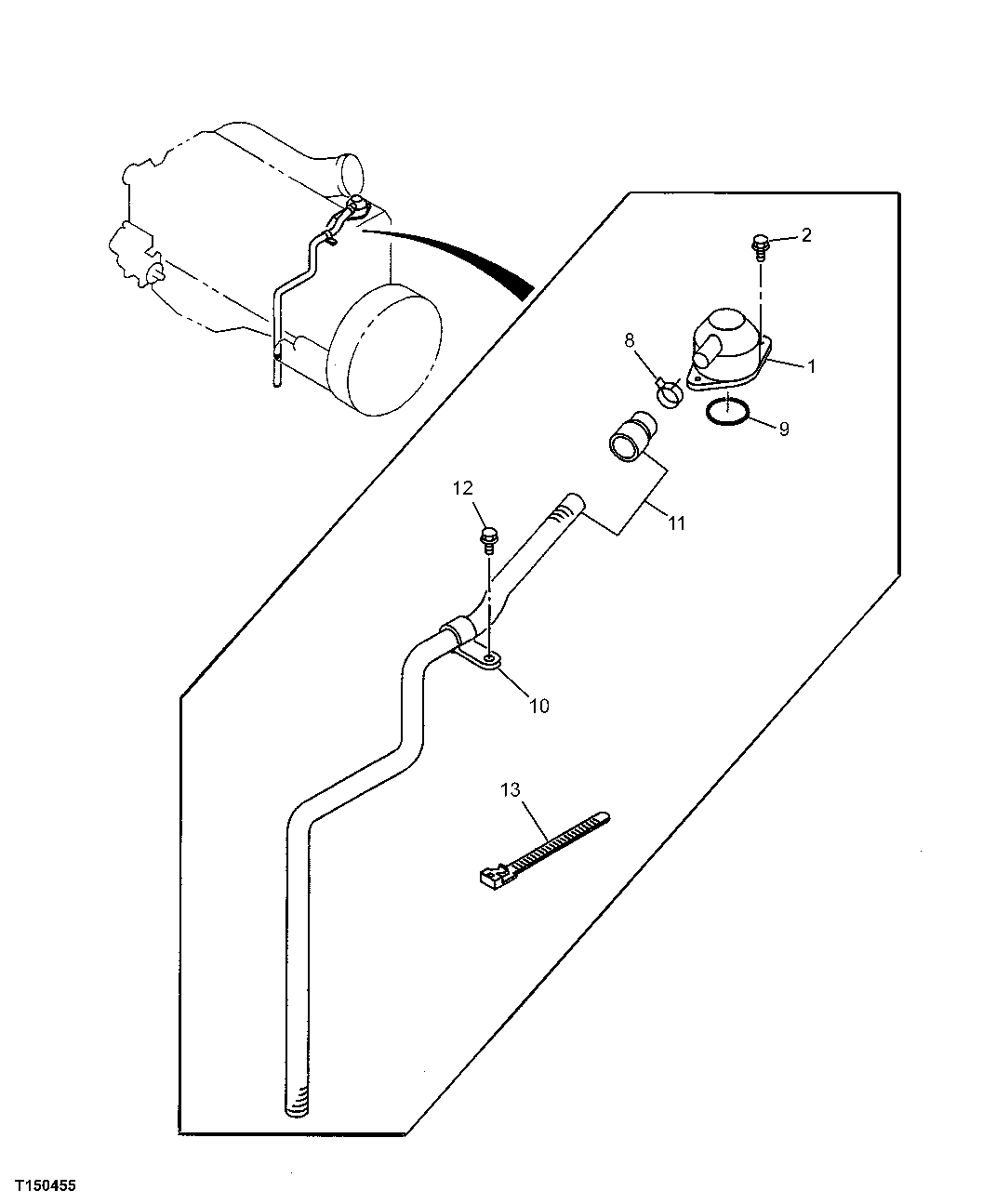

Запчасти John Deere 00C 28 - VENTILATION SYSTEM 0408 VENTILATING SYSTEM

1

1117401811

Breather

SUB FOR AT263717, 1117401810

1шт.

2

4447337

Bolt

(SUB FOR AT259935, 0281810200)M10 X 20 FLANGE SUB FOR AT259935 AND 0281810200

2шт.

8

Clip

ID = 28.5

1шт.

9

1096235650

O-Ring

SUB FOR AT263778

1шт.

10

XCL-21

Hose Clamp

(SUB FOR AT263952 ) (SUB FOR 1097009690)ID = 31, LGTH = 50 SUB FOR AT263952 AND 109700969 0

1шт.

11

1117420832

Hose

SUB FOR AT263982 AND 1117420830

1шт.

12

8973780750

Bolt

(SUB FOR AT263855, 0280808120, 8943126990 , 8943126991)M8 X 12 FLANGE SUB FOR AT2638 55, 0280808120, 8943126990 AND 8943126991

1шт.

13

H77698

Tie Band

(SUB FOR AT264110 ) (SUB FOR 5097040313)L GTH = 250 SUB FOR AT264110 AND 5097040313

1шт.
