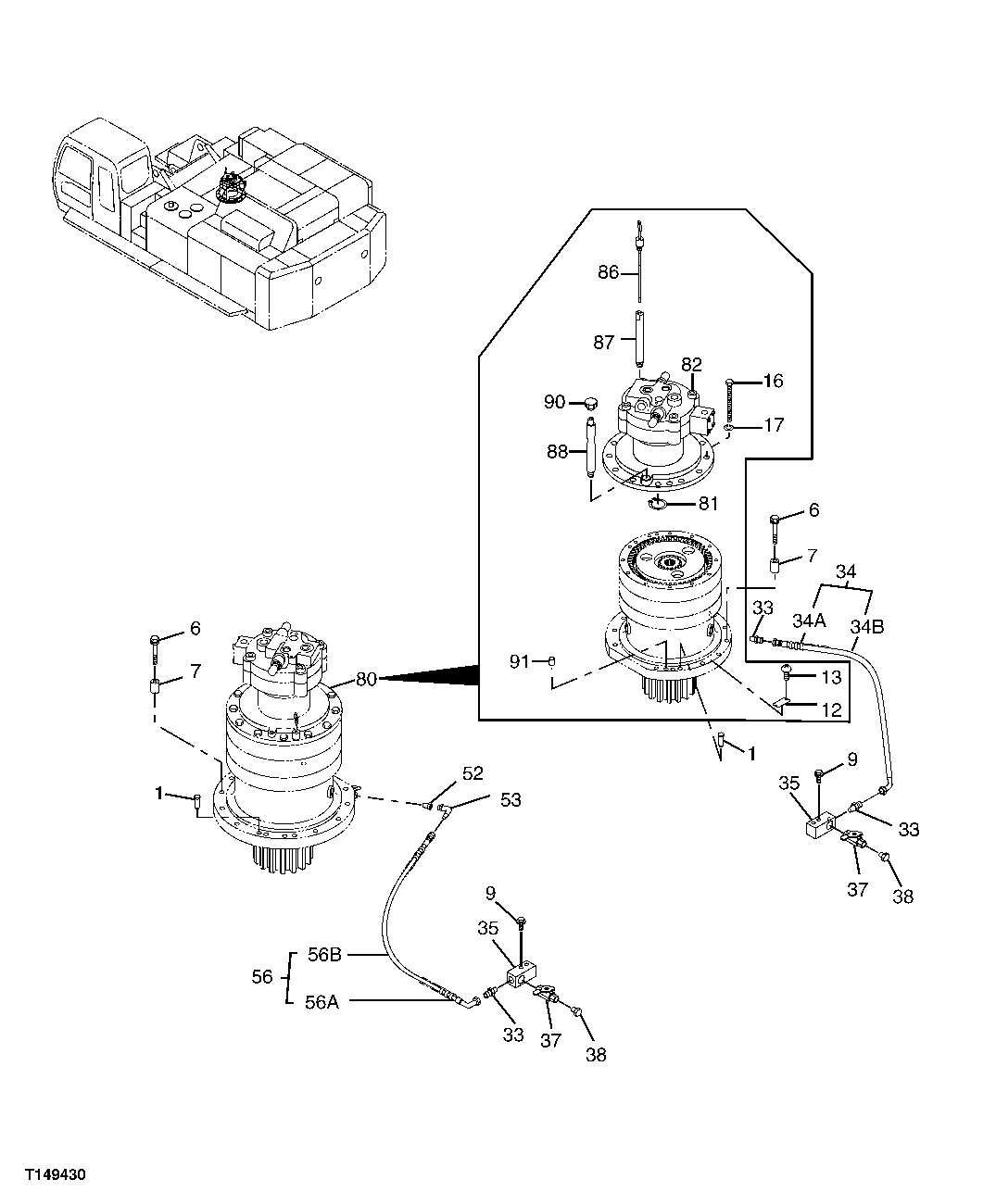

Запчасти John Deere 00C 333 - SWING DEVICE 4360 HYDRAULICS

1

4050722

Pin Fastener

(SUB FOR TH4050722)

4шт.

6

J932407

Bolt

(SUB FOR THJ932407)

28шт.

7

4219047

Spacer

(SUB FOR TH4219047)

28шт.

9

Cap Screw

( 19M5536 NLA)

4шт.

12

3053093

Plate

(SUB FOR AT154128)

1шт.

13

37H99

Screw

0.100" X 1/4"

2шт.

16

19M7645

Screw

M20 X 200

12шт.

17

12M7070

Lock Washer

20 mm

12шт.

33

4154653

Adapter Fitting

(SUB FOR TH100989)

2шт.

34

9212748

Hydraulic Hose

1шт.

34A

4452402

Hydraulic Hose

1шт.

34B

Hose Guard

(MAKE FROM XHG-075, CTL) (SUB FOR TH4320661, 4044420 ( 4327294 NLA))

1шт.

35

4348654

Housing

(SUB FOR TH4348654)

2шт.

37

4194712

Drain Valve

(SUB FOR TH108278)

2шт.

38

4294858

Drain Plug

(SUB FOR AT251217)

2шт.

52

4089893

Adapter Fitting

(SUB FOR TH4089893)

1шт.

53

4154658

Elbow Fitting

(SUB FOR TH101039)

1шт.

56

Hydraulic Hose

(CTL) ( 9212749 NLA) (MAKE FROM 4316010 AND XHG-075)

1шт.

56A

4316010

Hydraulic Hose

1шт.

56B

Hose Guard

(CTL) (MAKE FROM XHG-075 ) ( SUB FOR TH4376631 OR 4376631)

1шт.

80

9212745

Hydraulic Motor

2шт.

81

40M7047

Snap Ring

1шт.

82

4388207

Oil

NLA, (ORDER 4388207EX)

1шт.

4388207EX

Hydraulic Motor Reman

(SUB FOR TH4388207) (REMAN FOR 4388207)

1шт.

86

3090862

Dipstick

1шт.

87

4471860

Line

1шт.

88

8067457

Line

(SUB FOR TH8067457)

1шт.

90

4343365

Cap

1шт.

91

456336

Packing

(SUB FOR TH108281)

4шт.
