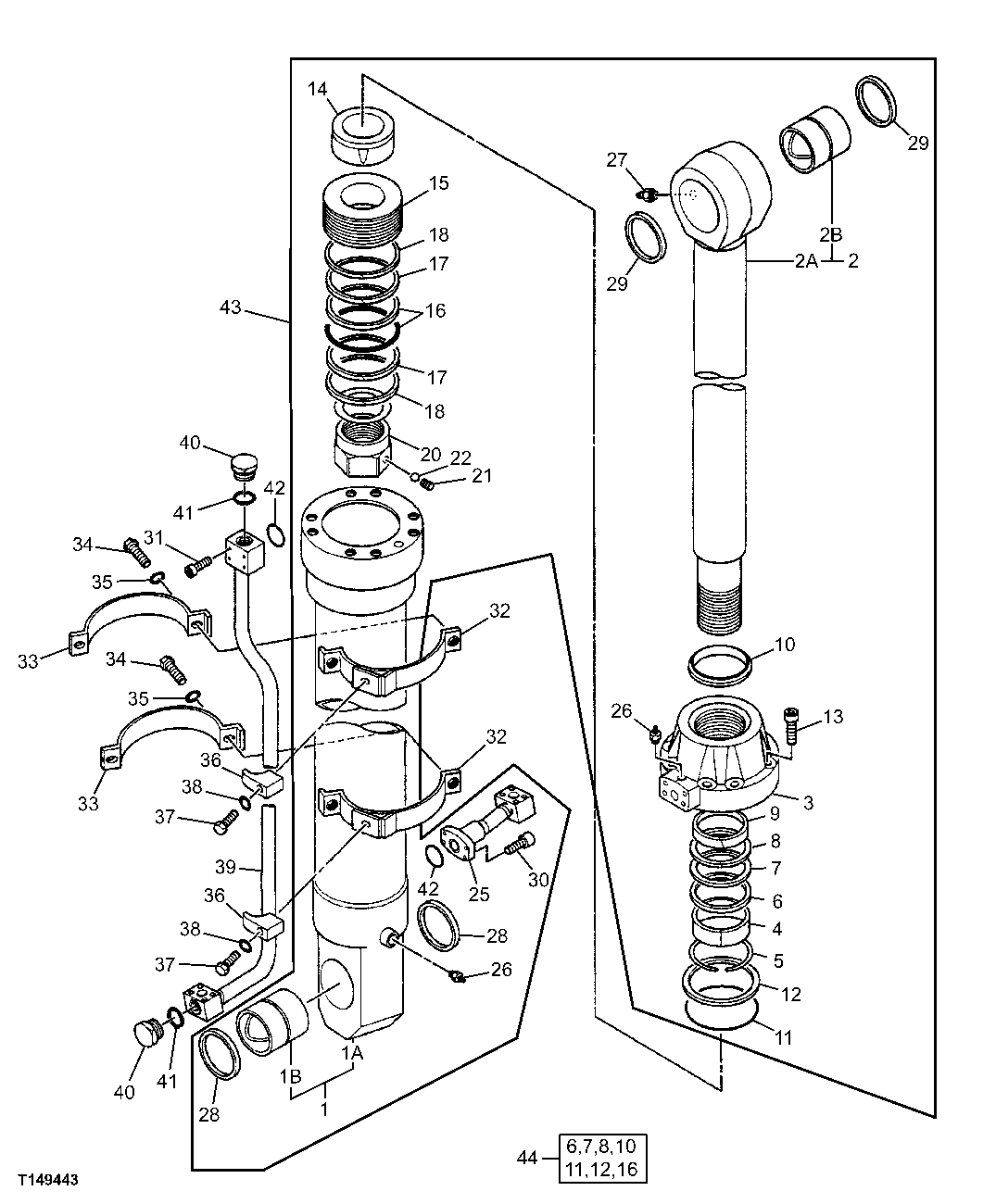

Запчасти John Deere 00C 330 - Hydraulic Bucket Cylinder, Standard Hd. Semi Long 3365 HYDRAULIC CYLINDERS
№
Артикул
Название
Примечание
Количество
1
4440411
Structural Tube
1шт.
Cylinder Reman
PG201406 NLA, ORDER 4440411, REMAN
1шт.
1A
Hydraulic Cylinder Barrel
NSEP
1шт.
1B
4609099
Bushing
SUB FOR TH0379902 OR 0379902
1шт.
2
4440414
Rod
1шт.
Cylinder Reman
PG201408 NLA, ORDER 4440414, REMAN
1шт.
2A
Rod
NSEP
1шт.
2B
4609100
Bushing
SUB FOR TH0380003 OR 0380003
1шт.
3
0764901
Cylinder Head
1шт.
4
0379806
Bushing
SUB FOR TH0379806
1шт.
5
0191415
Snap Ring
SUB FOR TH0191415
1шт.
6
0417405
Ring
SUB FOR TH0417405
1шт.
7
4091814
Ring
SUB FOR TH4094949
1шт.
8
0242505
Back-Up Ring
SUB FOR TH0242505
1шт.
9
0417406
Ring
SUB FOR TH0417406, 4S01015 OR 4S00759
1шт.
10
0977905
Ring
SUB FOR 4438196
1шт.
11
AT264241
O-Ring
SUB FOR AT132155 OR A811180
1шт.
12
AT264243
Back-Up Ring
SUB FOR AT132168 OR 4S00079
1шт.
13
4104472
Bolt
SUB FOR AT132322
8шт.
14
0609203
Bearing
1шт.
15
0764902
Piston
1шт.
16
T201905
Seal
SUB FOR 4S00081 AND AT132169
1шт.
17
AT264290
Ring
SUB FOR AT201586
2шт.
18
AT264245
Wear Ring
SUB FOR AT132170
2шт.
20
0379814
Nut
SUB FOR TH0379814
1шт.
21
0379815
Set Screw
SUB FOR TH0379815
1шт.
22
0109124
Ball
SUB FOR TH0109124
1шт.
25
0998506
Oil Line
SUB FOR 0380008
1шт.
26
0643016
Bleed Valve
SUB FOR TH4381187 OR 4381187
2шт.
27
TH100074
Lubrication Fitting
1шт.
30
19M8734
Screw
M14 X 45 SUB FOR TH0158883
4шт.
31
0171719
Cap Screw
SUB FOR TH0171719
4шт.
32
0353017
Band
SUB FOR AT132326
2шт.
33
0353018J
Half Clamp
SUB FOR AT132327 OR 0353018
2шт.
36
0972307
Clamp
SUB FOR AT132325, 0353016 OR 0353016J
2шт.
37
19M4789
Cap Screw
M14 X 80
2шт.
38
12H317
Lock Washer
9/16"
2шт.
39
0764903
Line
ALSO ORDER (4) 19M8734; SUB FOR 0494403
1шт.
40
0379823
Plug
SUB FOR TH0379823
2шт.
42
AT264254
O-Ring
SUB FOR AT132423 OR 955612
2шт.
43
4604690J
Hydraulic Cylinder
SUB FOR 4604690, 443703 9J, 4439851 OR 4439851EX
1шт.
44
4660142
Seal Kit
SUB FOR 4438693
1шт.
Выбрано товаров: 47
