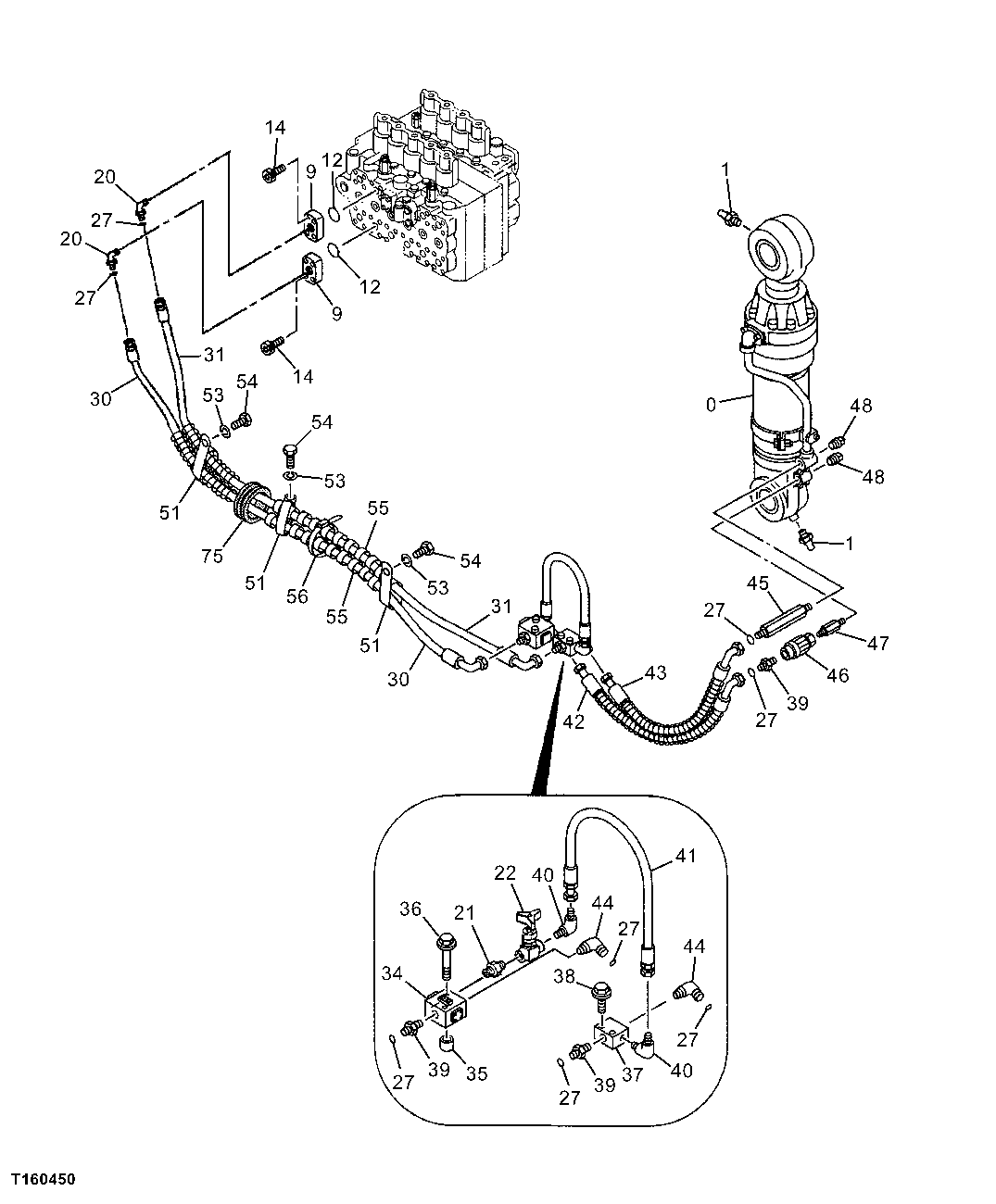

Запчасти John Deere 00C 325 - HIGH PRESSURE LINES COUNTERWEIGHT REMOVAL DEVICE 3363 LINES, HOSES AND FITTINGS

0

4392996

Cylinder

1шт.

1

TH100074

Lubrication Fitting

2шт.

9

4395369

Flange Fitting

2шт.

12

T72216

O-Ring

2шт.

13

4255567

Bushing

1шт.

14

19M8734

Screw

M14 X 45

8шт.

20

4260154

Elbow Fitting

2шт.

4506418

O-Ring

1шт.

21

94-1703

Adapter Fitting

1шт.

22

4220806

Flow Control Hyd. Valve

1шт.

27

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

8шт.

30

4466248

Hydraulic Hose

1шт.

31

4466247

Hydraulic Hose

1шт.

34

4240863

Flow Control Hyd. Valve

1шт.

35

4131346

Spacer

2шт.

36

19M7875

Cap Screw

M10 X 70

2шт.

12M7066

Lock Washer

10 mm

2шт.

37

4240862

Manifold

1шт.

38

19M8655

Cap Screw

M10 X 55 (SUB FOR J011055)

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

4217265

Adapter Fitting

3шт.

40

4154656

Elbow Fitting

2шт.

41

4209727

Hydraulic Hose

1шт.

42

4395934

Hydraulic Hose

1шт.

43

4374495

Hydraulic Hose

1шт.

44

4274178

Elbow Fitting

2шт.

45

3081079

Adapter Fitting

1шт.

46

4146466

Pneumatic Pressure Valve

1шт.

47

4261624

Adapter Fitting

1шт.

48

94-2024

Fitting Plug

2шт.

51

R134002

Clamp

(SUB FOR 4193816)

3шт.

53

12M7066

Lock Washer

10 mm

3шт.

54

19M7938

Cap Screw

M10 X 20

3шт.

55

Hose Guard

(MAKE FROM XHG-075, CTL) (SU B FOR 4044420 ( 4327294 NLA))

4шт.

56

H77698

Tie Band

4шт.
