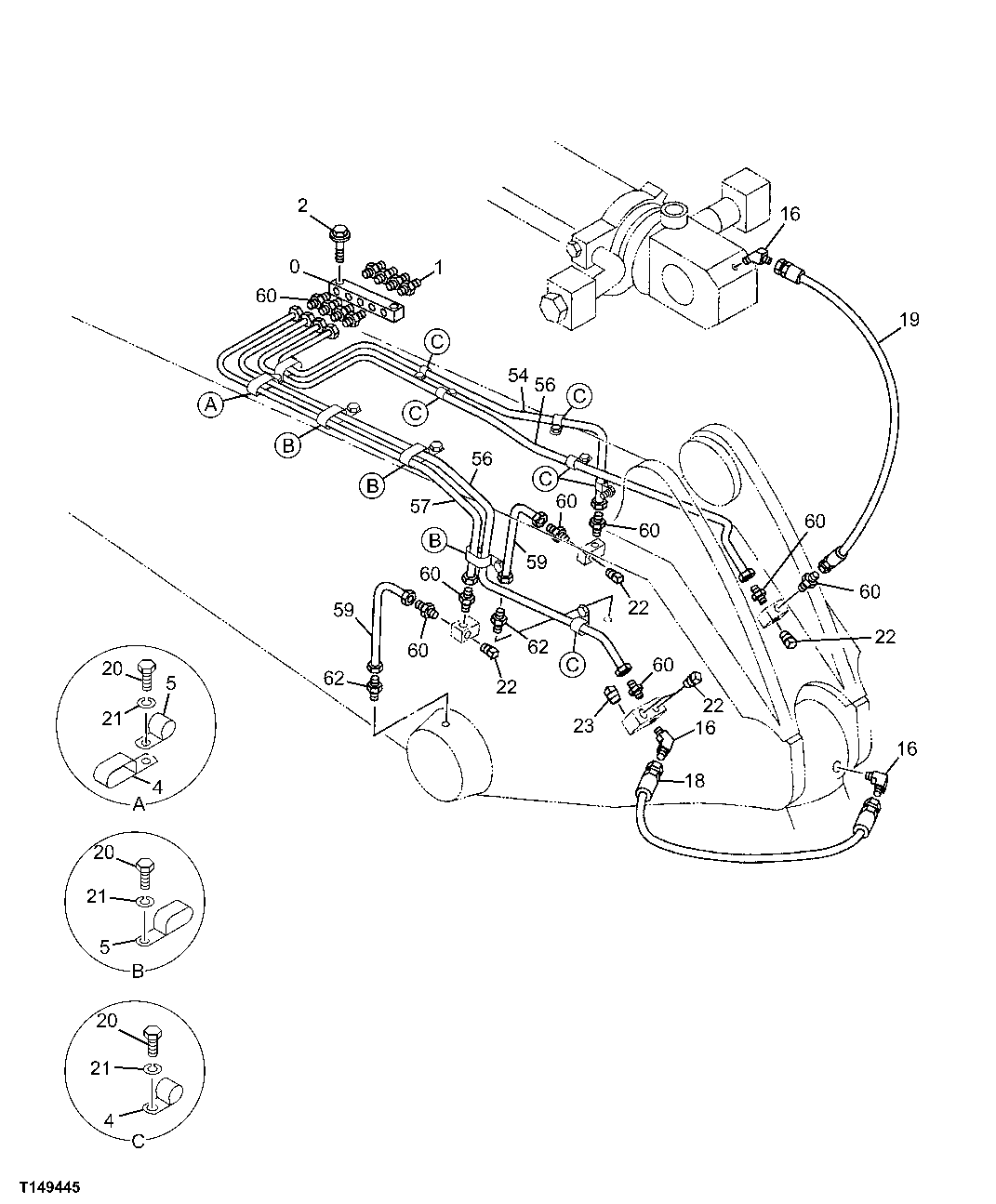

Запчасти John Deere 00C 322 - LUBRICATION LINES (MASS EXCAVATING ARM) 3363 LINES, HOSES AND FITTINGS

0

4274903

Junction Block

(SUB FOR AT202119)

1шт.

1

JD7769

Lubrication Fitting

(SUB FOR TH100364)

4шт.

2

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

4

4192018

Clip

(SUB FOR TH110498)

2шт.

5

4190261

Clip

(SUB FOR TH109649)

6шт.

16

4154655

Elbow Fitting

(SUB FOR TH101056)

3шт.

18

4297998

Hydraulic Hose

(SUB FOR TH4297998)

1шт.

19

4340881

Hydraulic Hose

(SUB FOR TH4340881)

1шт.

20

19M8324

Cap Screw

M10 X 16

7шт.

21

12M7066

Lock Washer

10 mm

7шт.

22

T115963

Fitting Plug

5шт.

23

M800462

Plug

1шт.

54

4453287

Hydraulic Hose

1шт.

56

AE42281

Hydraulic Hose

2шт.

57

Hydraulic Hose - Fabricate

( 4429435 NLA)

1шт.

59

AT132498

Hydraulic Hose

2шт.

60

4154651

Adapter Fitting

(SUB FOR TH100963)

11шт.

62

4298745

Elbow Fitting

2шт.
