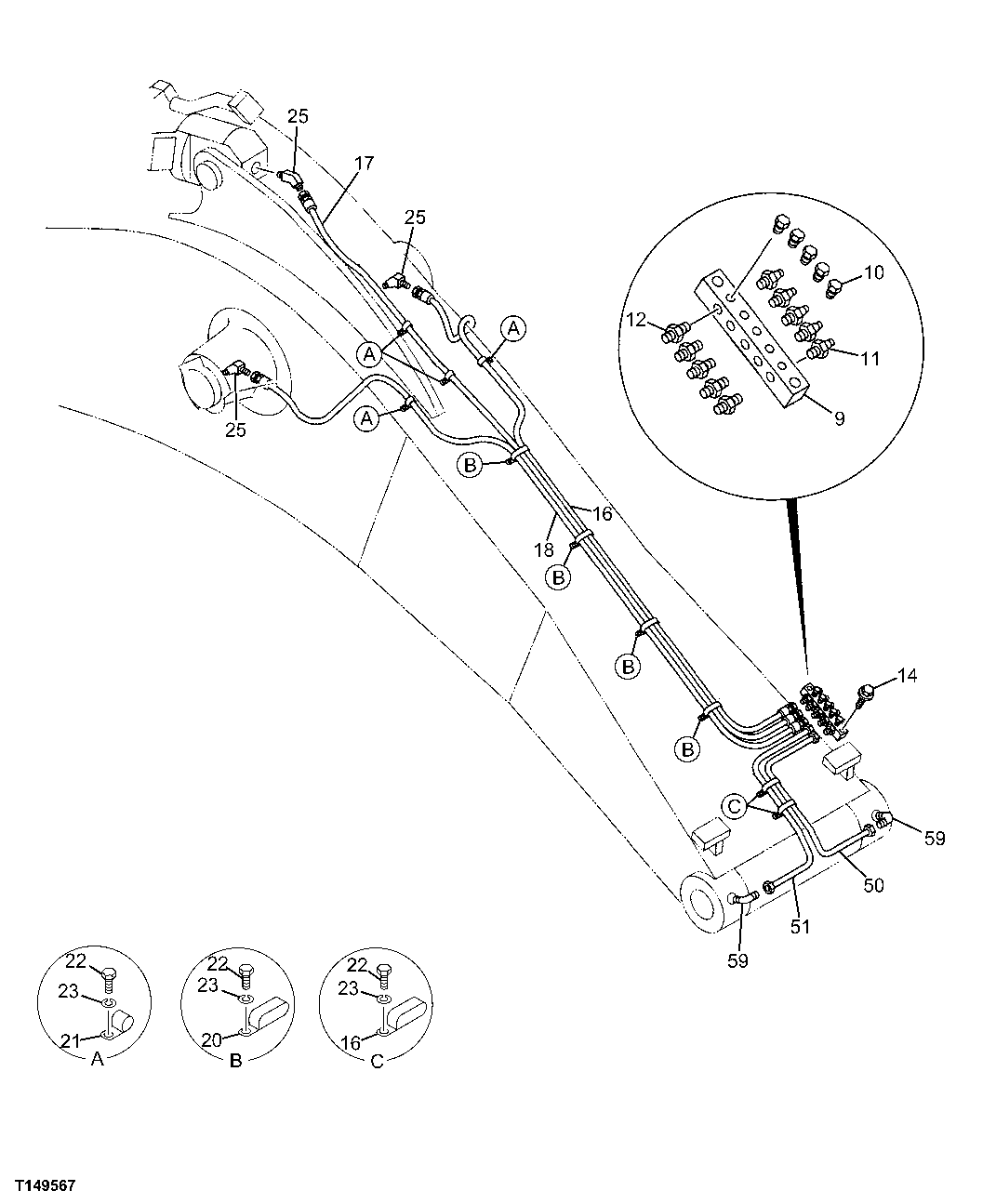

Запчасти John Deere 00C 320 - LUBRICATION LINES (MASS EXCAVATING BOOM) 3363 LINES, HOSES AND FITTINGS

9

4337738

Junction Block

(SUB FOR TH4337738)

1шт.

10

T115963

Fitting Plug

5шт.

11

TH100074

Lubrication Fitting

5шт.

12

4154651

Adapter Fitting

(SUB FOR TH100963)

5шт.

14

19M7658

Cap Screw

M10 X 50

2шт.

12M7066

Lock Washer

10 mm

2шт.

16

4316009

Hose

(SUB FOR AT201238 ) (SUB FOR AT167078)

1шт.

4192018

Clip

(SUB FOR TH110498)

2шт.

17

4224467

Hydraulic Hose

(SUB FOR TH4224467)

1шт.

18

4364320

Hydraulic Hose

(SUB FOR TH4364320)

1шт.

20

T152608

Clamp

(SUB FOR AT154207)

4шт.

21

4190261

Clip

(SUB FOR TH109649)

3шт.

22

19M8324

Cap Screw

M10 X 16

9шт.

23

12M7066

Lock Washer

10 mm

9шт.

25

4154655

Elbow Fitting

(SUB FOR TH101056)

3шт.

50

4247365-S

Hydraulic Hose

(SUB FOR 4317872)

1шт.

51

AE42281

Hydraulic Hose

(SUB FOR 4248695)

1шт.

59

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.
