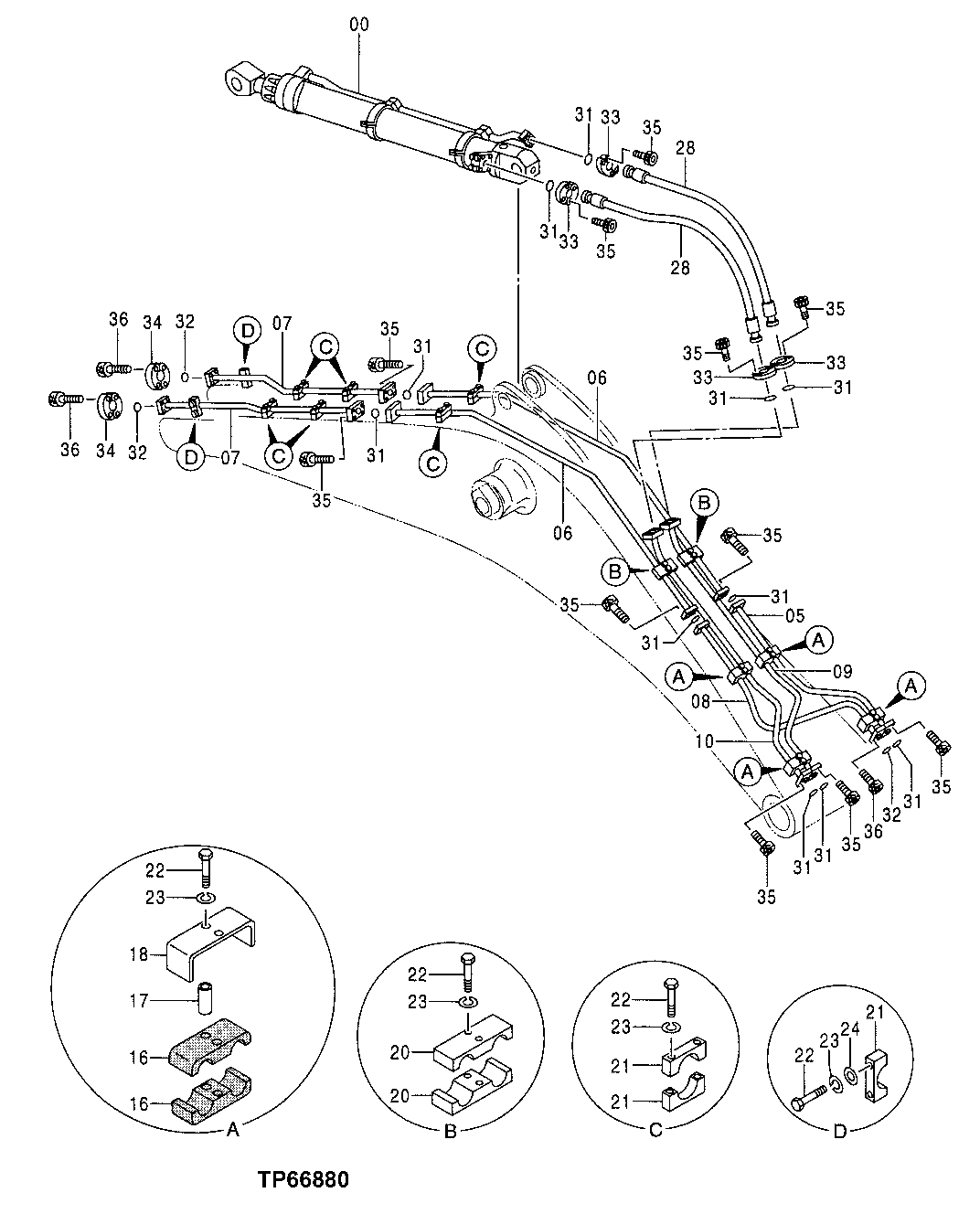

Запчасти John Deere 00C 315 - FRONT LINES (MASS EXCAVATING BOOM) 3363 LINES, HOSES AND FITTINGS

0

Cylinder

Arm See Arm Cylinder Page For Detail

1шт.

5

8065036

Oil Line

(SUB FOR TH8065036)

1шт.

6

8065037

Oil Line

(SUB FOR TH8065037)

2шт.

7

8047133

Oil Line

(SUB FOR TH8047133)

2шт.

8

8065038

Oil Line

(SUB FOR TH8065038)

1шт.

9

8065039

Oil Line

(SUB FOR TH8065039)

1шт.

10

8065040

Oil Line

(SUB FOR TH8065040)

1шт.

16

4342703

Half Clamp

(SUB FOR TH4342703)

8шт.

17

4342699

Spacer

(SUB FOR TH4342699)

8шт.

18

4342695

Block Clamp

(SUB FOR TH4342695)

4шт.

20

4342772

Half Clamp

(SUB FOR TH4342772)

4шт.

21

4342723

Half Clamp

(SUB FOR TH4342723)

14шт.

22

19M7349

Cap Screw

M12 X 95

28шт.

23

12H301

Lock Washer

1/2"

28шт.

24

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

28

4414284

Hydraulic Hose

2шт.

31

T34248

O-Ring

47.219 X 3.531 mm (1-55/64" X 0.139")

11шт.

32

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

3шт.

33

4075854

Flange Fitting

(SUB FOR TH4075854)

8шт.

34

AT131685

Flange Fitting

4шт.

35

19M8208

Screw

M16 X 50

44шт.

36

19M8734

Screw

M14 X 45

12шт.
