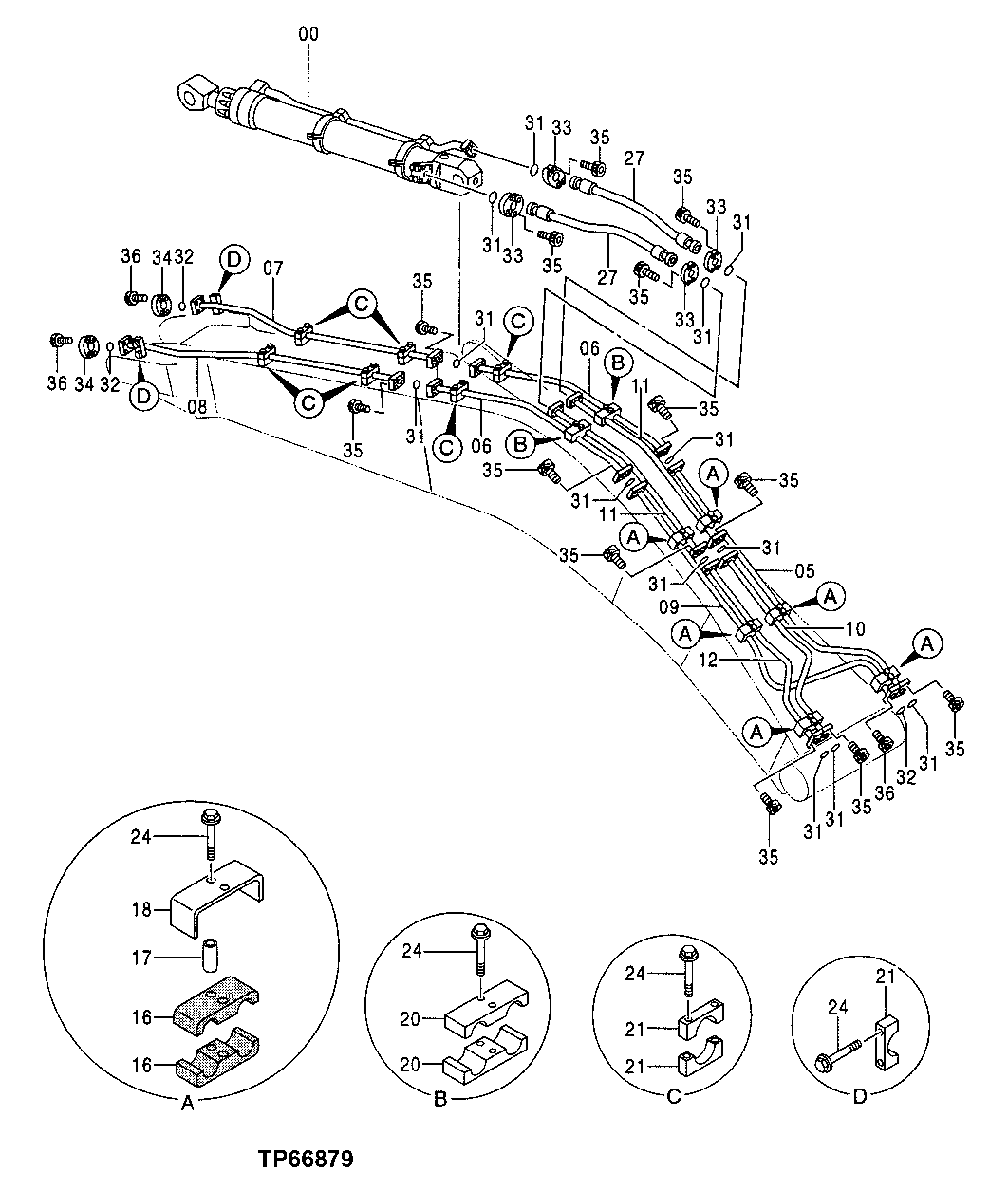

Запчасти John Deere 00C 314 - ARM AND BUCKET HYDRAULIC LINES ON BOOM (STD. AND HEAVY DUTY) 3363 LINES, HOSES AND FITTINGS

0

Cylinder

Arm See Arm Cylinder Page For Detail

1шт.

5

8061204J

Oil Line

(SUB FOR TH8061204 OR 8061204)

1шт.

6

8061205J

Oil Line

Standard Boom (SUB FOR TH8061205 OR 8061205)

2шт.

8085545

Line

Heavy Duty Boom

2шт.

7

8041209J

Oil Line

(SUB FOR TH8041209 OR 8041209)

1шт.

8

8041210J

Oil Line

(SUB FOR TH8041210 OR 8041210)

1шт.

9

8061206J

Oil Line

(SUB FOR TH8061206 OR 8061206)

1шт.

10

8061207J

Oil Line

(SUB FOR TH8061207 OR 8061207)

1шт.

11

8061208J

Oil Line

Standard Boom (SUB FOR TH8061208 OR 8061208)

2шт.

8085544

Line

Heavy Duty Boom

2шт.

12

8061209J

Oil Line

(SUB FOR TH8061209 OR 8061209)

1шт.

16

4342703

Half Clamp

(SUB FOR TH4342703)

12шт.

17

4342699

Spacer

(SUB FOR TH4342699)

12шт.

18

4342695

Block Clamp

(SUB FOR TH4342695)

6шт.

20

4342772

Half Clamp

(SUB FOR TH4342772)

4шт.

21

4342723

Half Clamp

(SUB FOR TH4342723)

14шт.

24

J021295

Bolt

(SUB FOR THJ021295)

32шт.

27

4414283

Hydraulic Hose

2шт.

31

T34248

O-Ring

47.219 X 3.531 mm (1-55/64" X 0.139")

13шт.

32

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

3шт.

33

4075854

Flange Fitting

(SUB FOR TH4075854)

8шт.

34

AT131685

Flange Fitting

4шт.

35

19M8208

Screw

M16 X 50

52шт.

36

19M8734

Screw

M14 X 45

12шт.
