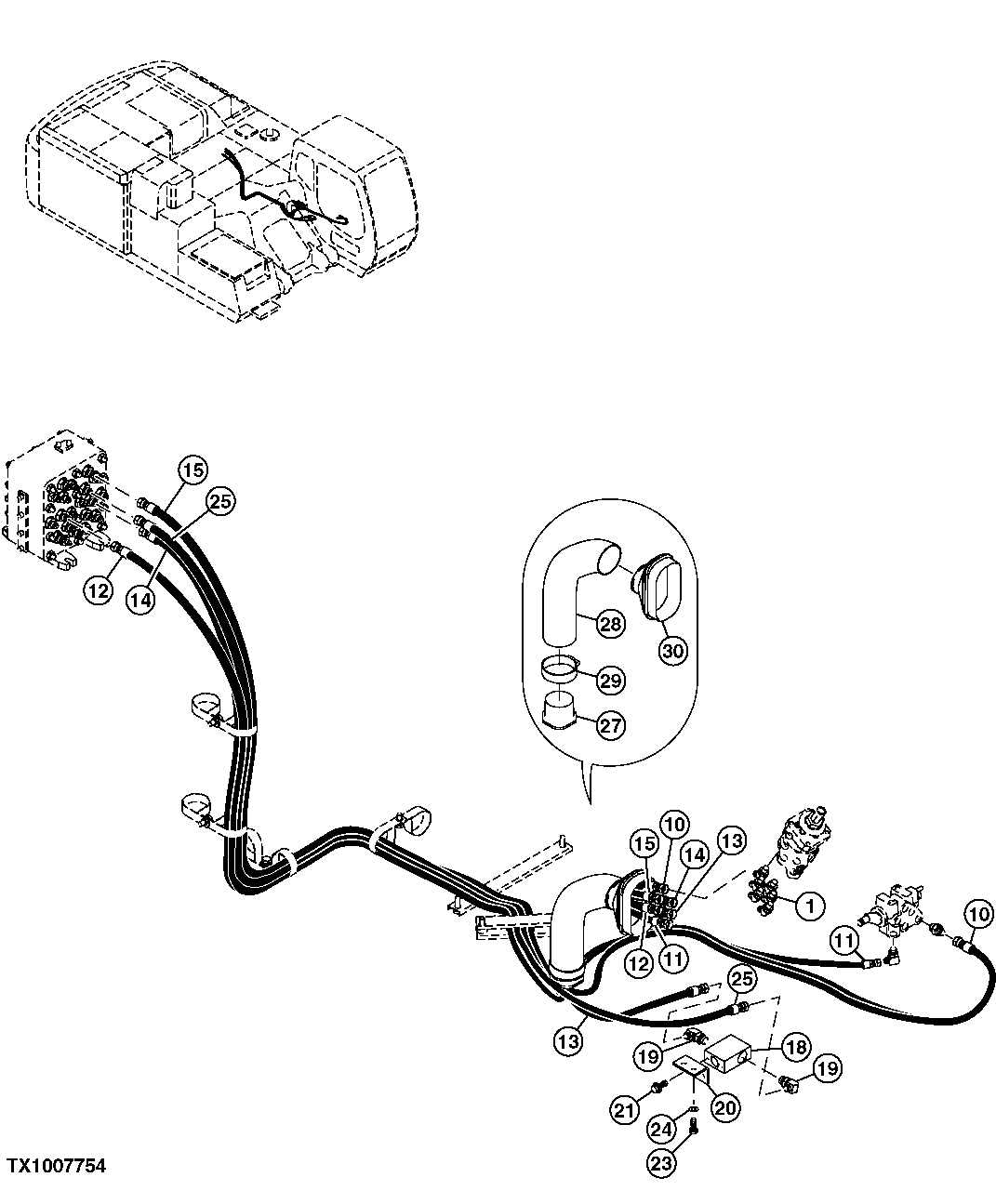

Запчасти John Deere 00C 312 - PILOT HYDRAULIC LINES (RIGHT PILOT CONTROLLER) 3363 LINES, HOSES AND FITTINGS

1

A852223

Elbow Fitting

SUB FOR THA852223

6шт.

M800650

Packing

1шт.

10

4450438

Hydraulic Hose

1шт.

11

4451723

Hydraulic Hose

SUB FOR 4455949

1шт.

12

4685196

Hydraulic Hose

SUB FOR 4461269

1шт.

13

4450440

Hydraulic Hose

1шт.

14

4685196

Hydraulic Hose

SUB FOR 4461270

1шт.

15

4461271

Hydraulic Hose

1шт.

18

4198473

Hyd Actuated Control Valve

1шт.

19

A852333

Elbow Fitting

SUB FOR P67989

2шт.

CH11570

O-Ring

1шт.

20

4449773

Bracket

SUB FOR TH4449773

1шт.

21

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

23

19M7402

Cap Screw

M10 X 25

2шт.

24

12M7066

Lock Washer

10 mm

2шт.

25

4450443

Hydraulic Hose

1шт.

27

3079728

Bushing

SUB FOR AT250589

1шт.

28

4351175

Hose

SUB FOR AT213957

1шт.

29

4351774

Clamp

SUB FOR AT213962

1шт.

30

2045998

Bushing

SUB FOR TH2045998

1шт.
