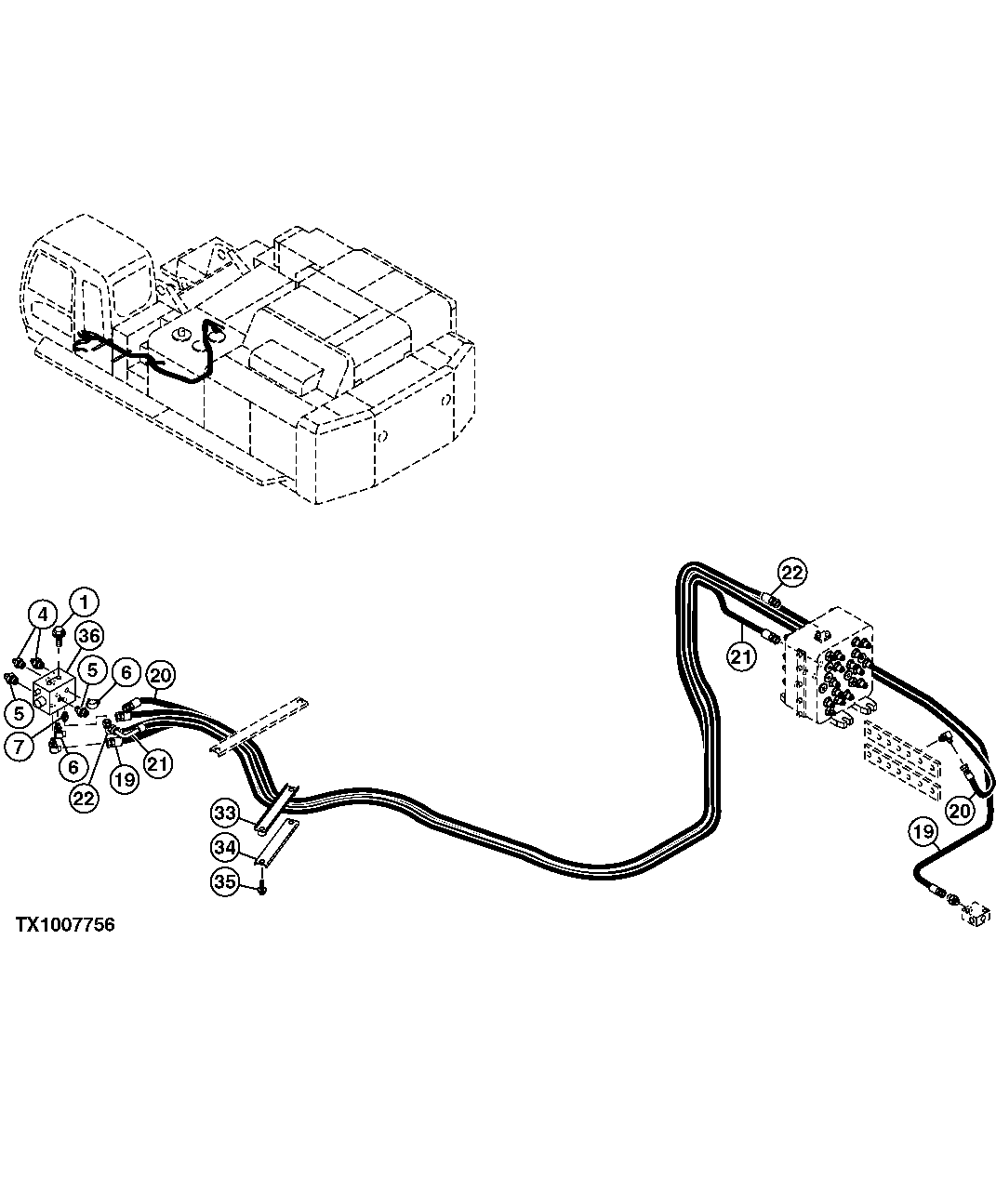

Запчасти John Deere 00C 311 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

4

4261938

Fitting

(SUB FOR AT154285)

2шт.

CH11570

O-Ring

1шт.

5

A852133

Adapter Fitting

(SUB FOR P67978)

2шт.

CH11570

O-Ring

1шт.

6

A852333

Elbow Fitting

(SUB FOR P67989)

3шт.

CH11570

O-Ring

1шт.

7

A852122

Adapter Fitting

(SUB FOR P67968)

1шт.

M800650

Packing

1шт.

19

4461249

Hydraulic Hose

1шт.

20

4450431

Hydraulic Hose

1шт.

21

4472012

Hydraulic Hose

1шт.

22

4472010

Hydraulic Hose

1шт.

33

9754739

Clamp

(SUB FOR TH9754739)

1шт.

34

4436124

Clamp

(SUB FOR TH4436124)

1шт.

35

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

36

4407253

Flow Control Hyd. Valve

1шт.
