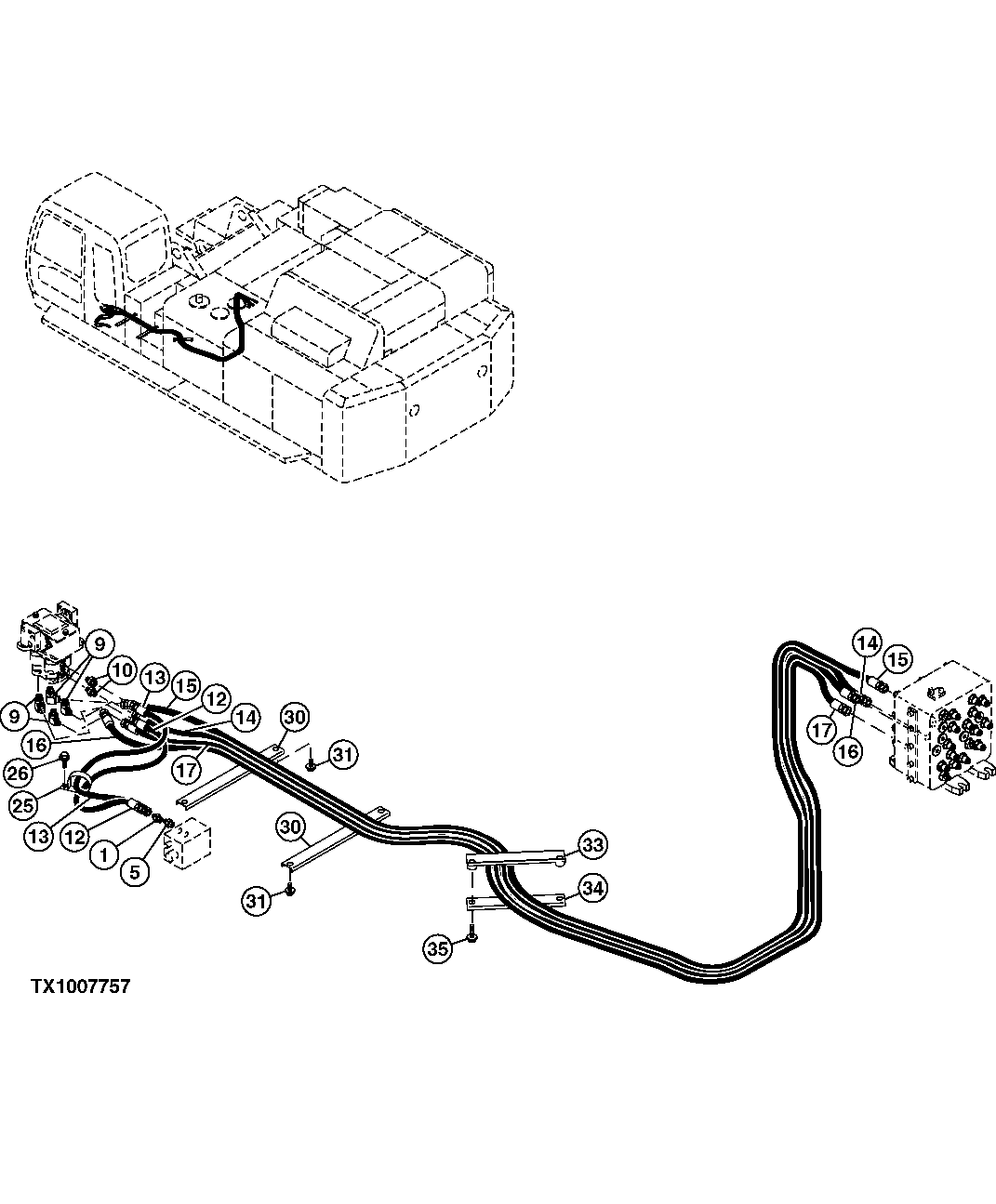

Запчасти John Deere 00C 310 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

4261938

Fitting

(SUB FOR AT154285)

1шт.

CH11570

O-Ring

1шт.

5

A852133

Adapter Fitting

(SUB FOR P67978)

1шт.

CH11570

O-Ring

1шт.

9

A852323

Elbow Fitting

(SUB FOR P67988)

4шт.

M800650

Packing

1шт.

10

A852123

Adapter Fitting

(SUB FOR P67976)

2шт.

M800650

Packing

1шт.

12

4437844

Hydraulic Hose

(SUB FOR 4450427)

1шт.

13

AT48428

Hydraulic Hose

(SUB FOR 4450428)

1шт.

14

4461245

Hydraulic Hose

1шт.

15

4461246

Hydraulic Hose

1шт.

16

4461247

Hydraulic Hose

1шт.

17

4461248

Hydraulic Hose

1шт.

25

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

26

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

30

4341877

Channel

(SUB FOR AT213887)

2шт.

31

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

33

9754739

Clamp

(SUB FOR TH9754739)

1шт.

34

4436124

Clamp

(SUB FOR TH4436124)

1шт.

35

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.
