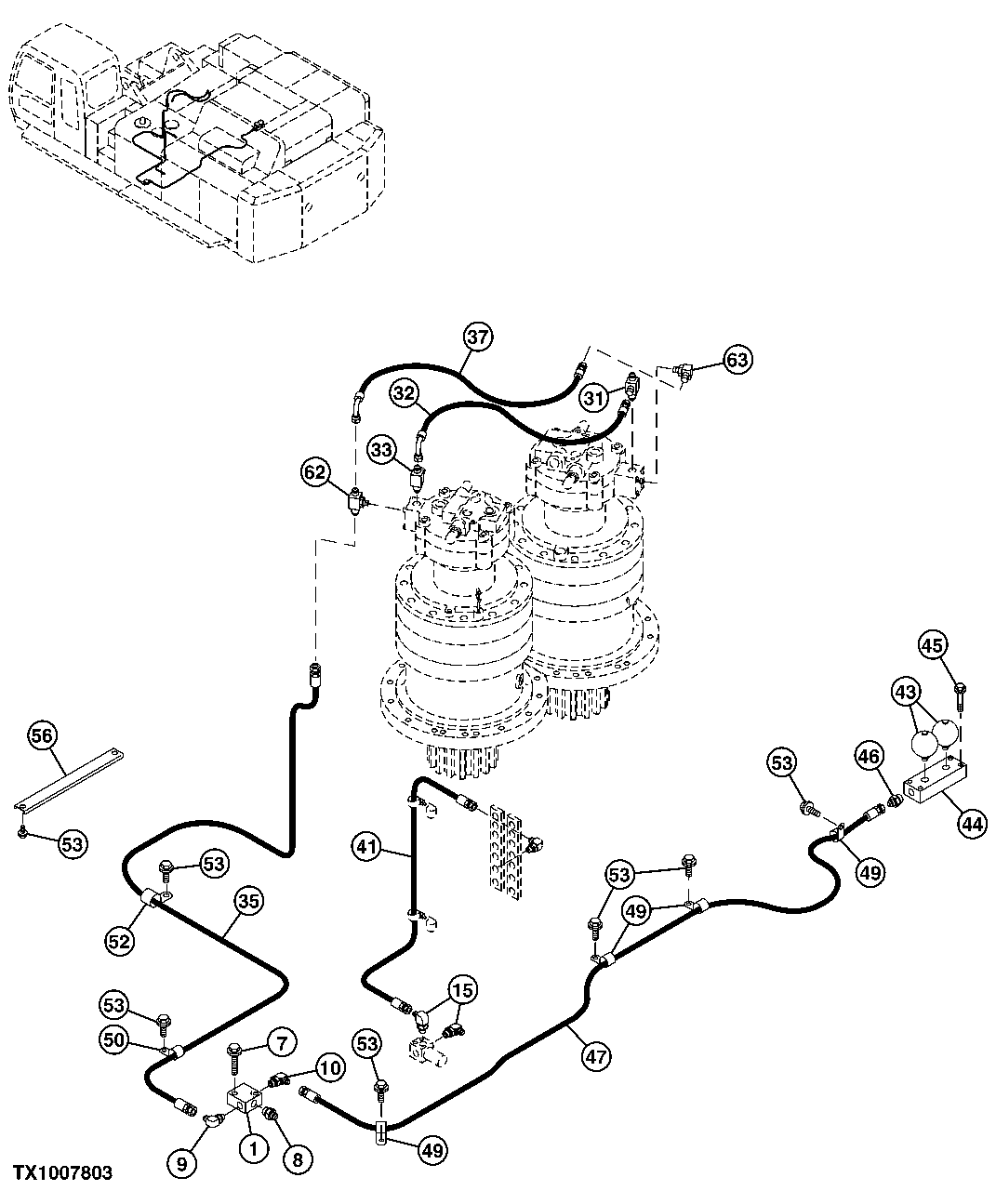

Запчасти John Deere 00C 307 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

9162817

Check Valve

SUB FOR 9123033

1шт.

7

19M8348

Cap Screw

M12 X 65

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

8

A852144

Adapter Fitting

SUB FOR THA852144

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

9

A852333

Elbow Fitting

SUB FOR P67989

1шт.

CH11570

O-Ring

1шт.

10

A852323

Elbow Fitting

SUB FOR P67988

1шт.

M800650

Packing

1шт.

15

A852323

Elbow Fitting

SUB FOR P67988

2шт.

M800650

Packing

1шт.

31

A852422

Tee Fitting

SUB FOR THA852422

1шт.

M800650

Packing

1шт.

32

4437907

Hydraulic Hose

1шт.

33

4239712

Tee Fitting

SUB FOR TH4239712

1шт.

M800650

Packing

1шт.

35

4450763

Hydraulic Hose

1шт.

37

4442242

Hydraulic Hose

1шт.

41

4455829

Hydraulic Hose

1шт.

43

FYA00025723

Hydraulic Accumulator

SUB FOR AT162984 OR 4195978

2шт.

CH14634

O-Ring

1шт.

44

3046868

Manifold

SUB FOR TH3046868

1шт.

45

19M7742

Cap Screw

M10 X 65

4шт.

12M7066

Lock Washer

10 mm

4шт.

46

A852133

Adapter Fitting

SUB FOR P67978

1шт.

CH11570

O-Ring

1шт.

47

4607990

Hose

SUB FOR TH4431841, 4431841

1шт.

49

R73384

Clamp

SUB FOR TH108597 OR 4190253

4шт.

50

AT121321

Hose Clamp

2шт.

52

N198631

Clamp

SUB FOR TH109598 OR 4190265

4шт.

53

19M7938

Cap Screw

M10 X 20

12шт.

12M7066

Lock Washer

10 mm

12шт.

56

4425177

Channel

SUB FOR TH4425177

1шт.

62

A852523

Tee Fitting

1шт.

M800650

Packing

1шт.

63

A852323

Elbow Fitting

SUB FOR P67988

1шт.

M800650

Packing

1шт.
