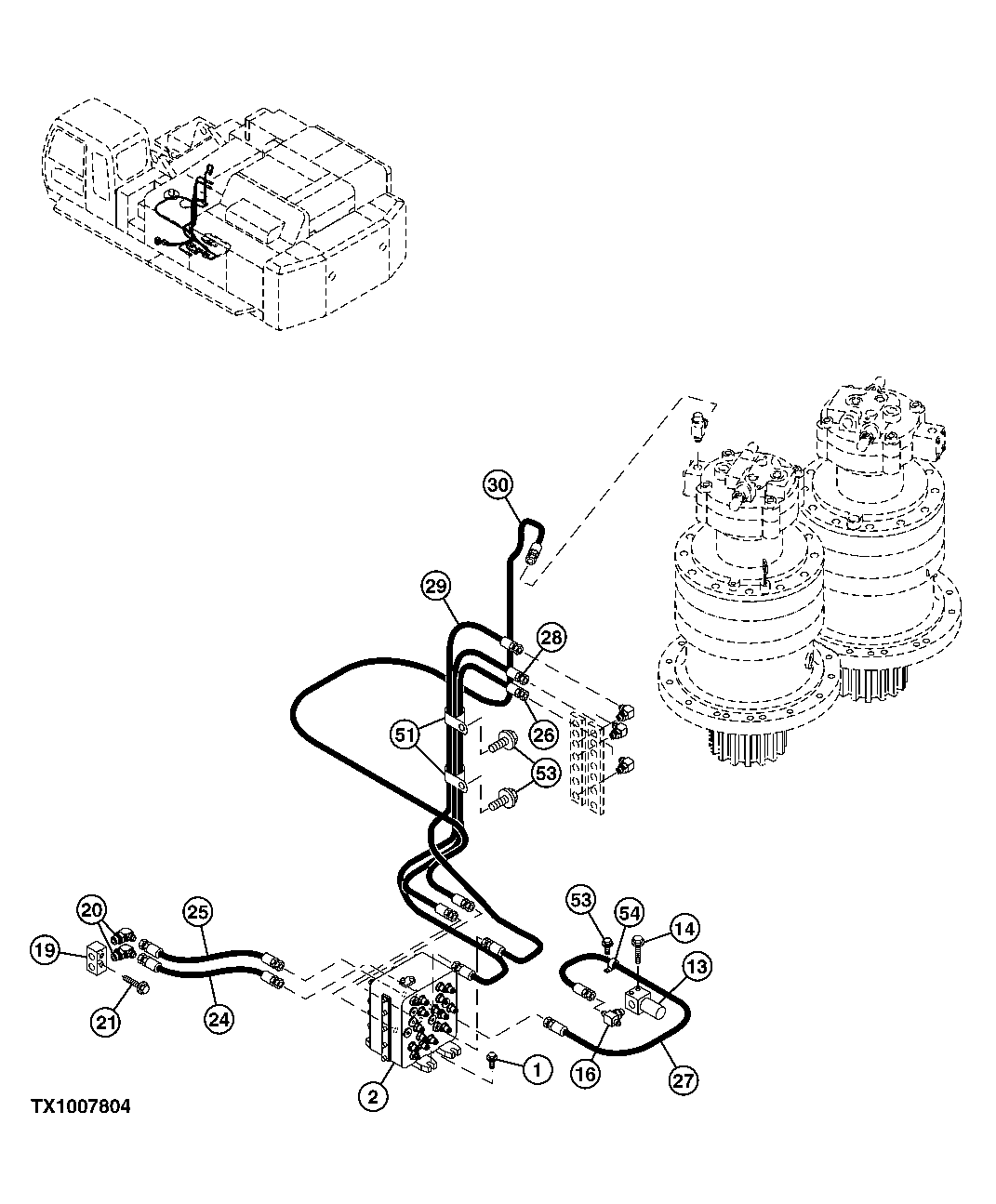

Запчасти John Deere 00C 306 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

1

19M7358

Cap Screw

M10 X 40

4шт.

12M7066

Lock Washer

10 mm

4шт.

2

4470661

Flow Control Hyd. Valve

1шт.

13

4729022

Solenoid Valve

SUB FOR AT202111 AND 4261289

1шт.

14

Screw With Washer

J010860 NLA

2шт.

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

16

A852523

Tee Fitting

1шт.

M800650

Packing

1шт.

19

3090109

Manifold

SUB FOR TH3090109

1шт.

20

A852323

Elbow Fitting

SUB FOR P67988

2шт.

M800650

Packing

1шт.

21

Cap Screw

19M5536 NLA

2шт.

12M7066

Lock Washer

10 mm

2шт.

24

4678895

Hose

SUB FOR 4450908

1шт.

25

4450909

Hydraulic Hose

1шт.

26

4450910

Hydraulic Hose

1шт.

27

4450911

Hydraulic Hose

1шт.

28

4450912

Hydraulic Hose

1шт.

29

4450913

Hydraulic Hose

1шт.

30

4469032

Hydraulic Hose

1шт.

51

XCL-29

Hose Clamp

SUB FOR TH110522 OR 4193848

2шт.

53

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

54

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

1шт.
