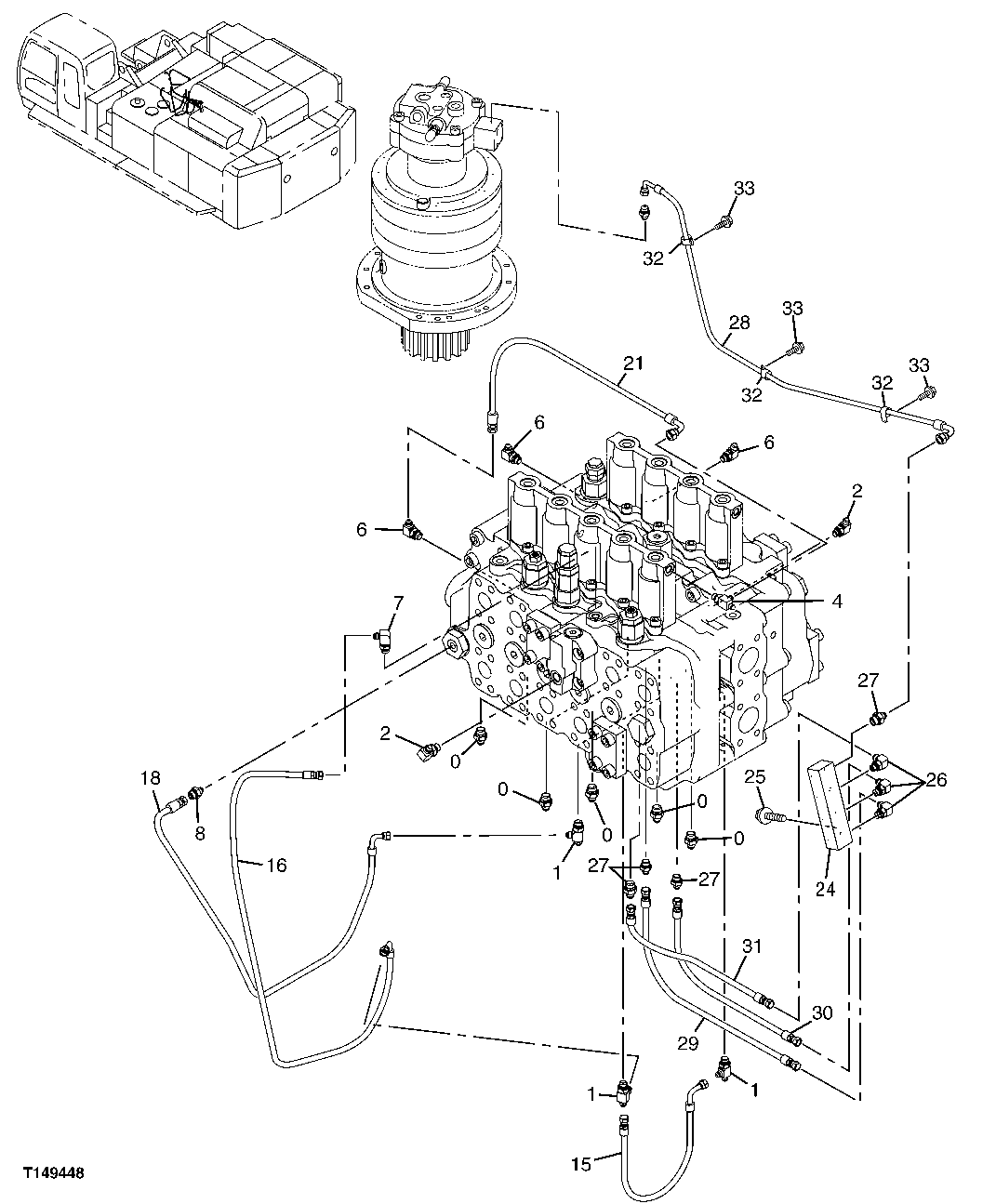

Запчасти John Deere 00C 303 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

0

A852133

Adapter Fitting

(SUB FOR P67978)

5шт.

CH11570

O-Ring

1шт.

1

A852433

Tee Fitting

(SUB FOR THA852433)

3шт.

CH11570

O-Ring

1шт.

2

A852333

Elbow Fitting

(SUB FOR P67989)

2шт.

CH11570

O-Ring

1шт.

4

A852422

Tee Fitting

(SUB FOR THA852422)

1шт.

M800650

Packing

1шт.

6

4154670

Elbow Fitting

(SUB FOR A852322, P67984 OR THA852322)

3шт.

M800650

Packing

1шт.

7

A852323

Elbow Fitting

(SUB FOR P67988)

1шт.

M800650

Packing

1шт.

8

A852123

Adapter Fitting

(SUB FOR P67976)

1шт.

M800650

Packing

1шт.

15

4449629

Hydraulic Hose

1шт.

16

4449630

Hydraulic Hose

1шт.

18

4449632

Hydraulic Hose

1шт.

21

4427782

Hydraulic Hose

(SUB FOR 4437412)

1шт.

24

4451778

Manifold

1шт.

25

19M8655

Cap Screw

M10 X 55

2шт.

12M7066

Lock Washer

10 mm

2шт.

26

4154670

Elbow Fitting

(SUB FOR A852322, P67984 OR THA852322)

3шт.

M800650

Packing

1шт.

27

A852122

Adapter Fitting

(SUB FOR P67968)

4шт.

M800650

Packing

1шт.

28

4451815

Hydraulic Hose

1шт.

29

4451816

Hydraulic Hose

1шт.

30

4451817

Hydraulic Hose

1шт.

31

4451818

Hydraulic Hose

1шт.

32

AH79175

Clip

(SUB FOR TH108600 OR 4190272)

3шт.

33

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.
