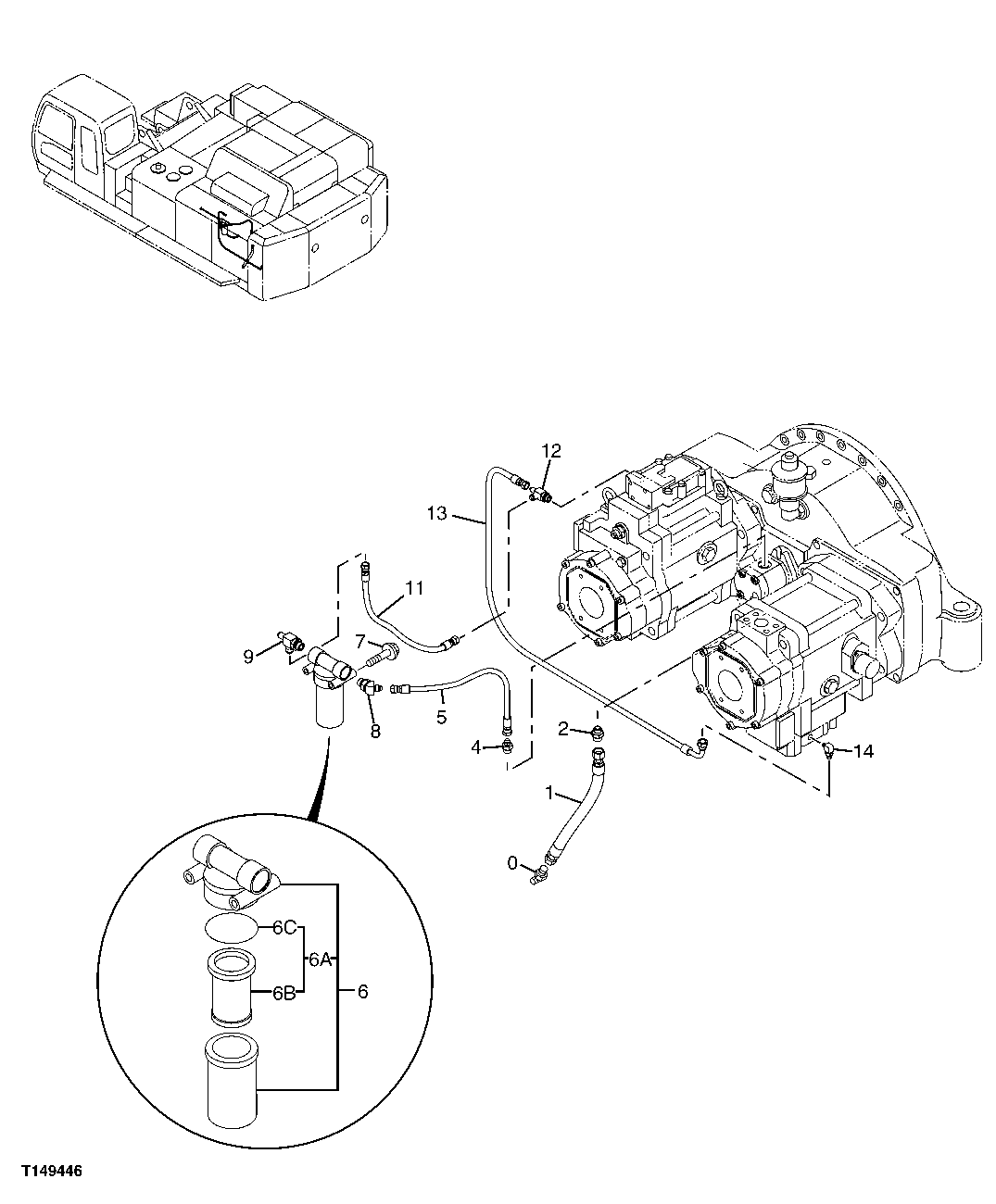

Запчасти John Deere 00C 302 - PILOT HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

0

A852366

Elbow Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

1

4316026

Hydraulic Hose

1шт.

2

A852166

Adapter Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

A852144

Adapter Fitting

(SUB FOR THA852144)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

5

AP36458

Hydraulic Hose

1шт.

6

4631976

Oil Filter

(SUB FOR TH108402, 4191300)

1шт.

6A

AT186554

Filter Element

1шт.

6B

AT186554

Filter Element

1шт.

6C

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

7

19M8093

Cap Screw

M10 X 100

2шт.

12M7066

Lock Washer

10 mm

2шт.

8

A852244

Elbow Fitting

(SUB FOR THA852244)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

9

4303003

Tee Fitting

(SUB FOR AT202321)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

11

4441409

Hydraulic Hose

1шт.

12

A852423

Tee Fitting

(SUB FOR THA852423)

1шт.

M800650

Packing

1шт.

13

4449267

Hydraulic Hose

1шт.

14

A852323

Elbow Fitting

(SUB FOR P67988)

1шт.

M800650

Packing

1шт.
