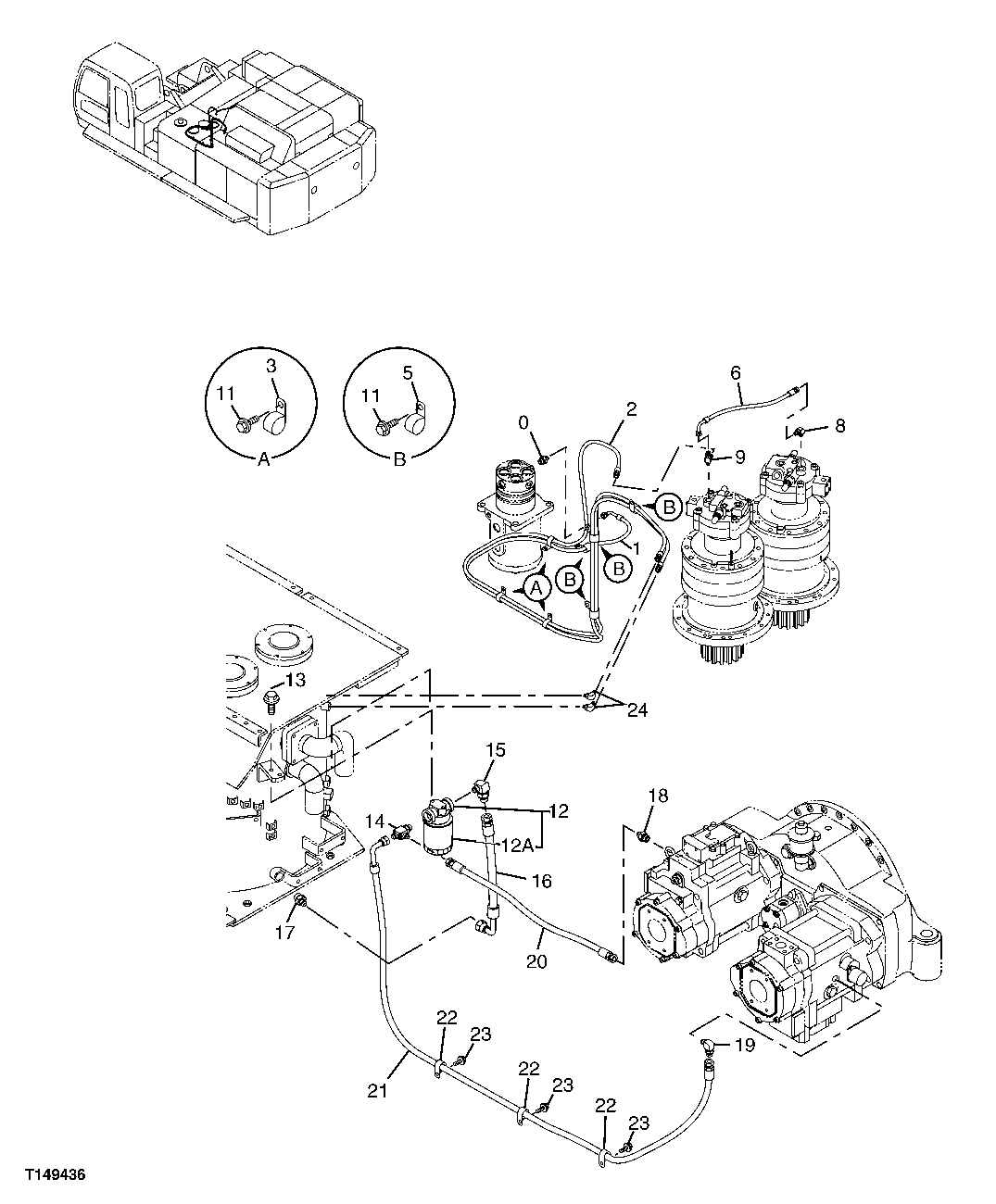

Запчасти John Deere 00C 301 - DRAIN HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

0

A852144

Adapter Fitting

(SUB FOR THA852144)

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

1

4450542

Hydraulic Hose

1шт.

2

4450541

Hydraulic Hose

1шт.

3

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

3шт.

5

4190266

Clip

(SUB FOR TH108793)

4шт.

6

4332389

Hydraulic Hose

(SUB FOR TH4332389)

1шт.

8

A852344

Elbow Fitting

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

9

A852444

Tee Fitting

1шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.

11

19M7938

Cap Screw

M10 X 20

7шт.

12M7066

Lock Washer

10 mm

7шт.

12

4362444

Filter

(SUB FOR AT175916)

1шт.

12A

4363399

Filter Element

(SUB FOR AT175919)

1шт.

13

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

4317618

Tee Fitting

(SUB FOR TH4317618)

1шт.

TH101926

O-Ring

1шт.

15

4156436

Elbow Fitting

(SUB FOR TH101925)

1шт.

TH101926

O-Ring

1шт.

16

4375182

Hydraulic Hose

1шт.

17

4214444

Adapter Fitting

(SUB FOR TH4214444)

1шт.

TH101926

O-Ring

1шт.

18

A852166

Adapter Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

19

A852366

Elbow Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

20

4385682

Hydraulic Hose

1шт.

21

4450543

Hydraulic Hose

1шт.

22

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

3шт.

23

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

24

A852344

Elbow Fitting

2шт.

4506418

O-Ring

(SUB FOR U46489)

1шт.
