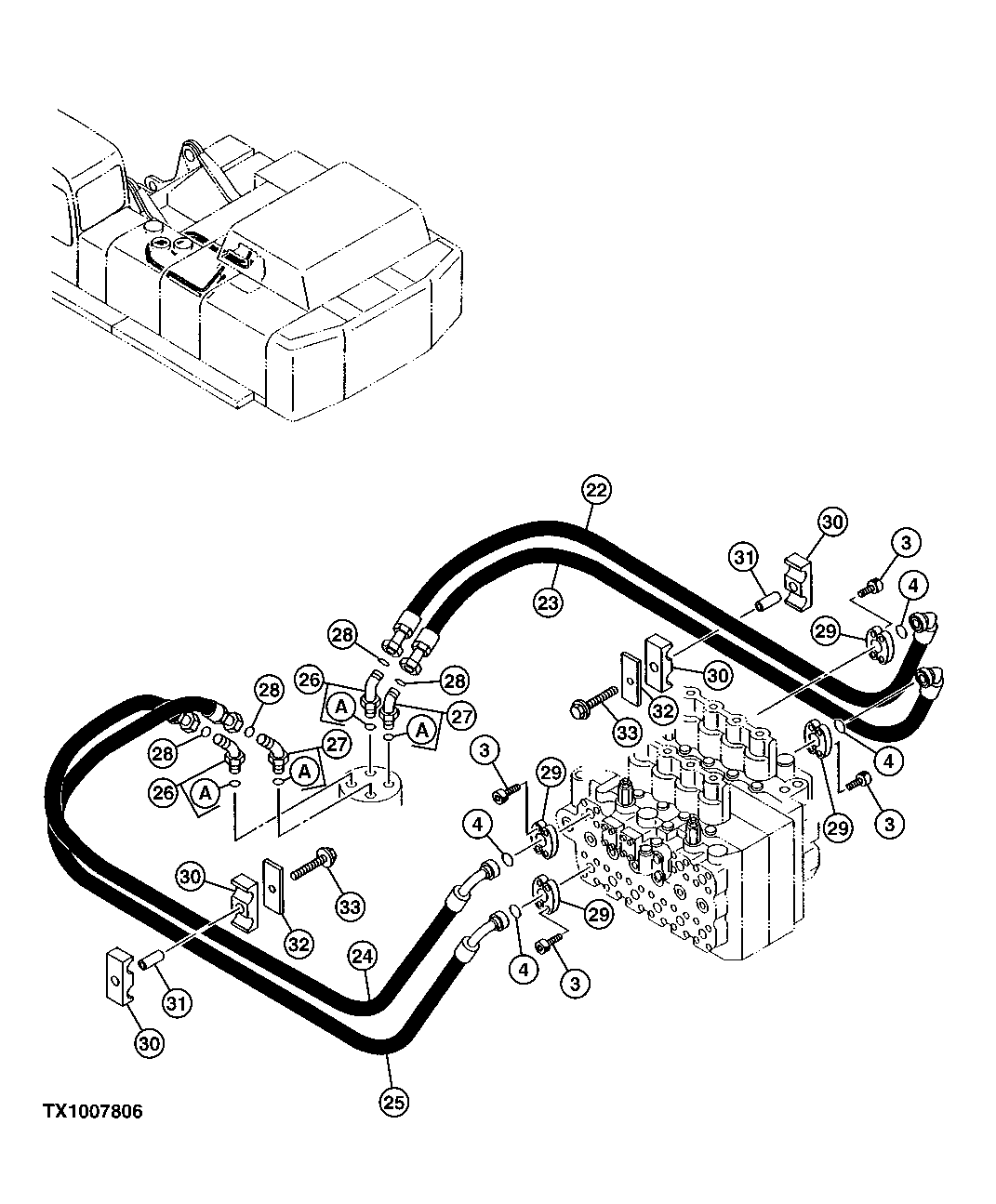

Запчасти John Deere 00C 297 - MAIN HYDRAULIC LINES 3363 LINES, HOSES AND FITTINGS

3

19M8734

Screw

M14 X 45

16шт.

4

T72216

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

4шт.

22

4372522

Hydraulic Hose

SUB FOR TH4372522

1шт.

23

4332807

Hydraulic Hose

SUB FOR TH4332807

1шт.

24

4373946

Hydraulic Hose

SUB FOR TH4373946

1шт.

25

4332809

Hydraulic Hose

SUB FOR TH4332809

1шт.

26

4274593

Elbow Fitting

SUB FOR AT201740

2шт.

26A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

27

FYA00046237

Elbow Fitting

SUB FOR AT201732 OR 4270315

2шт.

27A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

28

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

29

AT131685

Flange Fitting

8шт.

30

4205615

Hose Clamp

SUB FOR AT131792

4шт.

31

4205614

Spacer

14.300 X 21.700 X 55 mm (9/16" X 0.854" X 2.165") SUB FOR AT131791

2шт.

32

4711050

Plate

SUB FOR AT131918 OR 4224002

2шт.

33

19M8122

Cap Screw

M12 X 85

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.
