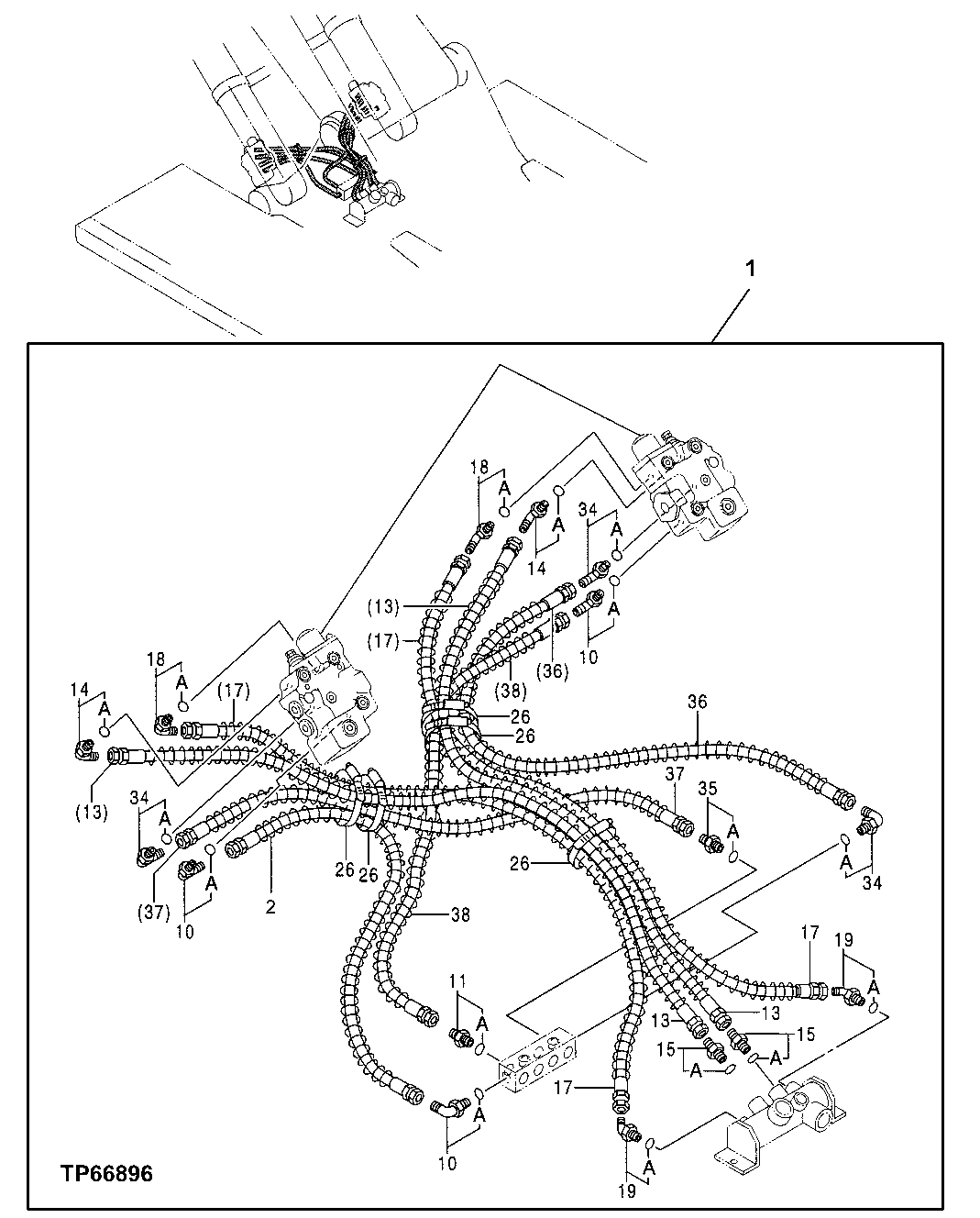

Запчасти John Deere 00C 289 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3362 CONTROL AND LOAD HOLDING VALVES

1

Kit

( AT188670 NO LONGER AVAILABLE) WHOLEGOODS (BOOM CYLINDER LOAD LOWERING VALVE) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

2

4322512

Hydraulic Hose

(SUB FOR AT175161)

1шт.

10

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

3шт.

10A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

11A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4322513

Hydraulic Hose

(SUB FOR AT175163)

2шт.

14

4154672

Elbow Fitting

(SUB FOR TH101008)

2шт.

14A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

15

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

17

4322514

Hydraulic Hose

(SUB FOR AT175162)

2шт.

18

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

26

TY22485

Hose Clamp

(SUB FOR AT175267 OR 4351923)

5шт.

34

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

34A

M800650

Packing

1шт.

35

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

35A

M800650

Packing

1шт.

36

4322515

Hydraulic Hose

(SUB FOR AT175158)

1шт.

37

4322516

Hydraulic Hose

(SUB FOR AT175159)

1шт.

38

4378585

Hydraulic Hose

(SUB FOR TH4378585)

1шт.
