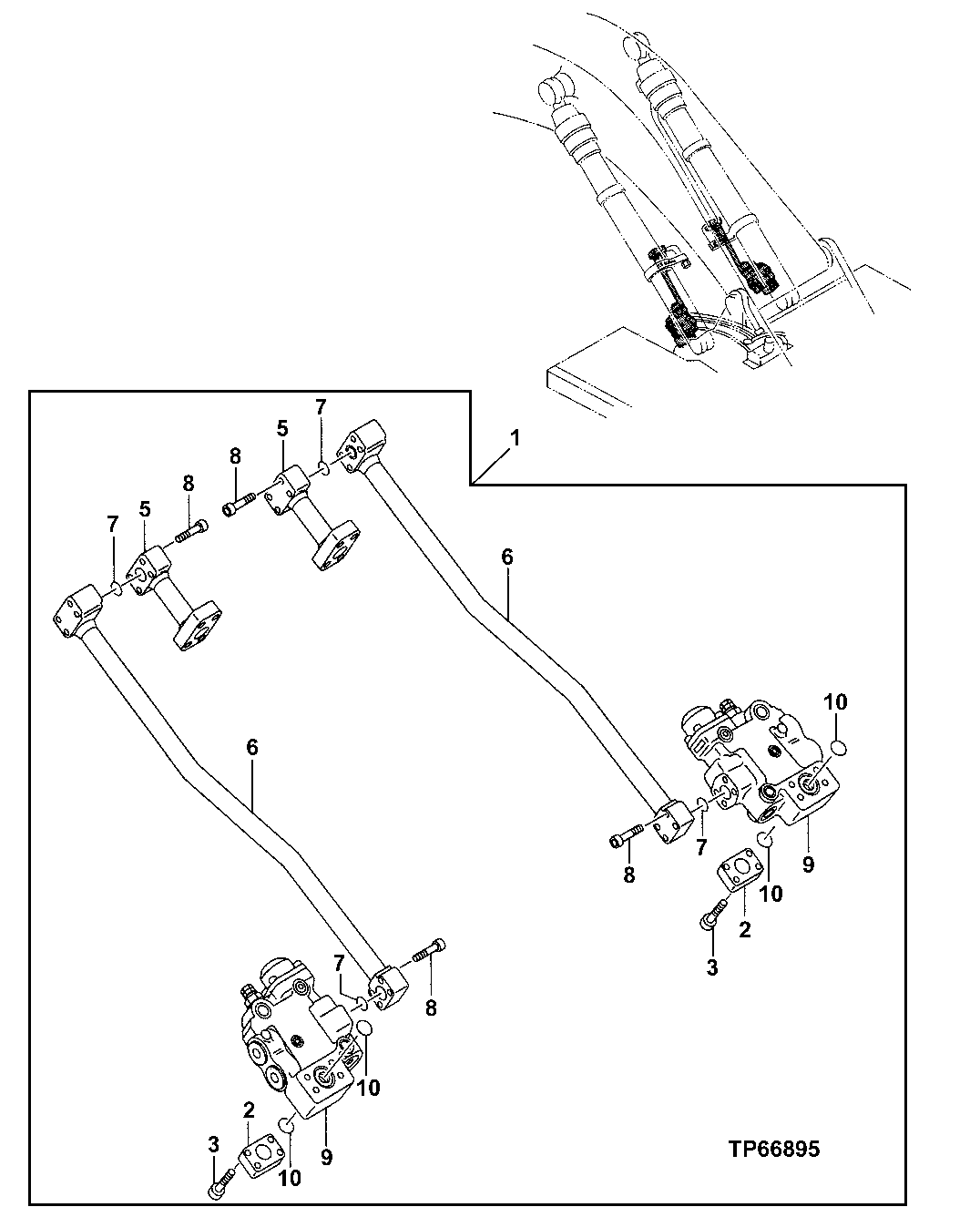

Запчасти John Deere 00C 288 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3362 CONTROL AND LOAD HOLDING VALVES

1

Kit

( AT188670 NO LONGER AVAILABLE) WHOLEGOODS (BOOM CYLINDER LOAD LOWERING VALVE) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

2

4335277

Cover

(SUB FOR TH4335277)

2шт.

3

M341402

Bolt

(SUB FOR THM341402)

8шт.

5

8051972

Flange Fitting

(SUB FOR TH8051972)

2шт.

6

8051973

Oil Line

(SUB FOR TH8051973)

2шт.

7

AT264324

O-Ring

(SUB FOR TH100044)

4шт.

8

19M8547

Screw

M12 X 90 (SUB FOR AT127258 OR M341290)

16шт.

9

4474548

Solenoid Hydraulic Valve

2шт.

10

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR TH102992)

4шт.
