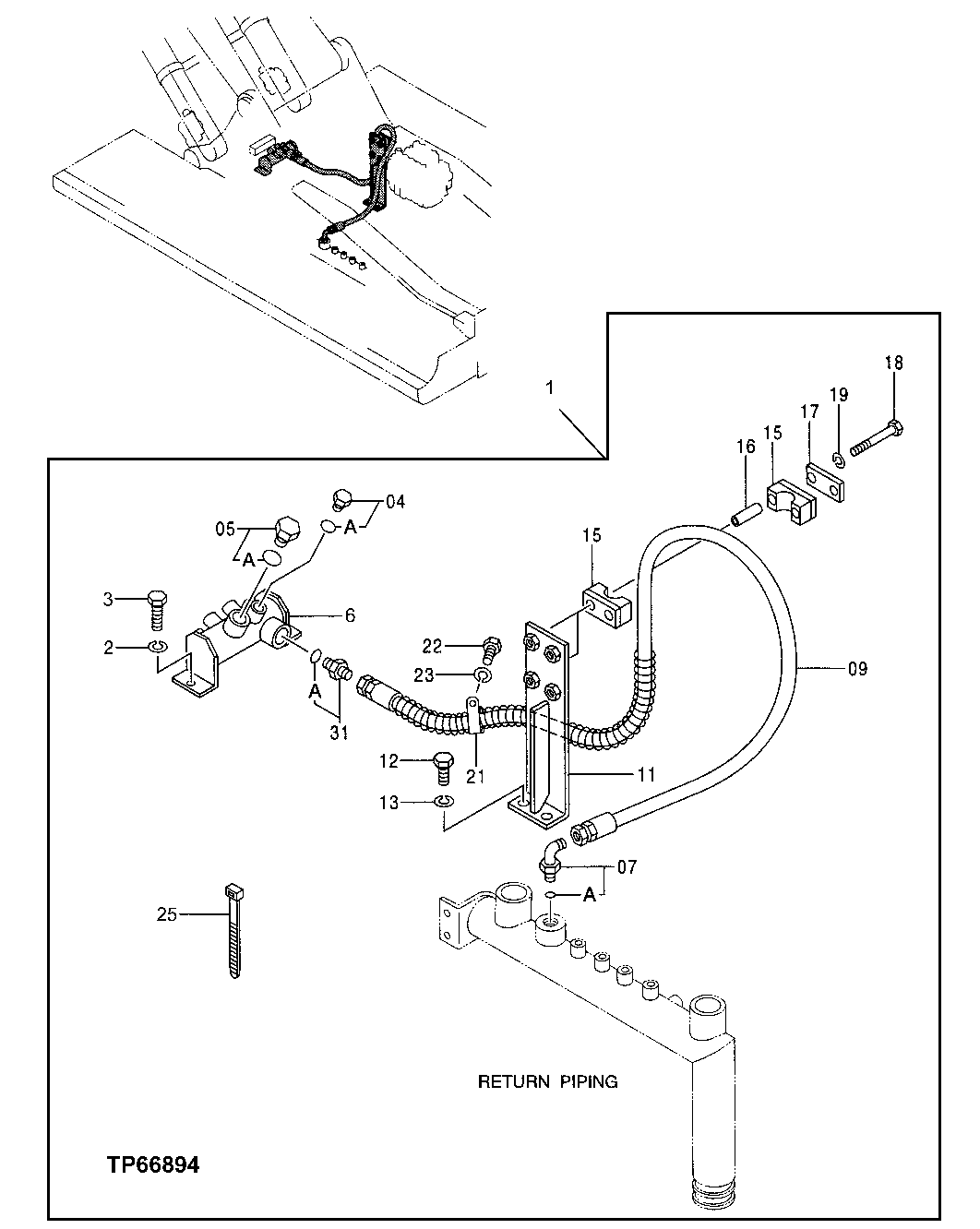

Запчасти John Deere 00C 287 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3362 CONTROL AND LOAD HOLDING VALVES

1

Kit

AT188670 NO LONGER AVAILABLE WHOLEGOOD S, BOOM CYLINDER LOAD LOWERING VALVE, CO NTAINS ALL ITEMS ON THIS PAGE - ADDITION AL COMPONENTS LISTED ON FOLLOWING PAGES

1шт.

2

12H301

Lock Washer

1/2"

2шт.

3

19M7872

Cap Screw

M12 X 25

2шт.

4

4174541

Fitting

SUB FOR TH110477

1шт.

4A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

5

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

5A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

6

8042550

Manifold

SUB FOR AT175140

1шт.

7

4169593

Elbow Fitting

SUB FOR TH4169593

1шт.

7A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") SUB FOR TH104634

1шт.

9

4413151

Hydraulic Hose

SUB FOR TH4413151

1шт.

11

9750363

Bracket

SUB FOR TH9750363

1шт.

12

19M7488

Cap Screw

M16 X 40

2шт.

13

12H294

Lock Washer

5/8"

2шт.

15

4349621

Hose Clamp

SUB FOR AT170625

4шт.

16

4215879

Spacer

SUB FOR AT170626 AND 4349648

4шт.

17

4341803

Plate

SUB FOR AT201827

2шт.

18

19M7908

Cap Screw

M12 X 110

4шт.

19

12H301

Lock Washer

1/2"

4шт.

21

N198631

Clamp

SUB FOR TH109598 OR 4190265

1шт.

22

19M8017

Cap Screw

M12 X 20

1шт.

23

12H301

Lock Washer

1/2"

1шт.

25

H77698

Tie Band

5шт.

31

4042035

Adapter Fitting

SUB FOR TH4042035

1шт.

31A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") SUB FOR TH104634

1шт.
