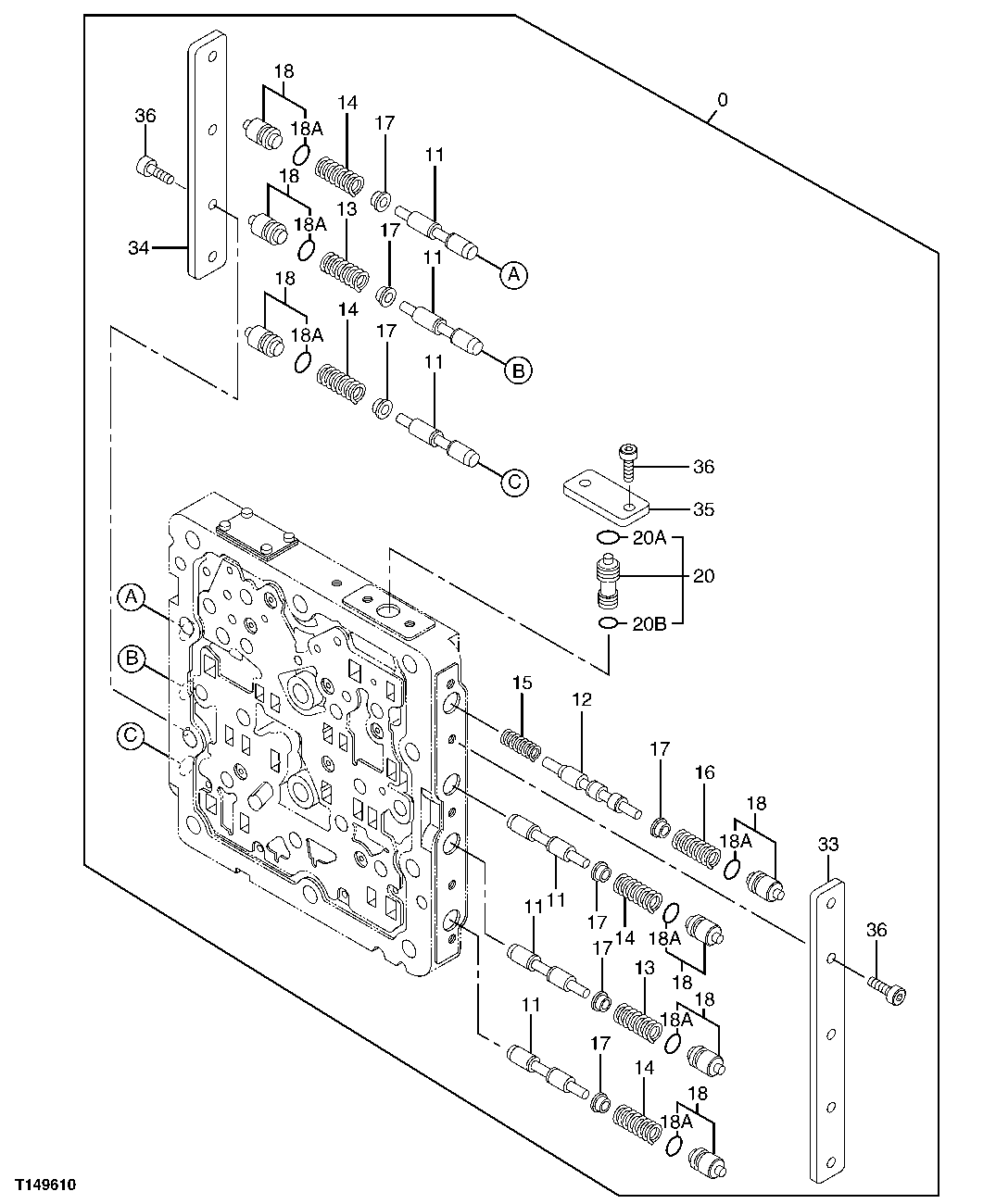

Запчасти John Deere 00C 279 - PILOT SIGNAL MANIFOLD VALVES 3362 CONTROL AND LOAD HOLDING VALVES

0

4470661

Flow Control Hyd. Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

11

4453819

Spool Valve

(SUB FOR TH4453819)

6шт.

12

4453820

Spool Valve

(SUB FOR TH4453820)

1шт.

13

0788703

Spring

(SUB FOR TH0788703)

2шт.

14

0788704

Spring

(SUB FOR TH0788704)

4шт.

15

0788705

Spring

(SUB FOR TH0788705)

1шт.

16

0788706

Spring

(SUB FOR TH0788706)

1шт.

17

0788707

Valve Seat

(SUB FOR TH0788707)

7шт.

18

4452647

Pipe Plug

(SUB FOR TH4452647)

7шт.

18A

CH11560

Packing

1шт.

20

4452648

Spool Valve

(SUB FOR TH4452648)

1шт.

20A

CH11560

Packing

1шт.

20B

CH10567

Packing

1шт.

33

0788710

Plate

(SUB FOR TH0788710)

1шт.

34

0788711

Plate

(SUB FOR TH0788711)

1шт.

35

0788712

Plate

(SUB FOR TH0788712)

1шт.

36

0788713

Bolt

(SUB FOR TH0788713)

11шт.
