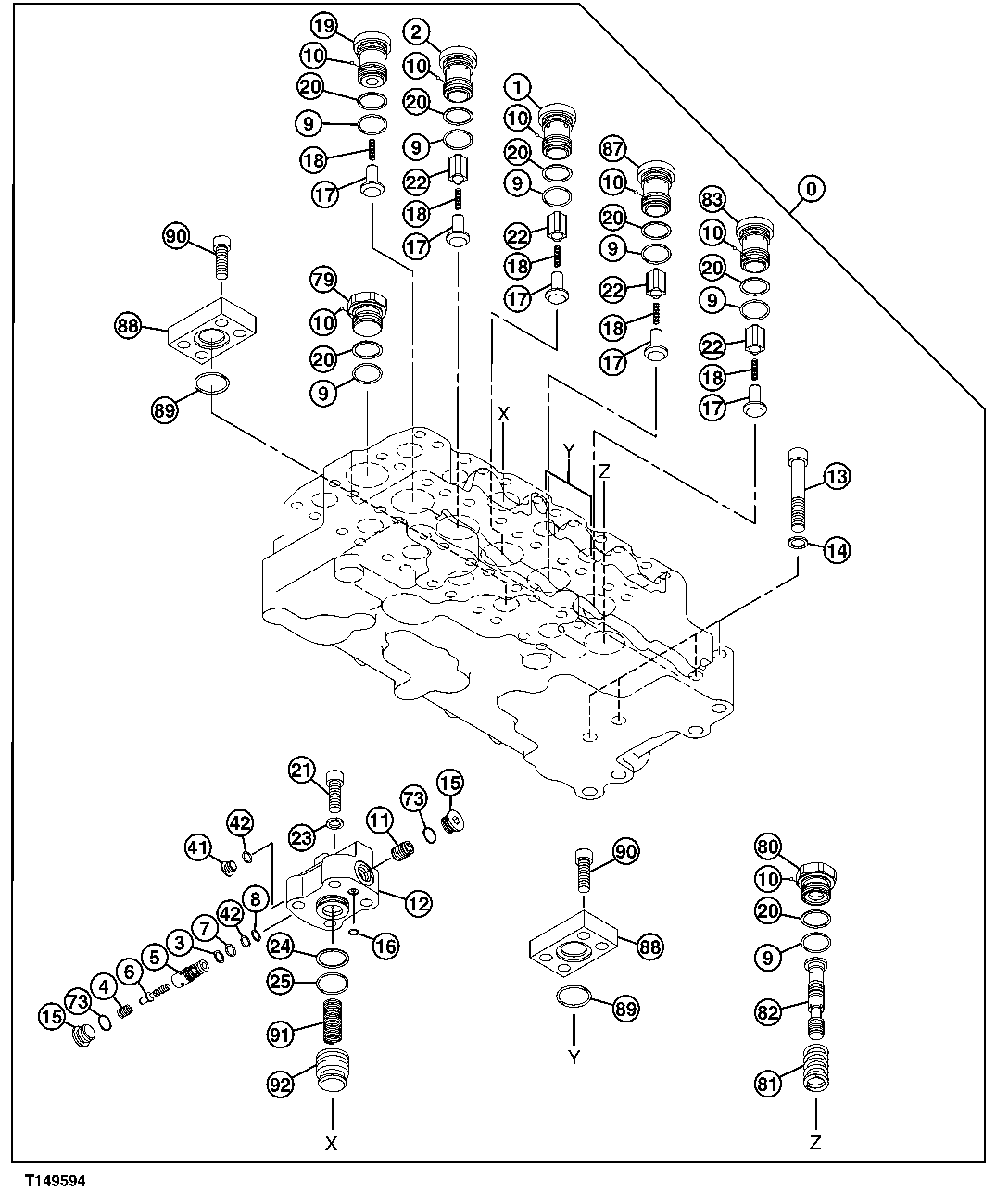

Запчасти John Deere 00C 274 - CONTROL VALVE (5 SPOOL SIDE SECTION) 3362 CONTROL AND LOAD HOLDING VALVES

0

4448443

Hyd Actuated Control Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

1

0622860

Cap

(SUB FOR AT202044)

1шт.

2

0622849

Cap

(SUB FOR AT202033)

1шт.

3

4040813

Back-Up Ring

(SUB FOR TH110449)

1шт.

4

0622863

Spring

(SUB FOR AT202047)

1шт.

5

0622866

Sleeve

(SUB FOR AT202050)

1шт.

6

0622864

Poppet

(SUB FOR AT202048)

1шт.

7

4140470

O-Ring

(SUB FOR TH109089)

1шт.

8

4092265

Back-Up Ring

(SUB FOR TH102598)

1шт.

9

4088425

O-Ring

(SUB FOR AT202080)

7шт.

10

0189803

Ball

(SUB FOR AT203704)

7шт.

11

0622867

Piston

(SUB FOR AT202051)

1шт.

12

0809802

Cover

(SUB FOR TH0809802)

1шт.

13

19M8564

Screw

M16 X 110

4шт.

14

0189908

Washer

(SUB FOR AT217052)

4шт.

15

0622822

Cap

(SUB FOR AT202006)

2шт.

16

CH17167

O-Ring

1шт.

17

Check Valve

5шт.

18

0622827

Spring

(SUB FOR AT202011)

5шт.

19

0622825

Cap

(SUB FOR AT202009)

1шт.

20

0223104

Back-Up Ring

(SUB FOR AT217055)

7шт.

21

M341440

Screw

(SUB FOR AT201961)

4шт.

22

Check Valve

( AT202032 NLA)

4шт.

23

0622865

Washer

(SUB FOR AT202049)

4шт.

24

4138942

Back-Up Ring

(SUB FOR AT217083)

1шт.

25

AT264324

O-Ring

(SUB FOR TH100044)

1шт.

41

0622810

Cap

(SUB FOR AT201994)

1шт.

42

M800650

Packing

2шт.

73

4506418

O-Ring

(SUB FOR U46489)

2шт.

79

0622870

Cap

(SUB FOR AT202054)

1шт.

80

0622846

Cap

(SUB FOR AT202030)

1шт.

81

0622845

Spring

(SUB FOR AT202029)

1шт.

82

0818101

Spool Valve

(SUB FOR TH0818101)

1шт.

83

0622868

Cap

(SUB FOR AT202052)

1шт.

87

0622869

Cap

(SUB FOR AT202053)

1шт.

88

0622858

Flange

(SUB FOR AT202042)

3шт.

89

0197011

O-Ring

(SUB FOR AT217054)

3шт.

90

19M8734

Screw

M14 X 45

12шт.

91

0622856

Spring

(SUB FOR AT202040)

1шт.

92

0622855

Poppet

(SUB FOR AT202039)

1шт.
