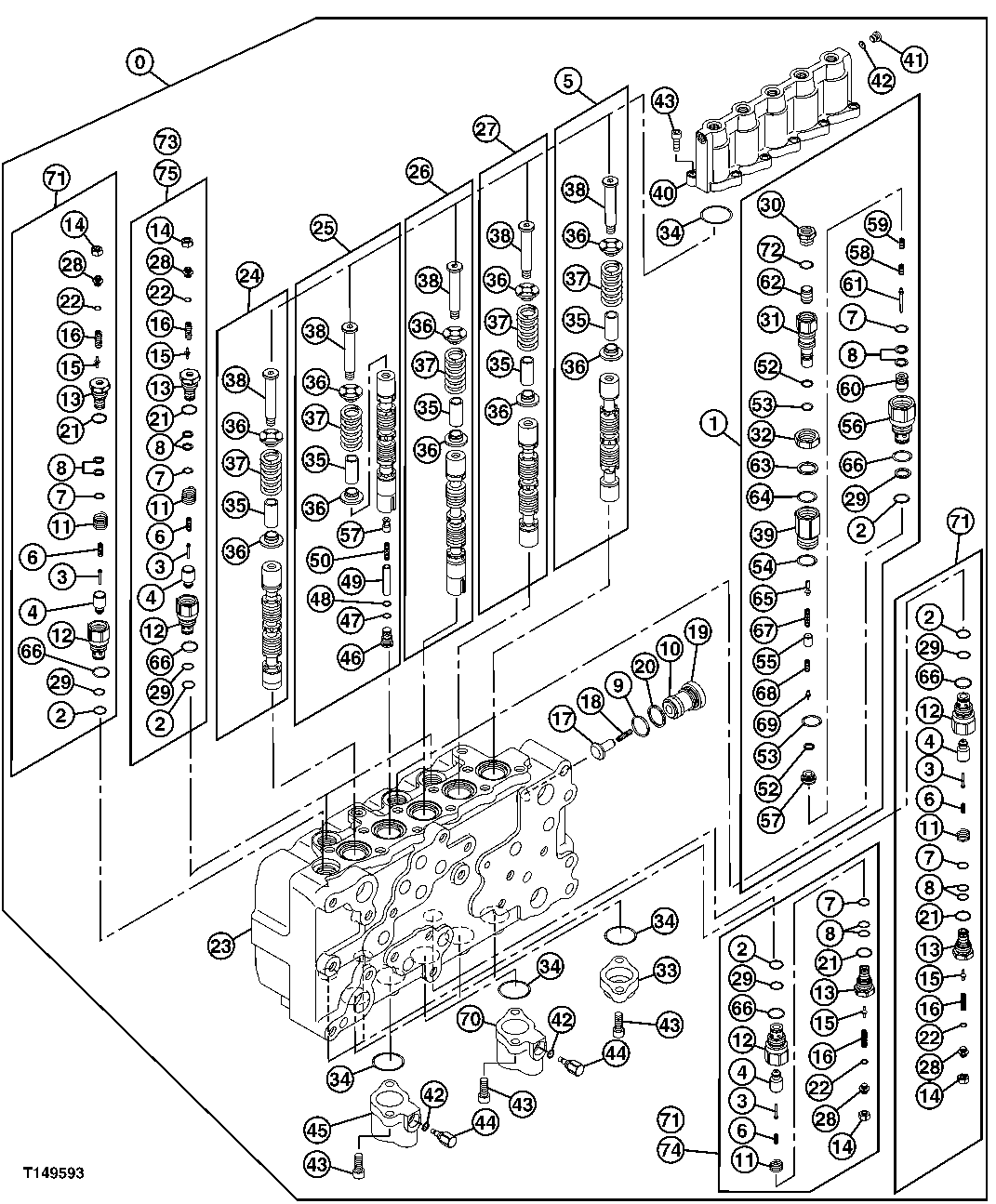

Запчасти John Deere 00C 272 - CONTROL VALVE (5 SPOOL) 3362 CONTROL AND LOAD HOLDING VALVES

0

4448443

Hyd Actuated Control Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

1

4469383

Pressure Relief Valve

1шт.

2

4355080

O-Ring

SUB FOR AT202086, SUB FOR 4153 099, OR 0818011THIS APPLICATION

7шт.

3

0809729

Piston

SUB FOR TH0809729

6шт.

4

0809728

Poppet

SUB FOR TH0809728

6шт.

5

Plunger

1шт.

6

0809727

Spring

SUB FOR TH0809727

6шт.

7

0809726

O-Ring

SUB FOR TH0809726

7шт.

8

0809725

Ring

SUB FOR TH0809725

14шт.

9

4088425

O-Ring

SUB FOR AT202080

1шт.

10

0189803

Ball

SUB FOR AT203704

1шт.

11

0809724

Spring

SUB FOR TH0809724

6шт.

12

0809723

Sleeve

SUB FOR TH0809723

6шт.

13

0809722

Valve Seat

SUB FOR TH0809722

6шт.

14

0809721

Nut

SUB FOR TH0809721

6шт.

15

0809733

Poppet

SUB FOR TH0809733

6шт.

16

0809732

Spring

SUB FOR TH0809732

6шт.

17

Check Valve

AT202013 NLA

1шт.

18

0622827

Spring

SUB FOR AT202011

1шт.

19

0622825

Cap

SUB FOR AT202009

1шт.

20

0223104

Back-Up Ring

SUB FOR AT217055

1шт.

21

0809731

O-Ring

SUB FOR TH0809731

6шт.

22

4366519

O-Ring

SUB FOR AT202085, SUB FOR 4153089, THIS APPLICATION, SUB FOR 0818012

6шт.

23

Housing

1шт.

24

Plunger

1шт.

25

Plunger

1шт.

26

Plunger

1шт.

27

Plunger

1шт.

28

0809730

Screw

SUB FOR TH0809730

6шт.

29

4027959

Back-Up Ring

SUB FOR TH100771

7шт.

30

0810709

Cap

SUB FOR TH0810709

1шт.

31

0810710

Sleeve

SUB FOR TH0810710

1шт.

32

0810711

Nut

SUB FOR TH0810711

1шт.

33

0622803

Cover

SUB FOR AT201987

3шт.

34

4073426

O-Ring

SUB FOR AT217049

10шт.

35

0622805

Sleeve

SUB FOR AT201989

5шт.

36

0622806

Guide

SUB FOR AT201990

10шт.

37

0622807

Spring

SUB FOR AT201991

5шт.

38

0622808

Cap

SUB FOR AT201992

5шт.

39

0810712

Sleeve

SUB FOR TH0810712

1шт.

40

0810704

Cover

SUB FOR TH0810704

1шт.

41

0622810

Cap

SUB FOR AT201994

1шт.

42

M800650

Packing

3шт.

43

19M8169

Screw

M12 X 30 SUB FOR 19M8127

20шт.

44

0622875

Plug

SUB FOR AT172702

2шт.

45

0818005

Cover

SUB FOR TH0818005

1шт.

46

0622877

Cap (Hat)

SUB FOR AT172704

1шт.

47

0166805

Back-Up Ring

SUB FOR AT217051

1шт.

48

CH10568

Packing

1шт.

49

0703301

Spacer

SUB FOR TH0703301

1шт.

50

0159214

Spring

SUB FOR TH0159214

1шт.

51

Check Valve

AT201995 NLA

1шт.

52

0810713

Ring

SUB FOR TH0810713

2шт.

53

0810714

O-Ring

SUB FOR TH0810714

2шт.

54

0810715

O-Ring

SUB FOR TH0810715

1шт.

55

Retainer

0810716 NLA, SUB FOR TH0810716

1шт.

56

0810717

Sleeve

SUB FOR TH0810717

1шт.

57

0810718

Valve Seat

SUB FOR TH0810718

1шт.

58

0810719

Spring

SUB FOR TH0810719

1шт.

59

0810720

Spring

SUB FOR TH0810720

1шт.
