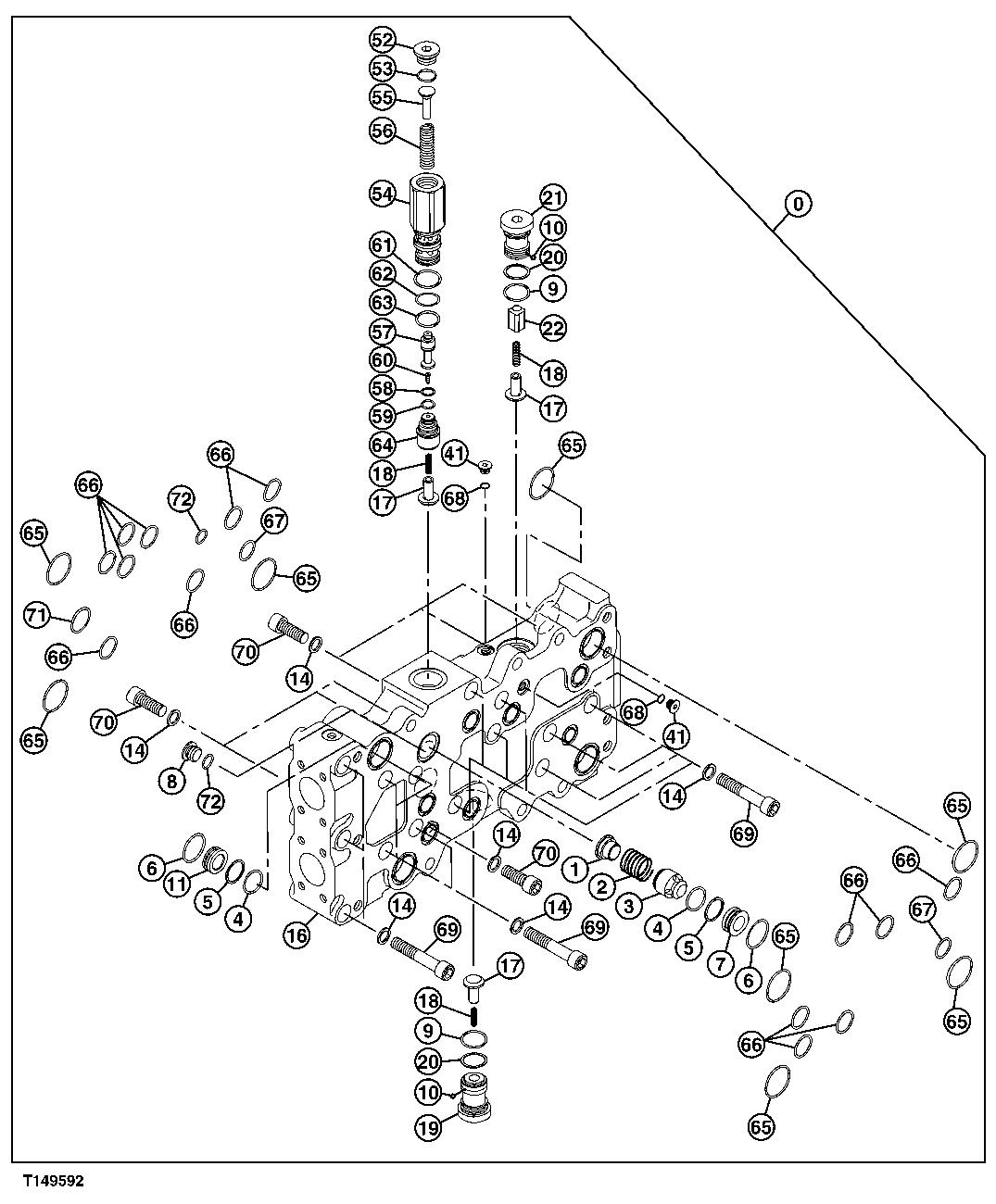

Запчасти John Deere 00C 271 - CONTROL VALVE (MANIFOLD) 3362 CONTROL AND LOAD HOLDING VALVES

0

4448443

Hyd Actuated Control Valve

Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.

1

0622851

Plate

(SUB FOR AT202035)

1шт.

2

0622852

Spring

(SUB FOR AT202036)

1шт.

3

Check Valve

( AT202037 NLA)

1шт.

4

0818204

O-Ring

(SUB FOR AT202088 ) (SUB FOR 415 3110, OR 0818009THIS APPLICATION)

2шт.

5

4019414

Back-Up Ring

(SUB FOR AT202076)

2шт.

6

4292942

O-Ring

(SUB FOR AT202089 ) (SUB FOR 4153534, THIS APPLIC OR 0818205ATION, 0818010)

2шт.

7

0622854

Seat

(SUB FOR AT202038)

1шт.

8

0622822

Cap

(SUB FOR AT202006)

1шт.

9

4088425

O-Ring

(SUB FOR AT202080)

2шт.

10

0189803

Ball

(SUB FOR AT203704)

2шт.

11

0827901

Pipe Plug

1шт.

14

0189908

Washer

(SUB FOR AT217052)

21шт.

16

Manifold

1шт.

17

Check Valve

( AT202013 NLA)

3шт.

18

0622827

Spring

(SUB FOR AT202011)

3шт.

19

0622825

Cap

(SUB FOR AT202009)

1шт.

20

0223104

Back-Up Ring

(SUB FOR AT217055)

2шт.

21

0818201

Cap

(SUB FOR TH0818201)

1шт.

22

Check Valve

( AT202032 NLA)

1шт.

41

0622810

Cap

(SUB FOR AT201994)

2шт.

52

0453932

Fitting Plug

(SUB FOR AT203777)

1шт.

53

0212416

O-Ring

(SUB FOR TH100198)

1шт.

54

0818202

Sleeve

(SUB FOR TH0818202)

1шт.

55

0622831

Guide

(SUB FOR AT202015)

1шт.

56

0622830

Spring

(SUB FOR AT202014)

1шт.

57

0810602

Spool Valve

(SUB FOR TH0810602)

1шт.

58

4040814

Back-Up Ring

(SUB FOR TH105938)

1шт.

59

T111819

O-Ring

1шт.

60

0622835

Piston

(SUB FOR AT202019)

1шт.

61

0810603

O-Ring

(SUB FOR TH0810603)

1шт.

62

4044839

Back-Up Ring

(SUB FOR TH103457)

1шт.

63

AT264347

O-Ring

(SUB FOR TH100136, 4506428)

1шт.

64

0810604

Sleeve

(SUB FOR TH0810604)

1шт.

65

4292386

O-Ring

(SUB FOR AT202090 ) (SUB FOR 4153535, THIS APPLIC OR 0818203ATION, 0818006)

8шт.

66

4366528

O-Ring

(SUB FOR AT202087 OR 4153108 ) (S UB FOR 0818007, THIS APPLICATION)

14шт.

67

T59014

O-Ring

(SUB FOR AT202005)

2шт.

68

0212416

O-Ring

(SUB FOR TH100198)

2шт.

69

19M8342

Screw

M16 X 90

14шт.

70

0212405

Bolt

(SUB FOR TH100184)

7шт.

71

0223109

O-Ring

(SUB FOR AT217056)

1шт.

72

4366521

O-Ring

(SUB FOR TH109041 ) (SUB FOR 415 3098, OR 0818008THIS APPLICATION)

2шт.
