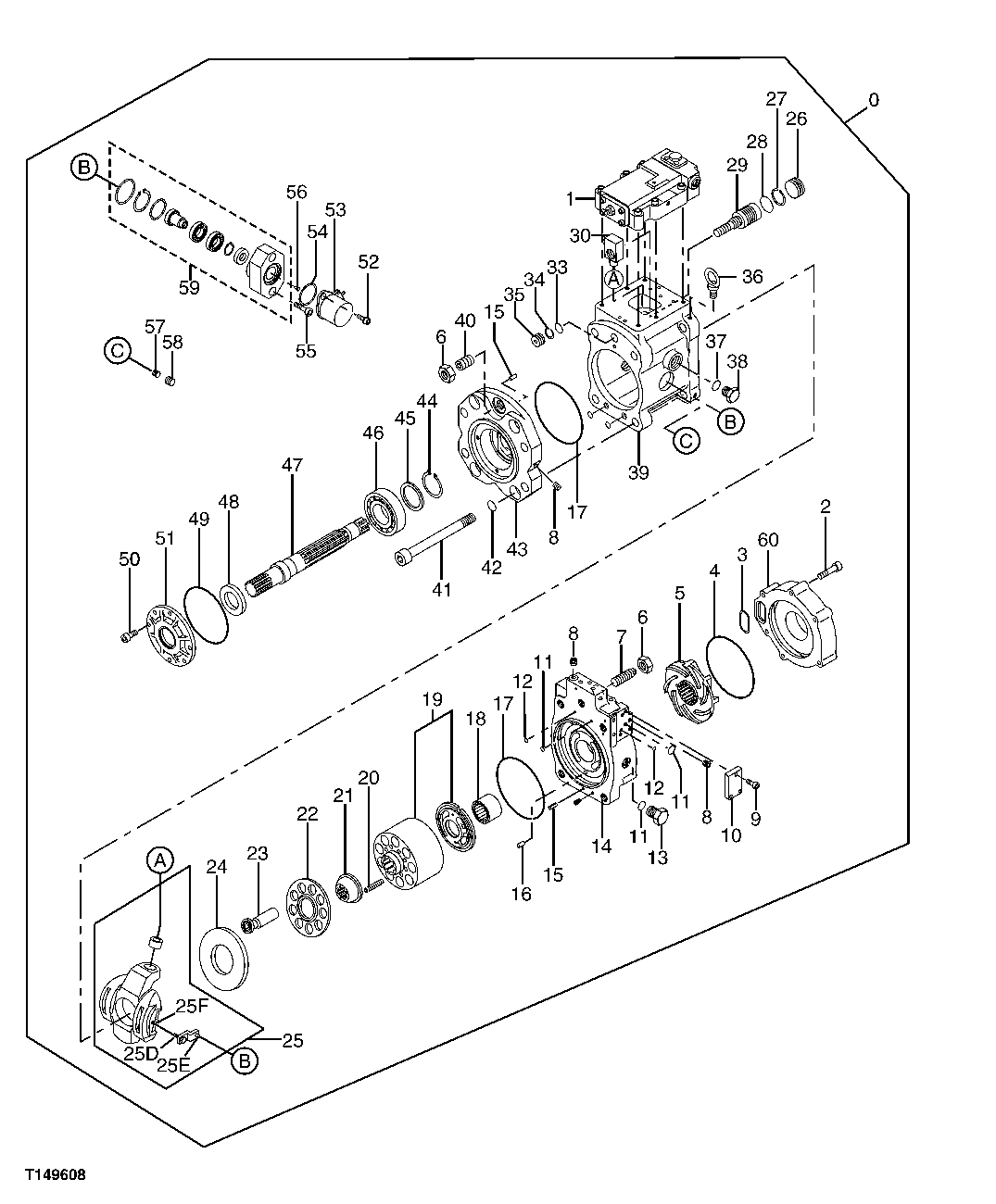

Запчасти John Deere 00C 266 - PUMP, PISTON 3361 HYDRAULIC PUMP

0

9197075

Pump

NLA, ORDER 9197075EX

1шт.

9197075EX

Hydraulic Pump Reman

REMAN FOR 9197075

1шт.

1

4473273

Regulator

1шт.

2

19M8441

Screw

M10 X 60 SUB FOR 0111530

6шт.

3

4292387

O-Ring

SUB FOR 0443413 OR 0830623

1шт.

4

0682323

O-Ring

1шт.

5

0682304

Impeller

1шт.

6

4068898

Nut

SUB FOR AT201632 OR 0451038

2шт.

7

0682328

Set Screw

SUB FOR TH0682328

1шт.

8

15H560

Pipe Plug

1/16"

27шт.

9

19M8627

Screw

M6 X 20

3шт.

10

0682315

Cover

1шт.

11

4297379

O-Ring

SUB FOR TH4297379

4шт.

12

4366517

O-Ring

SUB FOR TH0443801, 0443801 OR 4S00810

10шт.

13

0236014

Fitting Plug

SUB FOR TH102650

2шт.

14

FXB00005221

Cover

SUB FOR 0682314 ALSO ORDER FXB00000799

1шт.

FXB00000799

Plug

1шт.

15

4144353

Spring Pin

SUB FOR TH4144353

2шт.

16

0313404

Pin

SUB FOR AT201970

1шт.

17

0682322

O-Ring

SUB FOR TH0682322, 4S00117 OR 4S00743

2шт.

18

0800701

Needle Bearing

SUB FOR TH0682303

1шт.

19

0703002

Cylinder

SUB FOR TH0703002

1шт.

20

0682307

Spring

SUB FOR TH0682307

9шт.

21

0828401

Bushing

1шт.

22

0718002

Retainer

SUB FOR TH0718002

1шт.

23

0682329

Piston

SUB FOR TH0718001, 0718001 OR 0838201

1шт.

24

0682309

Plate

SUB FOR TH0682309

1шт.

25

0719701

Swash Plate

SUB FOR TH0719701

1шт.

25D

0703004

Cap Screw

SUB FOR TH0703004

1шт.

25E

Pin

0195147 NLA SUB FOR TH104576

1шт.

25F

0703005

Dowel Pin

SUB FOR TH0703005

1шт.

26

0682319

Stop

SUB FOR TH0682319

1шт.

27

0682327

Ring

SUB FOR TH0682327 OR 4S00228

1шт.

28

4292386

O-Ring

SUB FOR TH4292386

1шт.

29

0800707

Piston

1шт.

30

0800706

Pin Fastener

1шт.

33

0976602

O-Ring

SUB FOR TH0682324, 0682324 OR 4S00734

1шт.

34

0694503

Back-Up Ring

SUB FOR TH0682326 OR 4S00238

1шт.

35

0682320

Stop

SUB FOR TH0682320

1шт.

36

0134458

Eyebolt

SUB FOR AT201963

2шт.

37

4297381

O-Ring

SUB FOR TH0443408 OR 4S00808

2шт.

38

0195165

Plug

SUB FOR TH102648

2шт.

39

0828402

Housing

1шт.

40

0339847

Set Screw

SUB FOR TH0339847

1шт.

41

J782225

Bolt

SUB FOR TH0682316

4шт.

42

0737002

Washer

4шт.

43

0815301

Support

NLA, ORDER FFXB00000803 AND FXB00000799

1шт.

FXB00000803

Support

1шт.

FXB00000799

Plug

1шт.

44

40M7066

Snap Ring

1шт.

45

0339809

Spacer

SUB FOR TH0339809

1шт.

46

0682302

Cylindrical Roller Bearing

1шт.

47

0682301

Shaft

1шт.

48

0682325

Seal

SUB FOR TH0682325

1шт.

49

0682321

O-Ring

SUB FOR 4S00121 OR 4S00892

1шт.

50

19M8446

Screw

M8 X 20

4шт.

51

0682311

Cover

SUB FOR TH0682311

1шт.

52

0237902

Bolt

SUB FOR AT201967

2шт.

0451204

Washer

SUB FOR AT201641

2шт.

53

4716888

Sensor

SUB FOR 44449024

1шт.

54

4274371

O-Ring

SUB FOR AT154322

1шт.

55

0134701

Bolt

SUB FOR TH0134701

2шт.

56

4255077

Spring

SUB FOR AT154224

1шт.

57

0451027

Screw

SUB FOR AT201621

2шт.

58

0451028

Fitting Plug

SUB FOR AT201622

2шт.

59

4366339

Sensor

SUB FOR AT174500

1шт.

60

0682312

Cover

1шт.
