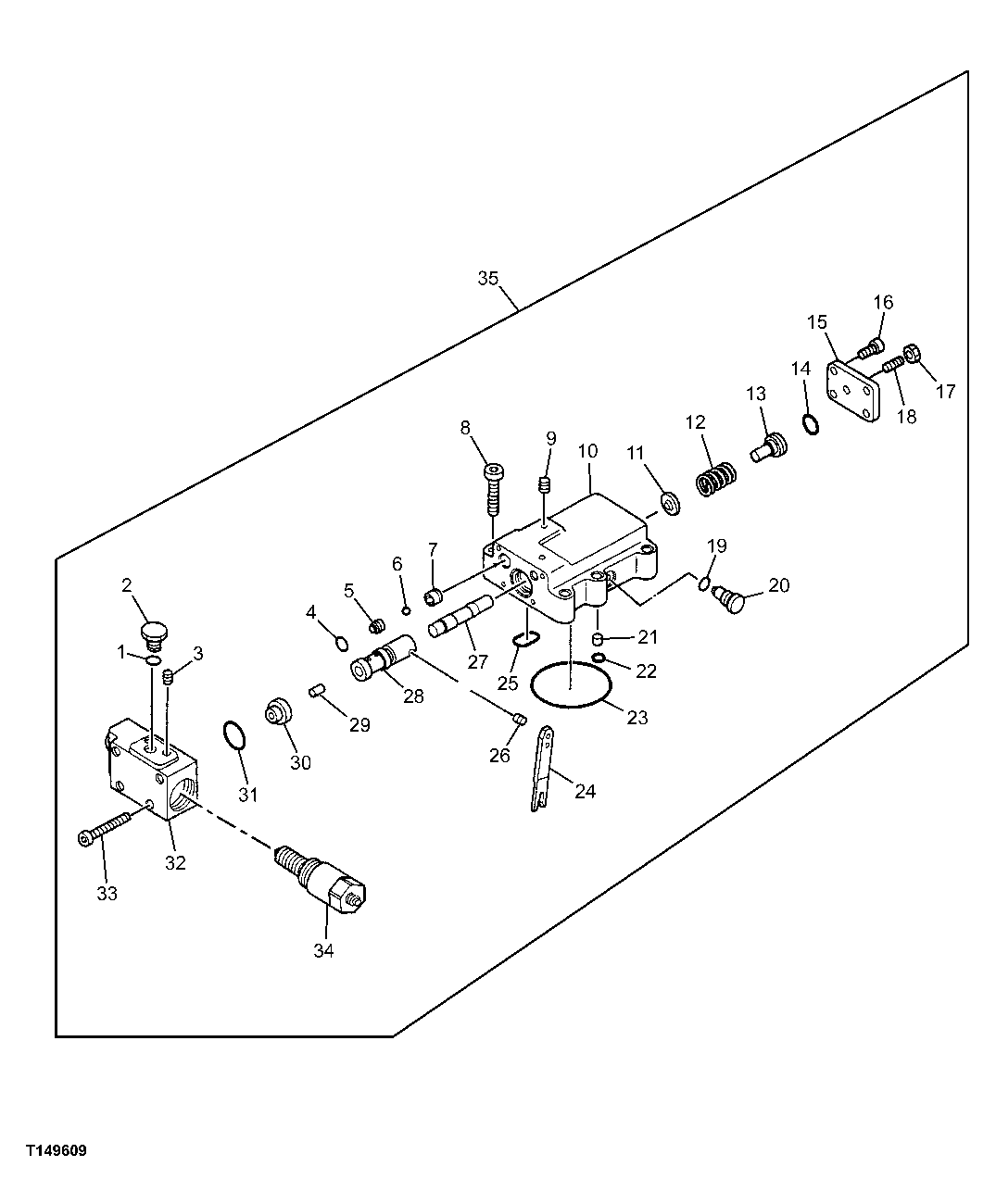

Запчасти John Deere 00C 263 - Regulator Valve 3361 HYDRAULIC PUMP

1

4297379

O-Ring

SUB FOR TH4297379

1шт.

2

0236014

Fitting Plug

SUB FOR TH102650

1шт.

3

15H560

Pipe Plug

1/16"

3шт.

4

TH0703102

O-Ring

2шт.

5

0978601

Valve

SUB FOR AT201636 OR 0451102

2шт.

6

0451104

Ball

SUB FOR AT201638

2шт.

7

0978601

Valve

SUB FOR AT201637 OR 0451103

2шт.

8

19M8711

Screw

M8 X 50 SUB FOR 0135904

6шт.

9

15H560

Pipe Plug

1/16"

3шт.

10

Housing

NSEP ORDER 4473273

1шт.

11

Valve Seat

NSEP ORDER 4473273

1шт.

12

Spring

NSEP ORDER 4473273

1шт.

13

Spring Pin

NSEP ORDER 4473273

1шт.

14

4366521

O-Ring

SUB FOR TH0443803

1шт.

15

Cover

1шт.

16

0237902

Bolt

SUB FOR AT201967

4шт.

17

14M7147

Nut

M8

1шт.

18

22M7148

Set Screw

M8 X 16 SUB FOR 22M7070

1шт.

19

4297379

O-Ring

SUB FOR TH4297379

1шт.

20

Fitting Plug

NSEP ORDER 4473273

1шт.

21

Pin

NSEP ORDER 4473273

1шт.

22

4366517

O-Ring

SUB FOR TH0443801, 0443801 OR 4S00810

5шт.

23

0682502

O-Ring

SUB FOR TH0682502

1шт.

24

Lever

1шт.

25

4366521

O-Ring

SUB FOR TH0443803

1шт.

26

Pin

NSEP ORDER 4473273

1шт.

27

Spool

NSEP ORDER 4473273

1шт.

28

Sleeve

NSEP ORDER 4473273

1шт.

29

Pin

NSEP ORDER 4473273

1шт.

30

Sleeve

NSEP ORDER 4473273

1шт.

31

TH0703101

O-Ring

1шт.

32

0451101

Case

SUB FOR AT201635

1шт.

33

19M8541

Screw

M6 X 50

4шт.

34

4368974

Flow Control Hyd. Valve

SUB FOR AT176176

1шт.

35

4473273

Regulator

1шт.
