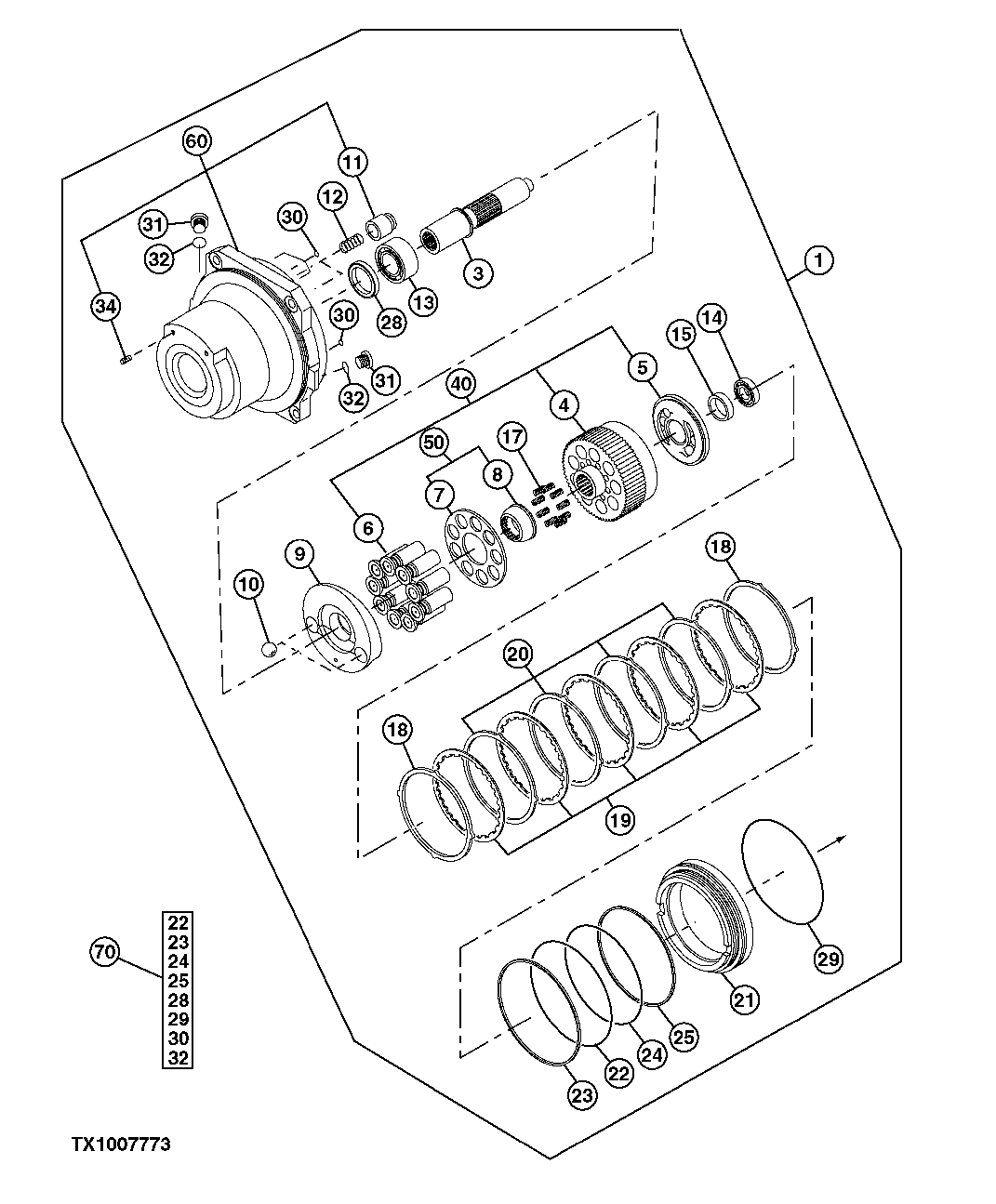

Запчасти John Deere 00C 17 - PROPEL MOTOR COMPONENTS 0260 AXLES, DIFF. AND SUSP. SYS. HYD. (INCL. FWD)

1

4636857

Oil

NLA, ORDER PG200045

1шт.

PG200045

Hydraulic Motor Reman

SUB FOR 4448472, 4481830 OR 4481830EX, REMAN FOR 4636857

1шт.

3

0809501

Shaft

SUB FOR TH0809501

1шт.

4

Cylinder

1шт.

5

Plate

1шт.

6

Piston

9шт.

7

Plate

1шт.

8

Retainer

1шт.

9

0853402

Plate

SUB FOR 0806501, ALSO ORDER 0853403

1шт.

10

0682706

Ball

SUB FOR TH0682706

2шт.

11

Piston

2шт.

12

0809503

Spring

SUB FOR TH0809503

2шт.

13

0809504

Cylindrical Roller Bearing

SUB FOR TH0809504

1шт.

14

0809505

Cylindrical Roller Bearing

SUB FOR TH0809505

1шт.

15

0809506

Bushing

SUB FOR TH0809506

1шт.

17

0806502

Spring

9шт.

18

0809508

Plate

SUB FOR TH0809508

2шт.

19

0419808

Plate

SUB FOR AT201978

5шт.

20

0352221

Plate

SUB FOR AT132258

4шт.

21

0809509

Piston

SUB FOR TH0809509

1шт.

22

0365427

O-Ring

SUB FOR AT170304, 0411 419, 4S00240 OR 4S01093

1шт.

23

0809510

Piston Ring

SUB FOR TH0809510

1шт.

24

0419806

O-Ring

SUB FOR AT201977

1шт.

25

0420403

Ring

SUB FOR AT204905 OR 4S00854

1шт.

28

0352218

Seal

SUB FOR AT132255

1шт.

29

A811260

O-Ring

SUB FOR THA811260

1шт.

30

CH17167

O-Ring

4шт.

31

0809511

Pipe Plug

SUB FOR TH0809511

2шт.

32

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

2шт.

34

Pipe Plug

2шт.

40

0853403

Cylinder

SUB FOR 0809512, 08534 01, ALSO ORDER 0853402

1шт.

50

0809513

Retainer

SUB FOR TH0809513

1шт.

60

Case

0809514 NLA SUB FOR TH0809514

1шт.

70

0809515

Seal Kit

SUB FOR TH0809515 OR 0419812

1шт.
