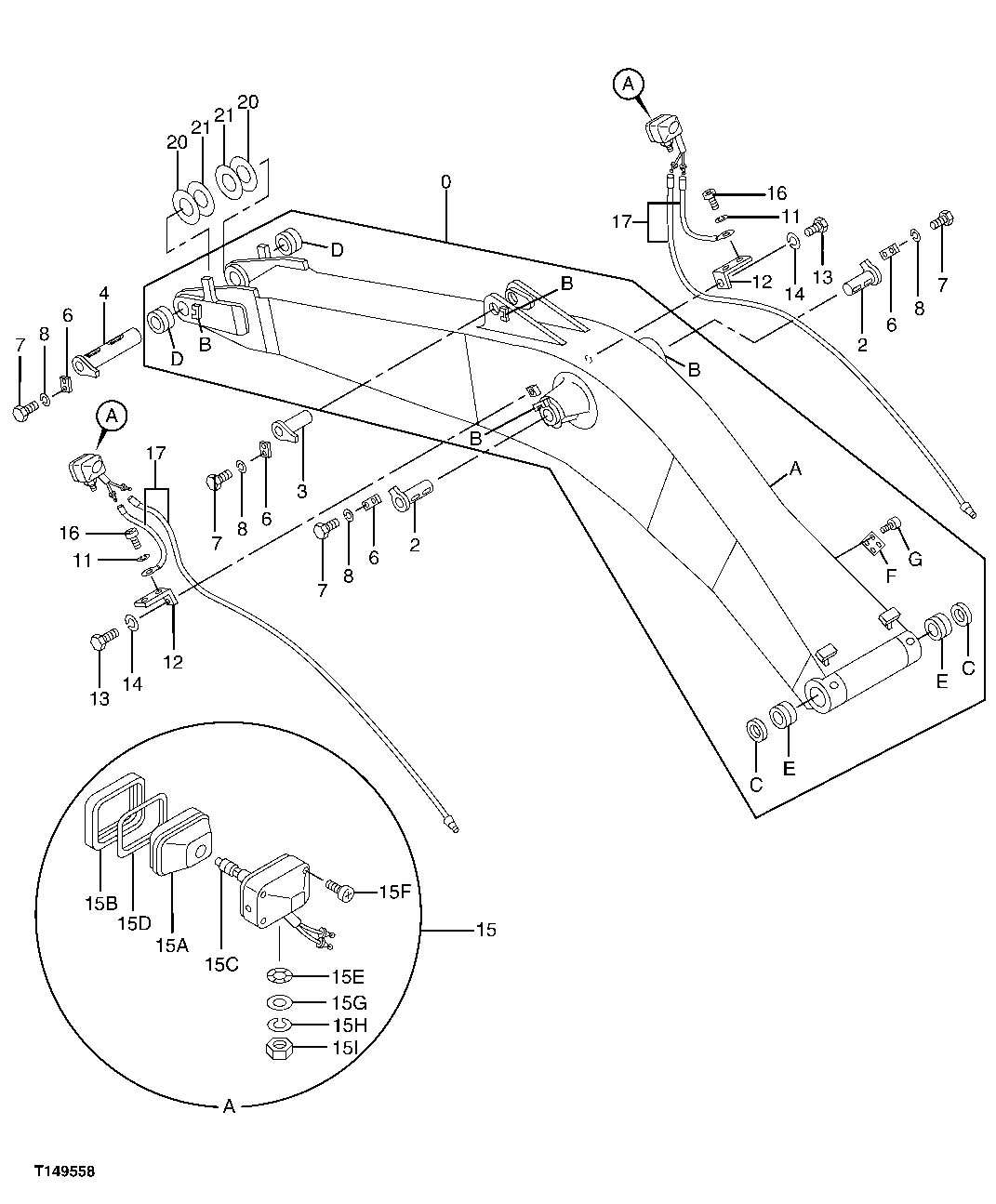

Запчасти John Deere 00C 254 - STANDARD, LONG, AND HEAVY DUTY BOOM 3344 BOOM

0

9213087

Excavator Boom

1шт.

9206138

Sideboom

For Heavy Duty Boom

1шт.

9223598

Sideboom

For Reinforced Heavy Duty Boom

1шт.

9219734J

Excavator Boom

10.0 M, Long Boom (SUB FOR 9219734 AND 5006761)

1шт.

0A

Excavator Boom

(NLA)

1шт.

Excavator Boom

10.0 M, Long Boom ( 5006761 NLA)

1шт.

0B

4379221

Stop

(SUB FOR TH4379221)

4шт.

0C

4251754

Seal

(SUB FOR TH4251754)

2шт.

0D

4448085

Bushing

2шт.

4612368

Bushing

For Reinforced Heavy Dut y Boom F/NR001 - F/NR004

2шт.

0E

3060122

Bushing

(SUB FOR TH3060122)

2шт.

0F

4453777

Plate

1шт.

0G

37H99

Screw

0.100" X 1/4"

4шт.

2

8067794

Pin Fastener

(SUB FOR TH8067794)

2шт.

3

8067795

Pin Fastener

(SUB FOR TH8067795)

1шт.

4

8067796

Pin Fastener

(SUB FOR TH8067796)

1шт.

TH8083225

Pin

For Reinforced Heavy Duty Boom

1шт.

6

4122729

Strap

(SUB FOR AT131696)

4шт.

7

19M7950

Cap Screw

M20 X 45

8шт.

8

12M7070

Lock Washer

20 mm

8шт.

11

12M7006

Lock Washer

6 mm

2шт.

12

4224631

Angle

(SUB FOR TH111685)

2шт.

13

J901425

Cap Screw

(SUB FOR TH104071)

2шт.

14

12H317

Lock Washer

9/16"

2шт.

15

4326800

Lamp

2шт.

15A

4326801

Lens

1шт.

15B

4326802

Frame

1шт.

15C

AT135758

Bulb

1шт.

15D

4326803

Gasket

1шт.

15E

4307026

Washer

(SUB FOR T144361)

1шт.

15F

37H19

Screw

(SUB FOR T144362 OR 4307027)

4шт.

15G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

15H

12H317

Lock Washer

9/16"

1шт.

15I

14M7345

Nut

M14 (SUB FOR J952014 ) (SUB FOR TH103791)

1шт.

16

21M7288

Screw

M6 X 10

2шт.

17

4252361

Wiring Harness

(SUB FOR TH4252361)

2шт.

19

4442549

Plate

For Reinforced Heavy Duty Boom

2шт.

20

4379154

Thrust Washer

(SUB FOR TH4379154)

2шт.

21

4379155

Thrust Washer

(SUB FOR TH4379155)

2шт.

23

4122729

Strap

1шт.

4387177

Plate

For Reinforced Heavy Duty Boom

1шт.

24

19M7950

Cap Screw

M20 X 45

2шт.

J912455

Bolt

For Reinforced Heavy Duty Boom

2шт.

25

12M7070

Lock Washer

20 mm

2шт.

12H234

Lock Washer

1" For Reinforced Heavy Duty Boom

2шт.

26

4387178

Shim

For Reinforced Heavy Du ty Boom Not Illustrated

1шт.

27

4387179

Shim

For Reinforced Heavy Du ty Boom Not Illustrated

1шт.

28

4450312

Stop

For Reinforced Heavy Duty Boom

1шт.

29

4295167

Cap Screw

For Reinforced Heavy Duty Boom

1шт.

30

14M7277

Nut

M20 For Reinforced Heavy Duty Boom

2шт.

35

4190261

Clip

(USE WITH 9219734J)(NOT ILLUSTRATED)

12шт.

36

19M8324

Cap Screw

M10 X 16 (SUB FOR J901016 ) (USE WITH 9219734J)(NOT ILLUSTRATED)

12шт.

37

12M7066

Lock Washer

10 mm (SUB FOR A590910 ) (USE WITH 9219734J)(NOT ILLUSTRATED)

12шт.
