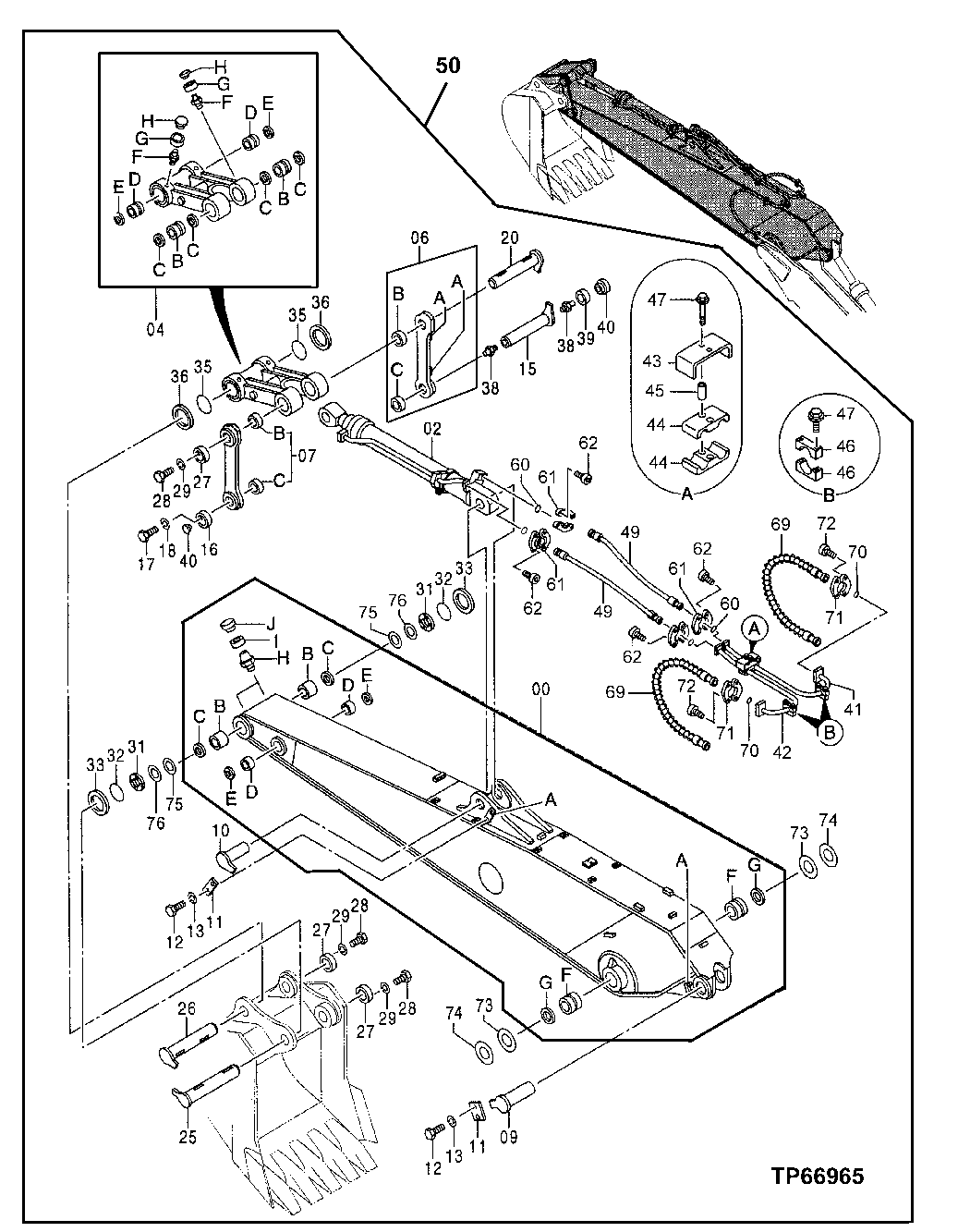

Запчасти John Deere 00C 252 - LONG ARM ASSEMBLY (5.4 M) 3340 EXCAVATOR FRAMES

0

9169577

Lift Arm

SUB FOR TH9169577

1шт.

0A

4379221

Stop

SUB FOR TH4379221

2шт.

0B

4400637

Bushing

SUB FOR TH4400637

2шт.

0C

4251752

Seal

SUB FOR AT202304

2шт.

0D

4267257

Bushing

SUB FOR TH4267257

2шт.

0E

4267832

Seal

SUB FOR TH4267832

2шт.

0F

4421175

Bushing

2шт.

0G

4251766

Seal

SUB FOR TH4251766

2шт.

0H

TH100074

Lubrication Fitting

2шт.

0I

4130686

Bushing

SUB FOR AT217082

2шт.

0J

4105912

Cap

SUB FOR AT217081

2шт.

2

4616304

Cylinder

SUB FOR TH4397518 OR 4397518JEX, REMAN

1шт.

4

9138476

Link

SUB FOR TH9138476

1шт.

4B

4267258

Bushing

SUB FOR TH4267258

2шт.

4C

4251752

Seal

SUB FOR AT202304

4шт.

4D

4267259

Bushing

SUB FOR TH4267259

2шт.

4E

4251212

Seal

SUB FOR AT202303

2шт.

4F

TH100074

Lubrication Fitting

4шт.

4G

4130686

Bushing

SUB FOR AT217082

4шт.

4H

4105912

Cap

SUB FOR AT217081

4шт.

6

9098931

Link

SUB FOR TH9098931

1шт.

6A

4267253

Stop

SUB FOR TH4267253

2шт.

6B

4246293

Bushing

SUB FOR TH4246293

1шт.

6C

4267756

Bushing

SUB FOR TH4267756

1шт.

7

9098932

Link

SUB FOR TH9098932

1шт.

7B

4246293

Bushing

SUB FOR TH4246293

1шт.

7C

4267756

Bushing

SUB FOR TH4267756

1шт.

9

8067795

Pin Fastener

SUB FOR TH8067795

1шт.

10

8049685

Pin Fastener

SUB FOR TH8049685

1шт.

11

4122729

Strap

SUB FOR AT131696

2шт.

12

19M7950

Cap Screw

M20 X 45

4шт.

13

12M7070

Lock Washer

20 mm

4шт.

15

8049686

Pin Fastener

SUB FOR TH8049686

1шт.

16

4267254

Stop

SUB FOR TH4267254

1шт.

17

J241645

Bolt

SUB FOR THM111645 OR M111645

3шт.

18

12H294

Lock Washer

5/8"

3шт.

20

8049687

Pin Fastener

SUB FOR TH8049687

1шт.

25

AT309641

Pin Fastener

SUB FOR TH8072004 OR 8072004

1шт.

26

8049689

Pin Fastener

SUB FOR TH8049689

1шт.

27

4393378J

Stop

SUB FOR TH4393378 OR 4393378

3шт.

28

J241645

Bolt

SUB FOR THM111645 OR M111645

9шт.

29

12H294

Lock Washer

5/8"

9шт.

31

4267235

Thrust Washer

SUB FOR TH4267235

2шт.

32

4087732

O-Ring

SUB FOR TH4087732

2шт.

33

4267255

Ring

SUB FOR TH4267255

2шт.

35

4074009

O-Ring

SUB FOR TH4074009

2шт.

36

4148825

Ring

SUB FOR TH4148825

2шт.

38

TH100074

Lubrication Fitting

2шт.

39

4130686

Bushing

SUB FOR AT217082

1шт.

40

4105912

Cap

SUB FOR AT217081

2шт.

41

8048381

Oil Line

SUB FOR TH8048381

1шт.

42

8048382

Oil Line

SUB FOR TH8048382

1шт.

43

4304481

Clamp

SUB FOR AT201755

1шт.

44

4337125

Clamp

SUB FOR TH4337125

2шт.

45

28H2611

Spacer

0.546" X 0.840" X 2"

2шт.

46

AT201796

Clamp

4шт.

47

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

19M8122

Cap Screw

M12 X 85

6шт.

49

4242436

Hydraulic Hose

SUB FOR TH4242436

2шт.

50

AT188514

Arm

WHOLE GOODS Includes Arm, Bucket Cylinder, Hoses and Linkage, Does Not Include Bucket

1шт.
