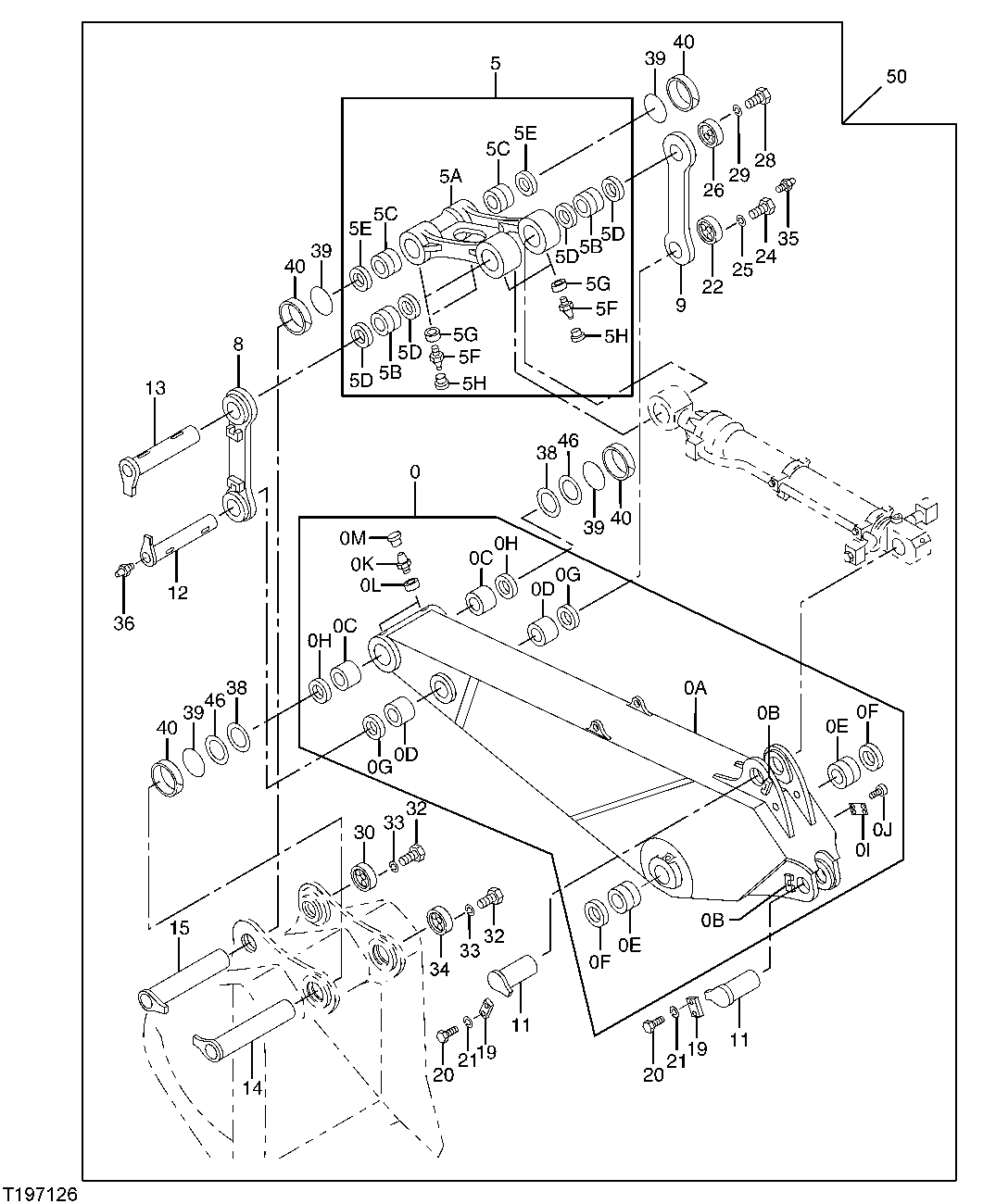

Запчасти John Deere 00C 251 - MASS EXCAVATING AND BULK EXCAVATING ARM 2.95M (CONTINUED) 3340 EXCAVATOR FRAMES

19

4122729

Strap

2шт.

20

19M7950

Cap Screw

M20 X 45

4шт.

21

12M7070

Lock Washer

20 mm

4шт.

22

4393378J

Stop

(SUB FOR 4393378)

1шт.

24

J241645

Bolt

(SUB FOR THM111645 OR M111645)

3шт.

25

12H294

Lock Washer

5/8"

3шт.

26

4393383

Stop

2шт.

28

19M7950

Cap Screw

M20 X 45

3шт.

29

12M7070

Lock Washer

20 mm

3шт.

30

4393381

Stop

For Mass Excavating Arm

2шт.

4387180

Stop

For Bulk Excavating Arm

2шт.

32

19M7950

Cap Screw

M20 X 45 For Mass Excavating Arm

6шт.

4295167

Cap Screw

For Bulk Excavating Arm

2шт.

33

12M7070

Lock Washer

20 mm For Mass Excavating Arm

6шт.

14M7277

Nut

M20 For Bulk Excavating Arm

4шт.

34

4393383

Stop

For Mass Excavating Arm

1шт.

4450312

Stop

For Bulk Excavating Arm

1шт.

35

TH100074

Lubrication Fitting

2шт.

38

4386485

Thrust Washer

2шт.

39

4487585

O-Ring

(SUB FOR 4247424, THIS APPLICATION)

4шт.

40

Ring

( 4252730 NLA)

4шт.

46

4386486

Thrust Washer

2шт.

50

AT188515

Arm

WHOLE GOODS (ASSEMBLY INCLUDES ARM, BUCKET CYLINDER, HOSES AND LINKAGE) (USE WITH MAS S EXCAVATING BOOM) (DOES NOT INCLUDE BUCKET )

1шт.
