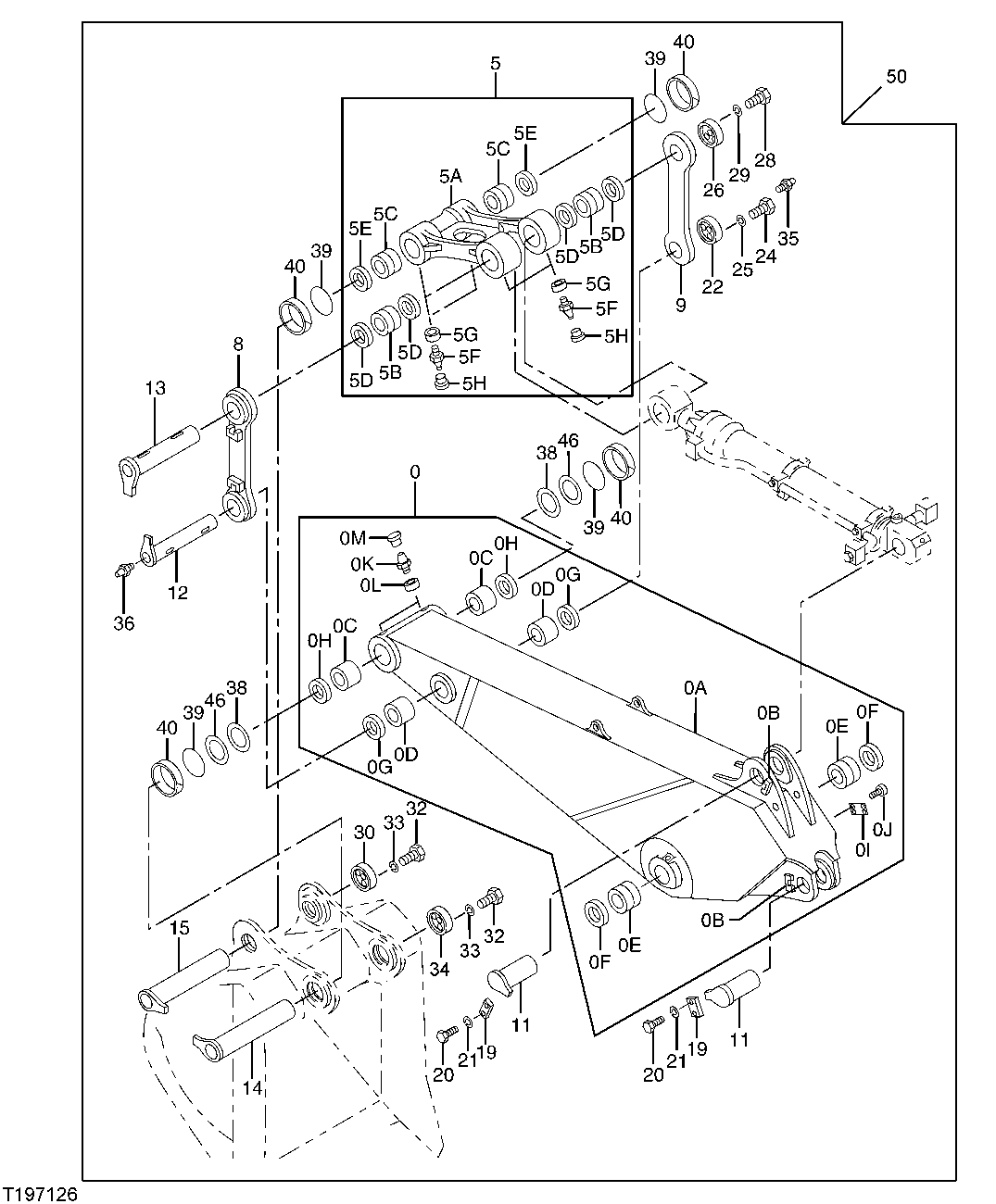

Запчасти John Deere 00C 250 - MASS EXCAVATING AND BULK EXCAVATING ARM 2.95M 3340 EXCAVATOR FRAMES

0

9213997

Arm

Mass Excavating Arm For Bulk Excavating Arm F/N:RB001-RB002

1шт.

9233515

Arm

Bulk Excavating Arm For Bulk Ex cavating Arm F/N:RB003 AND ABOVE

1шт.

0A

Arm

( 5004847 AND 5009215 NLA)

1шт.

0B

4379221

Stop

2шт.

0C

3074245

Bushing

Use With Mass Excavating Arm For B ulk Excavating Arm F/N:RB001-RB002

2шт.

3100789

Bushing

For Bulk Excavating Arm F/N:RB003 AND ABOVE

2шт.

0D

4129729

Bushing

2шт.

0E

4218719

Bushing

2шт.

0F

4251753

Seal

For Mass Excavating Arm

2шт.

4251766

Seal

For Bulk Excavating Arm

2шт.

0G

4251212

Seal

(SUB FOR AT202303)

2шт.

0H

4251766

Seal

2шт.

0I

Plate

( 4454761 NLA)

2шт.

0J

37H99

Screw

0.100" X 1/4"

4шт.

0K

TH100074

Lubrication Fitting

2шт.

0L

4130686

Bushing

1шт.

0M

4105912

Cap

2шт.

5

9206144

Link

For Mass Excavating Arm

1шт.

9205875

Link

For Bulk Excavating Arm

1шт.

5A

1029818

Link

For Mass Excavating Arm

1шт.

7041049

Link

For Bulk Excavating Arm

1шт.

5B

4234708

Bushing

2шт.

5C

4461278

Bushing

2шт.

5D

4251753

Seal

4шт.

5E

4251767

Seal

2шт.

5F

TH100074

Lubrication Fitting

4шт.

5G

4130686

Bushing

(SUB FOR AT217082)

4шт.

5H

4105912

Cap

(SUB FOR AT217081)

4шт.

8

8065547

Link

For Mass Excavating Arm

1шт.

8086908

Link

For Bulk Excavating Arm

1шт.

9

8065548

Link

For Mass Excavating Arm

1шт.

8085373

Link

For Bulk Excavating Arm

1шт.

11

8067795

Pin Fastener

2шт.

12

8067798

Pin Fastener

1шт.

13

8085461

Pin Fastener

(SUB FOR 8067801)

1шт.

14

8065105

Pin Fastener

For Mass Excavating Arm

1шт.

8091252

Pin

For Bulk Excavating Arm

1шт.

15

8085571

Pin Fastener

For Mass Excavating Arm

1шт.

8091253

Pin

For Bulk Excavating Arm

1шт.
