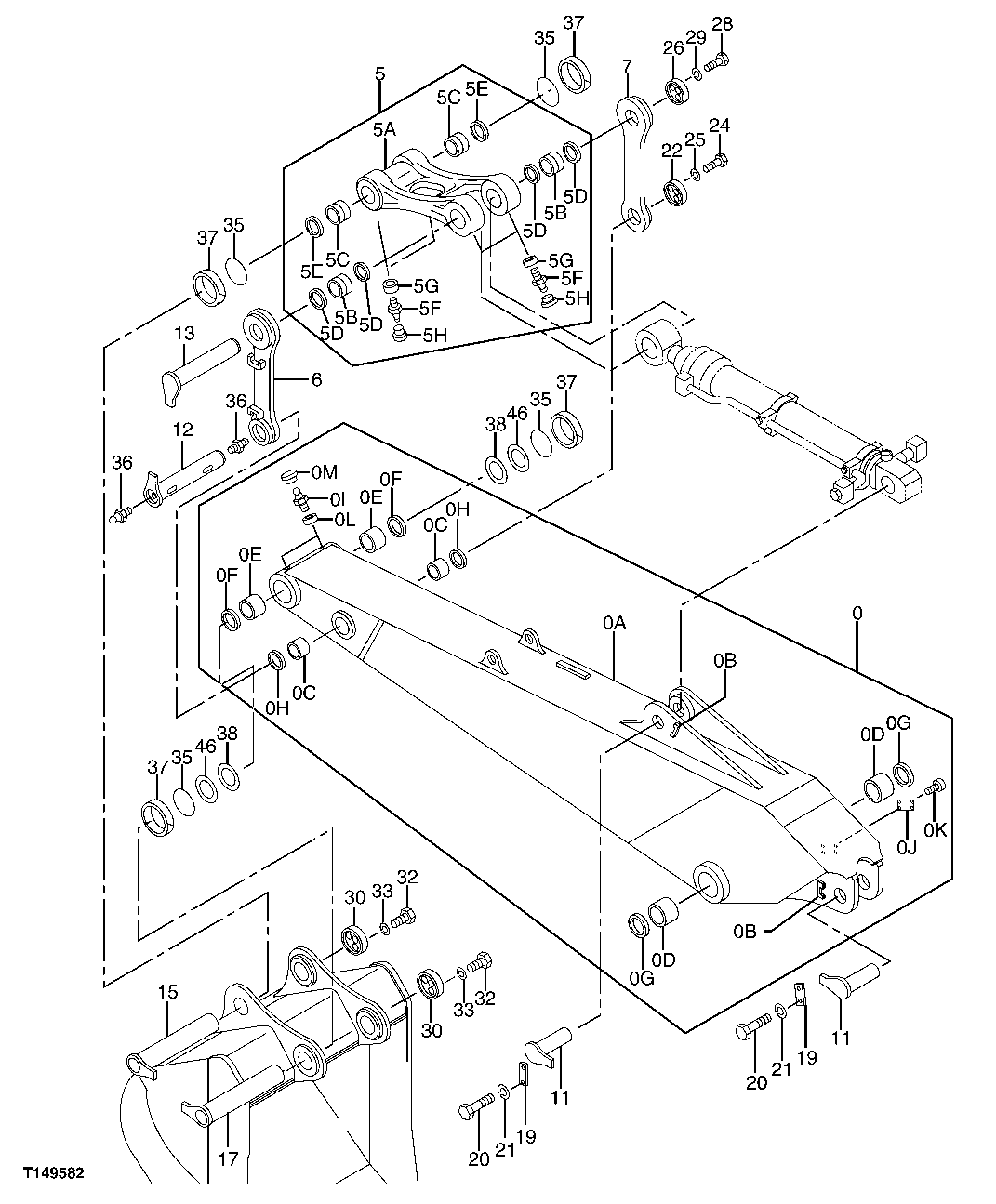

Запчасти John Deere 00C 249 - Semi-Long Arm 4.4 m 3340 EXCAVATOR FRAMES

0

9150449

Lift Arm

(SUB FOR TH9150449)

1шт.

0A

5005005

Arm

1шт.

0B

4379221

Stop

(SUB FOR TH4379221)

2шт.

0C

4129729

Bushing

(SUB FOR TH4129729)

2шт.

0D

4218719

Bushing

2шт.

0E

4332024

Bushing

2шт.

0F

4143624

Seal

(SUB FOR 4251207)

2шт.

0G

4251766

Seal

2шт.

0H

4251212

Seal

2шт.

0I

TH100074

Lubrication Fitting

2шт.

0J

Plate

( 4222972 NLA)

1шт.

0K

37H99

Screw

0.100" X 1/4"

4шт.

0L

4130686

Bushing

(SUB FOR AT217082)

2шт.

0M

4105912

Cap

(SUB FOR AT217081)

2шт.

5

9206144

Link

1шт.

5A

1029818

Link

1шт.

5B

4234708

Bushing

(SUB FOR TH4234708)

2шт.

5C

4461278

Bushing

2шт.

5D

4251753

Seal

(SUB FOR TH4251753)

4шт.

5E

4251767

Seal

(SUB FOR TH4251767)

2шт.

5F

TH100074

Lubrication Fitting

4шт.

5G

4130686

Bushing

(SUB FOR AT217082)

4шт.

5H

4105912

Cap

(SUB FOR AT217081)

4шт.

6

8065547

Link

(SUB FOR TH8065547)

1шт.

7

8065548

Link

(SUB FOR TH8065548)

1шт.

11

8067795

Pin Fastener

(SUB FOR TH8067795)

2шт.

12

8067798

Pin Fastener

(SUB FOR TH8067798)

1шт.

13

8085461

Pin Fastener

(SUB FOR TH8067801 AND 8067801)

1шт.

15

8085571

Pin Fastener

1шт.

17

8058964

Pin Fastener

(SUB FOR TH8058964)

1шт.

19

4122729

Strap

(SUB FOR AT131696)

2шт.

20

19M7950

Cap Screw

M20 X 45

4шт.

21

12M7070

Lock Washer

20 mm

4шт.

22

4393378J

Stop

(SUB FOR TH4393378 OR 4393378)

1шт.

24

J241645

Bolt

(SUB FOR THM111645 OR M111645)

3шт.

25

12H294

Lock Washer

5/8"

3шт.

26

4393383

Stop

1шт.

28

19M7950

Cap Screw

M20 X 45

3шт.

29

12M7070

Lock Washer

20 mm

3шт.

30

4393381

Stop

2шт.

32

19M7950

Cap Screw

M20 X 45

6шт.

33

12M7070

Lock Washer

20 mm

6шт.

35

4487585

O-Ring

(SUB FOR TH4247424 AND 4247424)

4шт.

36

TH100074

Lubrication Fitting

2шт.

37

Ring

( 4252730 NLA) (SUB FOR TH4252730)

4шт.

38

4379158

Thrust Washer

(SUB FOR TH4379158)

2шт.

46

4379157

Thrust Washer

(SUB FOR TH4379157)

2шт.

50

AT188513

Arm

WHOLE GOODS Includes Arm, Bucket Cylinder, Hoses and Linkage Does N ot Include Bucket Not Illustrated

1шт.
