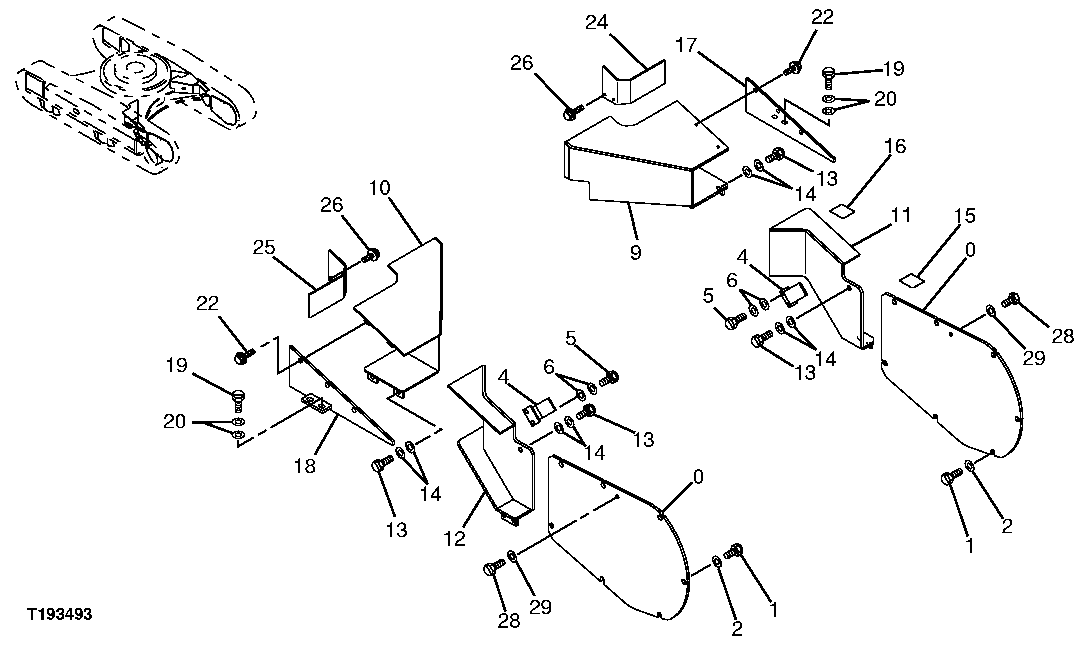

Запчасти John Deere 00C 16 - PROPEL HYDRAULIC LINES COVER 0260 AXLES, DIFF. AND SUSP. SYS. HYD. (INCL. FWD)

0

3091205

Cover

2шт.

1

4257968

Bolt

(SUB FOR AT202305)

14шт.

2

24M7338

Washer

17 X 30 X 3 mm

14шт.

4

9756131

Bracket

2шт.

5

19M8035

Cap Screw

M16 X 35

4шт.

6

24M7338

Washer

17 X 30 X 3 mm

8шт.

9

6019840

Cover

1шт.

6021470

Cover

1шт.

10

6019841

Cover

1шт.

6021479

Cover

1шт.

11

7039800

Cover

1шт.

7043553

Cover

1шт.

12

7039801

Cover

1шт.

7043554

Cover

1шт.

13

4257968

Bolt

(SUB FOR AT202305)

12шт.

4257968

Bolt

16шт.

14

24M7338

Washer

17 X 30 X 3 mm

24шт.

24M7338

Washer

17 X 30 X 3 mm

32шт.

15

4398794

Plate

2шт.

16

4398795

Plate

2шт.

17

8082865

Cover

1шт.

18

8082866

Cover

1шт.

19

4257968

Bolt

(SUB FOR AT202305)

4шт.

20

24M7338

Washer

17 X 30 X 3 mm

8шт.

22

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

6шт.

24

8060558

Cover

(SUB FOR TH8060558)

1шт.

25

8060559

Cover

(SUB FOR TH8060559)

1шт.

26

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

28

4257968

Bolt

(SUB FOR AT202305)

2шт.

29

24M7338

Washer

17 X 30 X 3 mm

2шт.
